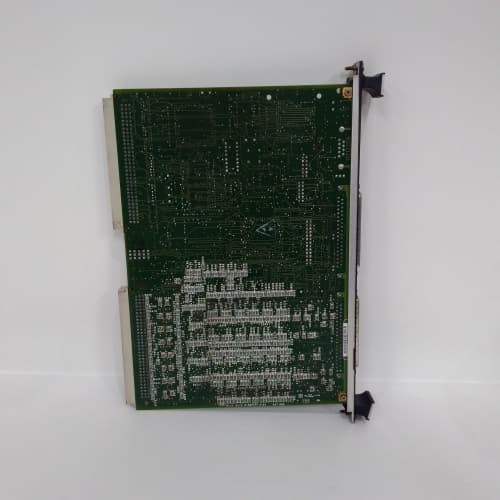

GE IS200VCRCH1B

Description

Product Description

GE IS200VCRCH1B is a critical communication and control module within the GE Speedtronic Mark VI gas/steam turbine control system. This module, designated as a VCRC (VME Rack Communication Controller), functions as the primary high-speed communication interface and data concentrator for a Mark VI control rack. The core function of the GE IS200VCRCH1B is to manage all data traffic between the various controller boards (like the VPRO, VMIC, or VCCC) within its VME rack and the rest of the turbine control network, including other racks, the HMI, and engineering workstations. It acts as the network gateway and traffic director for its rack, ensuring deterministic data exchange over the high-speed PDx (Process Data) network. The VCRC module is essential for the real-time coordination required for turbine protection and control. Selecting and properly configuring a compatible GE IS200VCRCH1B is a critical step in maintaining or repairing the communication integrity of a legacy Mark VI control system.

Product Parameters / Technical Specifications

• Manufacturer: GE (General Electric), now part of Emerson
• Series: Speedtronic Mark VI Turbine Control System
• Functional Designation: VME Rack Communication Controller (VCRC)
• Form Factor: A single-slot VME bus board.
• Communication Ports:
  • PDx Network: Multiple fiber-optic transceiver ports for connecting to the high-speed, deterministic Process Data network linking all Mark VI racks.
  • TCP/IP Network: An Ethernet port (likely 10/100BASE-T) for non-deterministic communication with the plant network, HMI, and engineering tools.
  • VME Backplane Interface: Connects to the rack’s VME bus to communicate with other controller and I/O processor boards in the same chassis.
• Processor: Contains an onboard processor to manage network protocols, data routing, and rack diagnostics.
• Status Indicators: Features numerous LEDs for power, network link/activity, fault status, and VME bus communication.

Advantages and Key Features

• Deterministic Network Performance: The PDx fiber-optic network managed by the VCRC provides guaranteed, high-speed data delivery critical for time-sensitive turbine protection and control loops.
• Centralized Rack Communication: Eliminates the need for each controller card to have its own network interface, simplifying rack architecture and centralizing communication management.
• Dual Network Role: Separates critical real-time I/O traffic (on PDx) from supervisory and configuration traffic (on Ethernet), enhancing security and performance for both.
• Comprehensive Diagnostics: The GE IS200VCRCH1B provides extensive diagnostic information on network health, packet errors, and rack status, which is vital for troubleshooting communication issues in a multi-rack system.
• Hot-Swappable (in Redundant Systems): In systems configured with redundant communication paths, a failed VCRC module can often be replaced without a full system shutdown.
• System Integration: Fully recognized and configurable within the Mark VI ToolboxST engineering software.

Application Cases in Industry

• Mark VI Controller Rack Communication: Serves as the communication hub for a rack containing triple modular redundant (TMR) controllers (VPROs) and I/O processors in a gas turbine control system.
• Multi-Rack System Coordination: Essential for synchronizing data between the main control rack, I/O expansion racks, and turbine interface racks in large, complex turbine installations.
• Legacy System Support and Upgrade: A key spare part for maintaining the operational availability of the large installed base of Mark VI-controlled turbines worldwide.

Comparison with Competing Products

Selection Suggestions and Precautions

1. Firmware Version Compatibility is Critical: The firmware on the GE IS200VCRCH1B must be compatible with the firmware versions running on the Mark VI controllers (VPRO, etc.) in the same rack and across the PDx network. Mismatched firmware is a primary cause of communication failure.
2. Verify VME Rack Compatibility: Ensure the module is designed for your specific Mark VI VME chassis type. While standard VME, there may be power or mechanical considerations.
3. PDx Network Topology Knowledge: Before replacing a VCRC, understand its role in the PDx network (ring, star configuration). Note the port connections (fiber types, which rack it connects to) to ensure correct re-cabling.
4. Configuration Backup and Restore: The VCRC holds configuration data (IP address, PDx node ID). Always attempt to read the configuration from the failed module or have a known-good backup from ToolboxST before installing a new IS200VCRCH1B. A blank module will not function correctly.
5. Static Discharge (ESD) Protection: Handle the board as a highly sensitive electronic component. Use a grounded wrist strap and an anti-static bag.
6. Sourcing from Specialized Legacy Suppliers: The Mark VI system is a legacy platform. Source the GE IS200VCRCH1B from vendors who specialize in Speedtronic systems and can verify firmware compatibility and basic functionality.
