GE IS200TVIBH2BBB

Description

Product Description

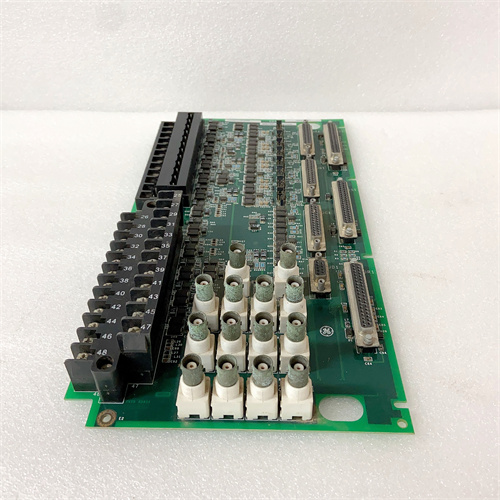

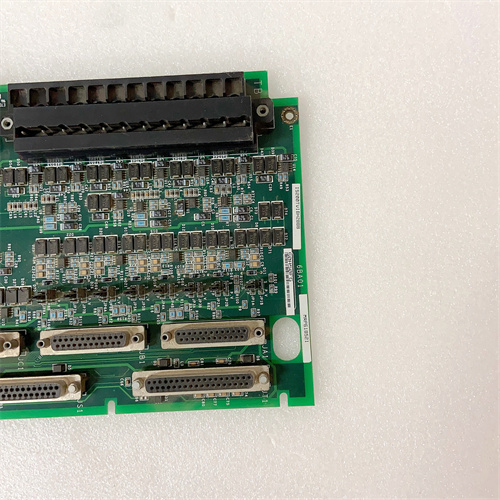

The GE IS200TVIBH2BBB is a specialized vibration monitor or terminal board designed as a critical component for GE’s Mark VI and Mark VIe Speedtronic turbine control systems. These systems are widely used for controlling gas and steam turbines in power generation applications worldwide. The “TVIB” designation in the model number indicates this is a Turbine Vibration monitoring board, specifically designed for interfacing with vibration sensors and processing vibration signals. The core function of the GE IS200TVIBH2BBB is to provide termination and signal conditioning for vibration monitoring circuits, processing signals from proximity probes and seismic sensors that monitor the mechanical health of turbine machinery. It conditions and filters raw vibration signals, converts them to standardized formats, and passes them to the main control system for monitoring, alarming, and protection functions. Engineered for the demanding environments of power generation facilities, the GE IS200TVIBH2BBB features robust construction, comprehensive diagnostic capabilities, and high reliability essential for continuous turbine operation.

Product Parameters

• Model Number: GE IS200TVIBH2BBB
• Type: Vibration Monitor / Terminal Board
• Series: GE Mark VI / Mark VIe Speedtronic
• Function: Vibration signal conditioning and termination
• Input Signals: Signals from proximity probes (eddy current) and seismic sensors
• Output Signals: Conditioned vibration signals to Mark VI controller
• Channels: Multiple channels for bearing vibration and shaft position monitoring
• Signal Processing: Filtering, amplification, demodulation of raw probe signals
• Isolation: Protection against electrical noise and transients
• Protection: Surge suppression, reverse polarity protection
• Mounting: Panel mount in turbine control cabinet
• Connectors: Terminal blocks for field wiring; backplane connection to controller
• Indicators: Status LEDs for power and channel health
• Operating Temperature: -30°C to +65°C
• Certification: CE, UL, CSA, ATEX (hazardous area approvals typical)

Advantages and Features

The primary advantage of the GE IS200TVIBH2BBB lies in its specialized design for turbine vibration monitoring applications. Using the GE IS200TVIBH2BBB, power generation facilities benefit from GE’s extensive turbine control expertise embedded in the board’s signal conditioning and protection circuitry. The board provides comprehensive signal processing for various vibration sensor types, eliminating the need for external signal conditioners. Built-in surge protection safeguards sensitive control electronics from transients induced in the power plant environment. The modular design of the GE IS200TVIBH2BBB allows for straightforward troubleshooting and replacement, minimizing turbine downtime during maintenance events. High-quality components and robust construction ensure accurate vibration measurement, which is critical for predictive maintenance and early detection of mechanical problems.

Application Cases in Application Fields

The precision and reliability of the GE IS200TVIBH2BBB make it essential in critical power generation applications requiring continuous vibration monitoring.

• Gas Turbine Power Plants: In a simple-cycle gas turbine plant, the GE IS200TVIBH2BBB interfaces with proximity probes monitoring gas turbine bearing vibrations, providing real-time data for early detection of developing mechanical issues.
• Combined-Cycle Facilities: At a large combined-cycle plant, multiple GE IS200TVIBH2BBB boards process vibration signals from both gas turbines and steam turbines.
• Steam Turbine Power Plants: In conventional steam plants, the board monitors turbine bearing vibrations and shaft position.
• Compressor Stations: On a gas pipeline centrifugal compressor driven by a GE turbine, the GE IS200TVIBH2BBB monitors compressor bearing vibrations.
• Cogeneration Plants: In industrial cogeneration facilities, the board provides continuous vibration monitoring for steam turbines.

Comparison with Competing Products

When compared to vibration monitor boards from competitors such as Siemens or ABB, the GE IS200TVIBH2BBB offers specific advantages for users invested in GE’s Speedtronic ecosystem. While generic signal conditioners could potentially interface with vibration sensors, the GE IS200TVIBH2BBB ensures proper integration with GE’s Mark VI controller architecture and diagnostic systems. For facilities operating GE turbines, the GE IS200TVIBH2BBB represents the manufacturer-approved solution, ensuring compliance with OEM specifications and service recommendations. The board’s proven track record in thousands of turbine installations worldwide gives it a level of field validation that generic signal conditioners cannot match.

Selection Suggestions and Precautions

When selecting the GE IS200TVIBH2BBB for your application, first verify the specific revision level and compatibility with your Mark VI or Mark VIe rack and controller firmware. Ensure the GE IS200TVIBH2BBB is correctly configured for your specific vibration sensor types (proximity probes, seismic sensors) and measurement ranges. When installing the board, follow GE’s recommended wiring practices precisely, including proper shielding and grounding of sensor cables to prevent noise pickup that could corrupt vibration signals. Pay careful attention to the torque specifications for terminal block connections, as loose connections can cause intermittent signals. Before commissioning after replacement, perform complete channel verification and calibration checks to verify proper operation and signal integrity. For critical turbines, maintain a spare GE IS200TVIBH2BBB board on hand to minimize downtime in case of failure.
