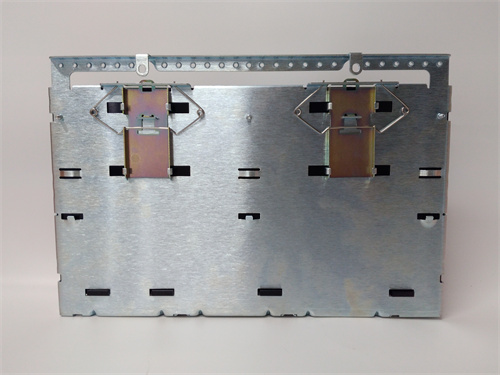

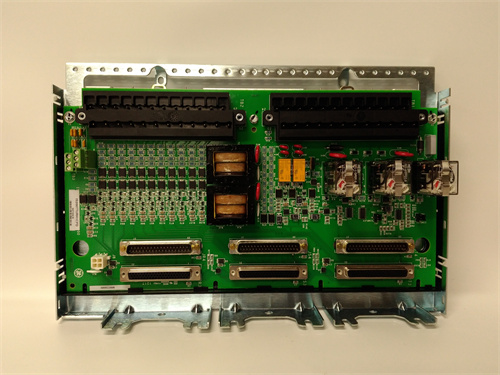

GE IS200TTURH1CFD

Description

Product Description

GE IS200TTURH1CFD is a highly specialized turbine supervisory interface module for the GE Mark VIe Speedtronic control system. This module, designated as a TTUR (Turbine Temperature and Speed Input), is engineered to interface directly with critical sensors that monitor the mechanical health and rotational dynamics of a steam or gas turbine. The primary function of the GE IS200TTURH1CFD is to provide the signal conditioning, isolation, and data conversion for key parameters such as turbine speed (via magnetic pickups), eccentricity (rotor bow), and shell expansion (differential position). It serves as the intelligent front-end that digitizes these low-level analog and frequency signals for use by the Mark VIe controller in protection, sequencing, and condition monitoring algorithms. The reliability of modules like the IS200TTURH1CFD is paramount for preventing catastrophic mechanical damage. For protection engineers, the correct configuration and operation of the GE IS200TTURH1CFD is essential for safe turbine startup and continuous operation.

Product Parameters / Technical Specifications

• Manufacturer: GE (General Electric), now part of Emerson
• Series: Mark VIe Speedtronic Turbine Control System
• Functional Designation: Turbine Speed, Eccentricity, and Expansion Input Module (TTUR)
• Input Types: A multi-function module typically handling:
  • Speed Inputs: Accepts raw signals from magnetic pickups (MPUs) for turbine and/or generator rotor speed.
  • Eccentricity Input: Accepts a signal from an eccentricity probe (typically a proximity probe) measuring rotor bow during startup.
  • Shell Expansion Input: Accepts a signal from a linear variable differential transformer (LVDT) or similar sensor measuring casing growth.
• Signal Conditioning: Provides specific conditioning for each signal type: amplification/filtering for MPUs, demodulation for proximity probes, and excitation/scaling for LVDTs.
• Isolation: Features high-grade isolation between channels and from the system logic to ensure signal integrity and safety.
• Communication: Interfaces with the Mark VIe controller via the system’s backplane or dedicated communication network.
• Configuration: Fully configured and scaled within the Mark VIe ToolboxST engineering software.
• Diagnostics: Includes comprehensive self-diagnostics and sensor health monitoring (e.g., broken wire detection, signal validity).

Advantages and Key Features

• Integrated Mechanical Protection: Consolidates several critical turbine mechanical protection inputs into a single, system-integrated module, simplifying cabinet design and improving reliability.
• High-Fidelity Signal Processing: Engineered to accurately process low-level, noise-sensitive signals from proximity probes and MPUs in the electrically harsh environment of a power plant.
• Deterministic Data Delivery: Provides fast, predictable update rates for critical protection parameters like overspeed and eccentricity, which are essential for trip functions.
• Advanced Diagnostics: Continuously monitors sensor and channel health. Can detect probe gaps, shorted sensors, open wires, and signal loss, providing early warnings to operators.
• Seamless System Integration: As a native Mark VIe component, the GE IS200TTURH1CFD is fully recognized in ToolboxST, allowing for centralized configuration, alarming, and historical data trending alongside all other control parameters.
• Hot-Swappable Design: Supports replacement without a full system shutdown in configured systems, aiding in maintenance and availability.

Application Cases in Industry

• Turbine Supervisory Instrumentation (TSI): The core application for the IS200TTURH1CFD is as part of the TSI system within the Mark VIe, providing inputs for:
  • Overspeed Protection: Primary speed input for the trip system.
  • Eccentricity Monitoring: Ensures rotor bow is within limits during turbine slow roll and startup to prevent rubs.
  • Casing Expansion Monitoring: Tracks thermal growth to ensure proper clearances and alignment.
• Generator Monitoring: Can be used for generator speed and related mechanical measurements.
• Critical Compressor Monitoring: In turbine-driven compressor applications, it monitors speed and vibration-related parameters for mechanical protection.

Comparison with Competing Products

Selection Suggestions and Precautions

1. Exact Model and Suffix Verification: The suffix (H1CFD) is critical and defines the specific sensor types, input ranges, and connector configurations. It must match the original system design and the sensors installed in the field.
2. Sensor Compatibility and Calibration: The module must be configured in ToolboxST for the exact sensor models being used (e.g., specific MPU part number, probe gap for eccentricity). Incorrect sensor parameters will lead to inaccurate readings.
3. Proper Sensor Installation & Cabling: The performance of this module is entirely dependent on proper sensor installation (e.g., MPU gap, probe mounting) and the use of high-quality, double-shielded coaxial cable for all probe signals. Poor cabling is the leading cause of noise-related issues.
4. Functional Testing is Mandatory: After installation or replacement, each channel (speed, eccentricity, expansion) must be functionally tested according to plant procedures. This often involves simulating known inputs and verifying the readings in the HMI.
5. Understand the Protection Scheme: Know how the outputs from this module are used. Is the speed channel the primary trip input? Is eccentricity a permissive only, or also an alarm? This dictates the criticality of the module’s health.
6. Sourcing from Speedtronic Specialists: Given its specialized role, source the GE IS200TTURH1CFD from suppliers with proven expertise in Mark VIe TSI systems who can confirm the module’s configuration suffix and provide basic testing.
