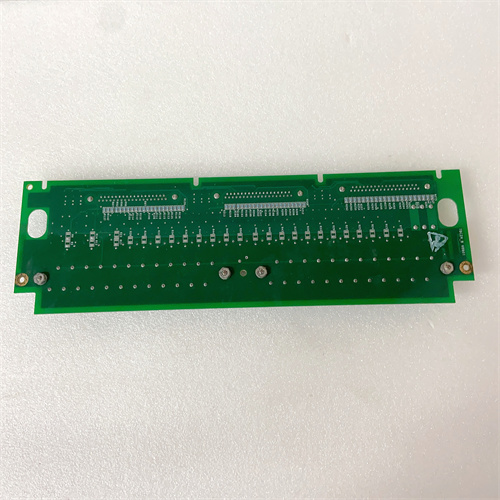

GE IS200TTURH1CCC S1DF00Z

Description

Product Description

The GE IS200TTURH1CCC is a critical turbine control interface module, specifically a Turbine Temperature Unit (TTUR) board for the GE Mark VI and Mark VIe gas/steam turbine control systems. This module serves as a dedicated signal conditioning and processing unit for temperature inputs, primarily from thermocouples (TCs) monitoring critical turbine components. The GE IS200TTURH1CCC is responsible for converting the low-level millivolt signals from multiple thermocouples—measuring parameters like exhaust temperature, bearing metal temperature, and wheelspace temperature—into digitized, scaled values for the turbine controller. Its high accuracy, noise immunity, and diagnostic capabilities are essential for both performance optimization and protection of multi-million dollar turbine assets. The suffix S1DF00Z indicates specific firmware and hardware revision details for this particular variant.

Product Parameters

• Product Type: Turbine Temperature Input Module (TTUR).
• System Compatibility: Designed for specific slots in GE Mark VI/Mark VIe turbine control cabinets.
• Primary Function: Conditions, isolates, digitizes, and linearizes signals from multiple thermocouples.
• Input Channels: Typically handles a high density of thermocouple inputs (e.g., 16 or 32 channels) on a single module.
• Thermocouple Types: Compatible with standard types such as J, K, E, T, and R/S for high-temperature exhaust measurement.
• Cold Junction Compensation (CJC): Includes highly accurate built-in CJC for precise absolute temperature calculation.
• Communication: Interfaces with the turbine’s main processor (e.g., a PMCI) via the controller’s backplane or high-speed I/O network.
• Diagnostics: Continuous monitoring for thermocouple wire break (open circuit), short circuits, and module health.
• Isolation: Provides channel-to-channel and channel-to-system isolation to protect the control system from ground loops and noise.

Advantages and Key Features

• High-Density Temperature Monitoring: A single GE IS200TTURH1CCC module can monitor dozens of critical temperature points, optimizing space within the control cabinet and simplifying wiring marshalling.
• Extreme Accuracy and Stability: Engineered for the demanding environment of turbine control, it provides precise and drift-free measurements, which are critical for accurate temperature trending, performance calculations (e.g., heat rate), and protective algorithms.
• Advanced Diagnostic Capabilities: Actively detects and reports sensor failures (open/short TC). This allows for predictive maintenance—replacing a failing thermocouple before it provides bad data that could cause a nuisance trip or hide a real over-temperature condition.
• Seamless Integration with Turbine Control Logic: The digitized temperature values are directly available to the Mark VIe control application for use in sequencing (e.g., during start-up), closed-loop control (exhaust temperature control), and high-level protective trips (over-temperature).
• Robust Industrial Design: Built to withstand the high electromagnetic interference (EMI), vibration, and temperature variations found in a turbine control enclosure.

Application Case Studies

• Gas Turbine Exhaust Temperature Control: Multiple IS200TTURH1CCC modules process signals from dozens of thermocouples in the turbine exhaust duct (TTXD). The controller uses the averaged and validated temperatures from these modules to adjust fuel flow, maintaining optimal efficiency and emissions while protecting against overtemperature.
• Steam Turbine Bearing and Wheelspace Monitoring: The module reads thermocouples embedded in main bearing babbit and between turbine wheel stages. Early detection of rising bearing temperature or excessive wheelspace temperature by the TTUR module can trigger alarms or trips to prevent catastrophic mechanical damage.
• Combined Cycle Plant Performance Monitoring: In a Heat Recovery Steam Generator (HRSG), the module interfaces with thermocouples measuring critical gas and steam temperatures. This data is used for efficiency calculations and to ensure the HRSG operates within its design limits.

Comparison with Competing Products

The GE IS200TTURH1CCC is a proprietary component of the GE Mark VIe ecosystem. Its functional equivalents are the dedicated temperature input modules within other OEM turbine control systems, such as Woodward NetCon or Siemens T3000 temperature cards. Compared to using generic PLC thermocouple input modules, the TTUR module is application-optimized with higher channel density, superior noise rejection specifically for turbine environments, and deep integration with the turbine’s protection and sequencing software. Third-party or generic modules lack the pre-engineered diagnostics, validation, and support for this critical function. Its key advantage is its guaranteed performance and single-source responsibility within the turbine control package.

Selection Suggestions and Precautions

• Selection Suggestion: The GE IS200TTURH1CCC S1DF00Z is selected exclusively as a like-for-like replacement spare part for a failed module in an existing GE Mark VI/Mark VIe system. Selection is based on the turbine’s control drawing and the specific rack/slot identification.
• Precautions:
  1. Exact Replacement Verification: This part number is highly specific. You must verify it is the correct spare for the exact turbine model, controller version, and slot location. Using an incompatible module can cause communication failure or erroneous temperature readings.
  2. Thermocouple Type Configuration: The module must be configured (via the turbine’s ToolboxST software) to match the thermocouple type (J, K, etc.) used on each channel. Installing a replacement board requires loading the correct configuration from a system backup.
  3. Wiring Integrity: When replacing the module, inspect the thermocouple wiring and terminal blocks for corrosion or damage. A new module will immediately flag existing wiring problems. Use only approved thermocouple extension wire and proper grounding practices.
  4. Calibration Post-Replacement: While the module itself is digitally calibrated, it is a best practice to verify the temperature readings from key points (e.g., a reference exhaust thermocouple) against other indicators after replacement to ensure the entire measurement loop is correct. This is a task for qualified turbine control technicians.
