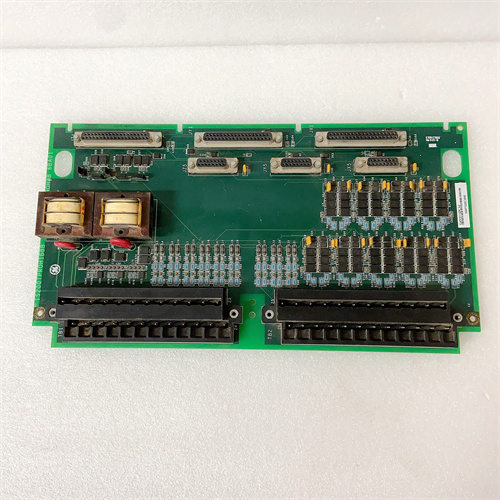

GE IS200TRPAH2AHE

Description

Product Description

GE IS200TRPAH2AHE is a critical analog input terminal board designed for the GE (now part of Emerson) Mark VIe Speedtronic turbine control system. This component, designated as a TRPA terminal board, serves as the essential physical and electrical interface between the turbine’s field wiring and the system’s I/O packs. The primary function of the GE IS200TRPAH2AHE is to provide secure screw-terminal connections for field devices, such as resistance temperature detectors (RTDs) and thermocouples, while also housing the necessary signal conditioning and isolation circuitry. It translates the low-level millivolt signals from temperature sensors into a robust format that can be accurately read by the connected analog input module (e.g., a TCIO pack). The reliability and accuracy of the IS200TRPAH2AHE are paramount for safe turbine operation, as it directly feeds temperature data used for critical control loops and protective trips. For system maintenance, ensuring the integrity of terminal boards like the GE IS200TRPAH2AHE is a fundamental task.

Product Parameters / Technical Specifications

• Manufacturer: GE (General Electric) / Emerson
• Series: Mark VIe Speedtronic Turbine Control System
• Functional Designation: Terminal Board for Analog Temperature Inputs (RTD/Thermocouple)
• Input Type: Configured to accept signals from specific temperature sensors, most commonly:
  • RTDs: 100 Ohm Platinum (PT100) in 2, 3, or 4-wire configuration.
  • Thermocouples: Types J, K, T, E, etc., with internal or external cold-junction compensation.
• Channels: Provides termination points for multiple temperature input channels (e.g., 8, 16).
• Signal Conditioning: Includes circuitry for sensor excitation (for RTDs), noise filtering, and isolation.
• Connections: Features high-density, screw-type terminal blocks for reliable field wiring.
• Interface: Connects directly to a specific Mark VIe I/O pack (e.g., an IS200TCIOHxxx analog input pack) via a pinned connector on the board’s rear.
• Mounting: Designed to be installed within a Mark VIe I/O rack assembly.

Advantages and Key Features

• High-Accuracy Measurement: The built-in conditioning circuitry is optimized for low-level temperature signals, minimizing error and ensuring measurement precision critical for thermal protection.
• Sensor-Specific Configuration: The board is specifically designed for temperature inputs, providing the correct excitation, compensation, and scaling for the selected sensor type (RTD or T/C).
• Electrical Isolation: Provides channel-to-channel and system-to-field isolation to prevent ground loops, noise interference, and to limit fault propagation, which is essential in high-noise turbine environments.
• Simplified Wiring and Maintenance: Offers a clear, organized, and labeled terminal strip for all field sensor connections, making installation, loop checking, and troubleshooting significantly easier.
• Integrated System Component: Fully recognized within the Mark VIe ToolboxST engineering software. The board type and sensor details are configured here, ensuring the controller correctly interprets the incoming data.
• Robust Construction: Built to withstand the vibration and temperature variations present in a turbine control cabinet.

Application Cases in Industry

• Gas Turbine Temperature Monitoring: The primary application for the GE IS200TRPAH2AHE is interfacing with exhaust thermocouples (Tx) and wheel space temperature sensors for performance calculation and overheating protection.
• Bearing Temperature Monitoring: Connects to RTDs embedded in turbine and generator bearing babbit for direct temperature monitoring to prevent catastrophic bearing failure.
• Steam Turbine Monitoring: Used for shell metal temperatures, bearing temperatures, and steam chest temperatures to ensure safe thermal expansion and operation.
• Auxiliary System Monitoring: Interfaces with temperature sensors on lube oil, hydraulic fluid, and cooling water systems.

Comparison with Competing Products

Selection Suggestions and Precautions

1. Exact Model and Suffix Verification: The suffix (H2AHE) is critical. It defines the specific sensor type (e.g., PT100, Thermocouple Type K), wiring configuration, and possibly the number of channels. Using an incorrect suffix will result in inaccurate readings.
2. Sensor Type Matching: You must select the GE IS200TRPAH2AHE variant that exactly matches the type of temperature sensors (RTD or specific T/C type) installed in your field. The conditioning circuitry is not universal.
3. I/O Pack Compatibility: This terminal board must be paired with the correct analog input I/O pack (e.g., a TCIO module). Verify compatibility using the Mark VIe Hardware Configuration Guide.
4. Wiring Practices: For thermocouples, use the correct matching extension wire. For RTDs, use 3-wire or 4-wire connections to compensate for lead resistance, especially over long distances. Ensure terminals are tightened to the proper torque.
5. Software Configuration is Mandatory: The board’s configuration in ToolboxST (sensor type, engineering units, alarm limits) must match its physical hardware configuration. A mismatch here is a common source of measurement error.
6. Sourcing: Due to its role in critical temperature protection, source this terminal board from reputable suppliers who understand Mark VIe systems and can confirm the board’s configuration suffix.
