GE IS200TRLYH1BGF

Description

Product Description

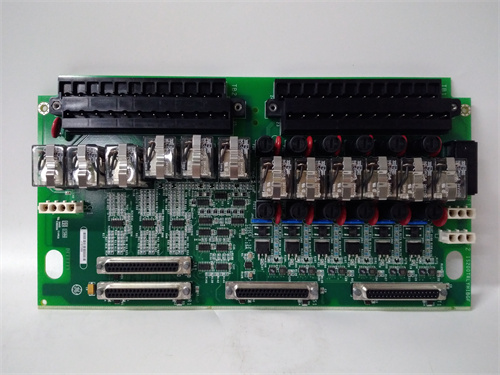

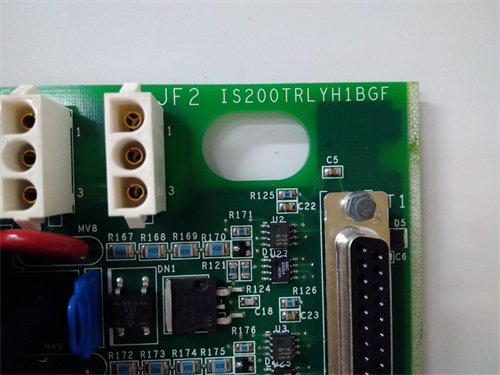

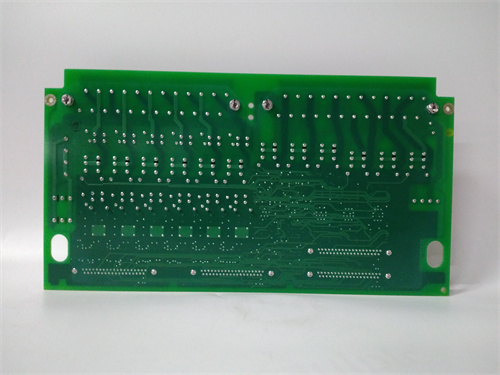

The GE IS200TRLYH1BGF is a critical component within a GE (General Electric) Mark VI or Mark VIe gas/steam turbine control system. This module is a Terminal Relay Board or Trip Relay Board, designed to provide isolation, signal conditioning, and physical relay outputs for critical trip and permissive signals in the turbine protection circuitry. The GE IS200TRLYH1BGF serves as an interface between the low-voltage electronic control signals from the turbine’s main processor and the higher-voltage circuits that directly actuate safety devices, such as fuel shut-off valves, breaker trip coils, and alarm annunciators. Its primary function is to ensure that safety commands are executed reliably and with complete electrical isolation to protect sensitive control electronics. The specific board, GE IS200TRLYH1BGF (https://www.example-link-ge-product.com), is an essential part of the system’s final output stage for protective actions. The reliability and fail-safe design of the GE IS200TRLYH1BGF are paramount for the safe shutdown and protection of high-value turbine assets.

Product Parameters / Technical Specifications

• Manufacturer: GE (General Electric)
• Product Family: Mark VI / Mark VIe Turbine Control System
• Module Type: Terminal Relay Board / Trip Relay Board
• Series: IS200 Series (Mark VIe I/O and Termination Boards)
• Part Number: IS200TRLYH1BGF
• Primary Function: Provides isolated relay outputs for turbine trip and permissive circuits.
• Relay Specifications:
  • Number of Relays: Contains multiple electromechanical or solid-state relays (e.g., 4, 8, or 16).
  • Contact Configuration: Typically Form-C (SPDT – Single Pole Double Throw) contacts.
  • Contact Rating: Rated for specific voltage and current (e.g., 30V DC, 2A or 250V AC, 5A).
• Input Signals: Receives low-voltage DC control signals (e.g., 24V DC or 125V DC) from the turbine protection controller (TPC) or other control modules.
• Output Circuits: Drives higher-power field devices such as solenoid valves, motor contactors, and annunciator panels.
• Isolation: Provides high-voltage isolation (e.g., 1500V AC) between the control side and the field contact side to prevent fault propagation.
• Status Indication: May include LED indicators for each relay coil status (energized/de-energized).
• Mounting: Designed to mount on a DIN rail or directly into a terminal board assembly within the turbine control cabinet.

Advantages and Key Features

• Critical Safety Interface: The GE IS200TRLYH1BGF is a key component in the safety instrumented function (SIF) of the turbine, providing the final, reliable hardware link for executing trip commands.
• High Electrical Isolation: Robust isolation protects the sensitive turbine controller from voltage transients, ground faults, and noise originating in the field power circuits.
• Fail-Safe Design: The relay state (energized or de-energized for trip) is designed to fail in a safe condition (typically de-energized to trip) upon loss of control power.
• Proven Reliability: Built with industrial-grade components to withstand the vibration, temperature, and continuous service demands of a turbine environment.
• System Integration: As a genuine GE component, it is designed to fit mechanically and interface electrically with the specific terminal boards and wiring harnesses of the Mark VIe system.

Application Cases in Various Fields

• Gas Turbine Power Plants: Providing the isolated relay outputs to trip the fuel gas shut-off valves and generator breaker in the event of an overspeed, high exhaust temperature, or vibration trip.
• Steam Turbine Protection: Actuating the trip-and-throttle valve or the emergency stop valve on a steam turbine based on signals from bearing temperature or axial displacement monitors.
• Aeroderivative Turbine Packages: Serving as the interface for critical shutdown commands on LM2500 or LM6000 units used for power generation or mechanical drive.
• Compressor Stations: Used in turbine-driven compressor protection systems to isolate the process gas in case of a unit fault.
• Turbine Control Retrofit: Replacing older relay cabinets with a modern, integrated Mark VIe system that includes boards like the IS200TRLYH1BGF.

Comparison with Competing Products

The GE IS200TRLYH1BGF is a proprietary component within the GE Mark VIe ecosystem. Its direct competitors are similar trip relay interface modules supplied with other OEM’s turbine control systems, such as Siemens (for SGT turbines) or Woodward (NetCon). Its primary advantage is its certified compatibility and designed integration with the rest of the GE turbine control hardware and software. Compared to using generic industrial relay modules, this board is purpose-built for the specific voltage levels, form factor, and safety requirements of turbine trip circuits, with traceability and support from GE.

Selection Suggestions and Precautions

• Selection Advice: The GE IS200TRLYH1BGF is selected only as a direct replacement for a failed board in an existing Mark VI/Mark VIe turbine control system. Selection is dictated 100% by the system’s bill of materials (BOM) and the exact part number on the failed unit. It is not a configurable or universal component.
• Precautions:
  1. Exact Part Number Match: The suffix “H1BGF” is critical. Even boards with a similar base number may have different relay counts, coil voltages, or contact ratings. Using an incorrect version can lead to system maloperation.
  2. High-Voltage Hazard: The field contact side of this board may be connected to medium-voltage (e.g., 125V DC) control circuits. Only qualified personnel following strict safety procedures (LOCKOUT/TAGOUT) should handle or replace this board.
  3. Wiring Verification: Before removing the old board, meticulously label every wire. Re-installation must match the original wiring exactly. Refer to the system’s wiring diagrams.
  4. Functional Testing: After replacement, the specific trip circuits driven by this board must be functionally tested as part of the turbine’s protection system validation before the unit is returned to service.
  5. Source from Authorized Channels: Due to its critical safety function, procure this board from GE or an authorized GE turbine parts distributor to ensure authenticity and reliability.
