GE IS200TPROH1BBB

Description

Product Description

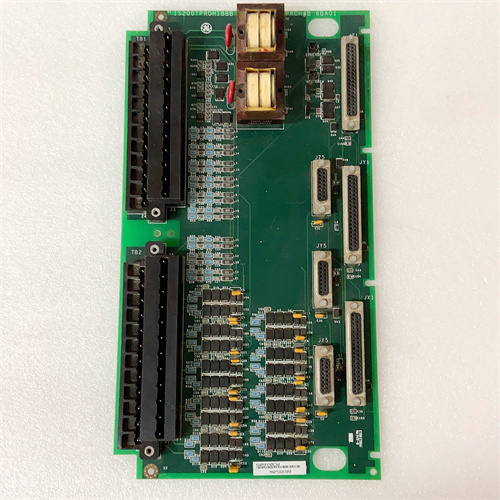

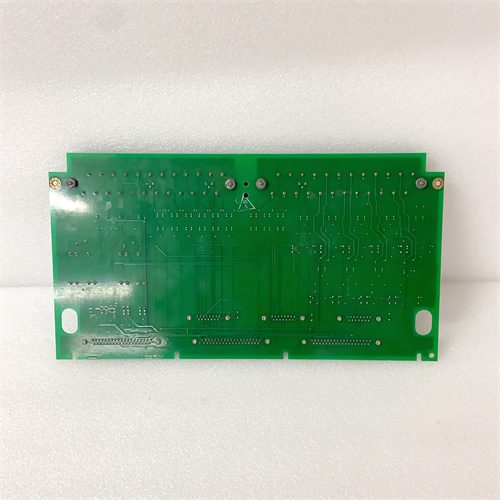

The GE IS200TPROH1BBB is a critical Termination Panel I/O (Input/Output) board for the GE Mark VI gas/steam turbine control system. This module is not a standard PLC card but a specialized interface assembly that serves as the primary termination and signal conditioning point between field wiring and the Mark VI’s central control modules. The GE IS200TPROH1BBB provides screw terminals for connecting hundreds of field devices (sensors, switches, solenoids) and includes essential components like fuses, resistors, and isolation circuitry to protect the sensitive control electronics. It plays a vital role in organizing field wiring, providing test points, and ensuring signal integrity for the entire turbine protection and control system. For maintenance of GE Speedtronic systems, the GE IS200TPROH1BBB is a key focus for troubleshooting and wiring verification. Technical drawings for this termination assembly can be found at [Insert Link Here].

Product Parameters

• Product Type: Termination Panel / I/O Interface Board (TPRO – Termination Panel I/O)
• System Series: GE Mark VI Speedtronic Turbine Control.
• Primary Function: Acts as the main field wiring interface, providing termination, fusing, isolation, and signal conditioning for analog and digital I/O.
• Terminations: Contains a high density of screw terminals organized into groups for:
  • Analog Inputs (e.g., 4-20mA, thermocouples, RTDs)
  • Digital Inputs (e.g., 24/48/125 VDC contact inputs)
  • Analog Outputs (e.g., 4-20mA)
  • Digital Outputs (relay or transistor outputs)
• Integrated Components:
  • Fuses: Protective fuses for analog and digital circuits.
  • Isolation: Optical or magnetic isolation barriers for signal groups.
  • Resistors/Circuitry: Pull-up/pull-down resistors, current-limiting resistors, and filtering networks.
  • Test Points: Standardized test points for signal measurement during commissioning and maintenance.
• Form Factor: A large, vertical printed circuit board assembly that mounts in a dedicated location within the Mark VI turbine control cabinet.
• Interconnections: Connects via internal ribbon cables or harnesses to other Mark VI boards (e.g., IS200 DSPX boards, power supplies).

Advantages and Features

• Centralized and Organized Interface: The GE IS200TPROH1BBB consolidates termination for a vast number of field signals into one organized, labeled assembly, simplifying cabinet layout, wiring, and troubleshooting.
• Enhanced System Protection: Integrated fuses and isolation protect the expensive downstream control modules (like DSP processors) from damage caused by field wiring faults, overvoltage, or ground loops.
• Signal Integrity and Conditioning: Provides proper termination and conditioning (e.g., for RTD or thermocouple inputs) to ensure accurate measurements reach the control system.
• Ease of Maintenance: Clearly labeled terminals and accessible test points allow technicians to safely isolate, measure, and troubleshoot field circuits without disturbing the core logic boards.
• System-Specific Design: As a genuine GE IS200TPROH1BBB assembly, it is engineered to match the exact electrical and mechanical requirements of the Mark VI system, ensuring compatibility and reliable performance.
• Robust Construction: Built to withstand the vibration and temperature environment of a turbine control cabinet.

Application Cases in Key Fields

• Gas Turbine Power Generation: Serving as the central termination hub for all critical protection and control signals (vibration, temperature, pressure, flame detection, valve feedback) on GE Frame 5, 6, 7, and 9F/9H class turbines.
• Steam Turbine Control: Used in combined-cycle or standalone steam turbine installations controlled by a Mark VI system.
• Mechanical Drive Applications: Found in turbine control systems for compressors in pipeline stations or LNG plants.
• Aeroderivative Turbines: Used in control packages for LM series turbines.
• Turbine Retrofit/Upgrade Projects: A key component when modernizing older turbine controls with a Mark VI system.

Comparisons with Competing Products

The GE IS200TPROH1BBB is unique to the GE Speedtronic Mark VI ecosystem. Its closest competitors are termination boards from other turbine OEMs:

• Vs. Siemens (SPPA-T2000 or T3000) Termination Cabinets: Siemens uses a different, often more distributed termination philosophy. The GE IS200TPROH1BBB represents a centralized approach characteristic of the Mark series design.
• Vs. Woodward (NetCon) Termination Panels: Woodward systems use their own proprietary designs. The GE board is specific to the electrical and mechanical interface of the Mark VI.
• Vs. Generic Terminal Blocks and DIN-rail Components: While generic components could be assembled to perform a similar function, they would lack the system-specific layout, integrated fusing and conditioning, and pre-engineered interconnections of the GE IS200TPROH1BBB. Using non-OEM parts would be error-prone and could compromise system safety and certification.
  There is no direct aftermarket equivalent; replacement requires the specified GE part.

Selection Suggestions and Precautions

• Selection Advice:
  1. Exact Part Number Matching is Critical: The suffix (BBB) denotes a specific revision with precise components and wiring. Using an incorrect revision can lead to miswiring, loss of protection, or system malfunction.
  2. Verify for Specific Turbine Model: Ensure the GE IS200TPROH1BBB is specified for your exact turbine model (e.g., Frame 7EA) and control system serial number.
  3. Complete a Wiring Audit: Before replacing the board, meticulously document or verify the wiring against the official GE wiring diagram (often a DWG file) to ensure all field connections are restored correctly.
  4. Source from Authorized Turbine Service Providers: Purchase from GE or a highly reputable, specialized turbine parts supplier. Counterfeit or poorly refurbished boards pose a severe risk to turbine safety and reliability.
• Important Precautions:
  1. High Voltage and Hazardous Energy: The board interfaces with field wiring that may carry hazardous voltages. Work must be performed only by qualified personnel following strict lock-out/tag-out (LOTO) procedures for the turbine.
  2. Electrostatic Discharge (ESD): Handle the printed circuit board assembly using proper ESD precautions.
  3. Fuse Rating Verification: When replacing fuses on the board, always use the exact type, size, and rating specified by GE. Substituting an incorrect fuse can compromise the protection scheme.
  4. Torque Specifications: Adhere to the specified torque values for all termination screws to ensure reliable connections without damaging the terminals.
  5. Post-Replacement Testing: After installation, a comprehensive loop check and calibration of all connected field instruments is mandatory to ensure system accuracy and safety before the turbine is returned to service.
