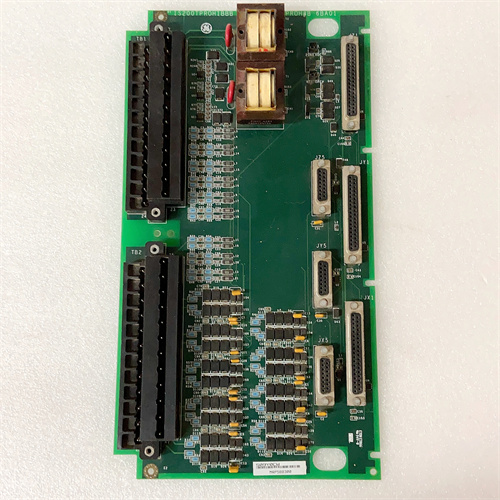

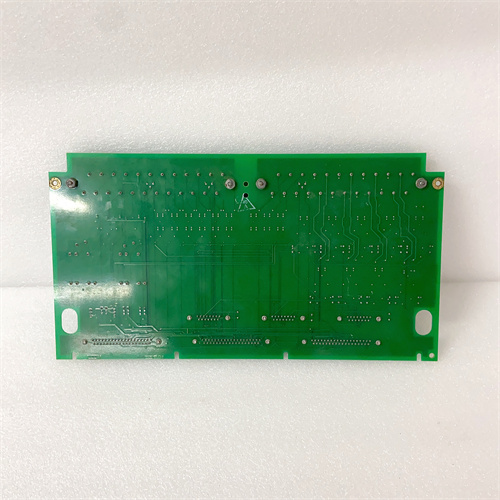

GE IS200TPROH1BBB

GE IS200TPROH1BBB is a protective termination board for GE Mark VI Speedtronic turbine control systems, serving as a core interface for emergency overspeed and synchronization protection in gas/steam turbine operations. GE IS200TPROH1BBB delivers critical signals (speed, temperature, generator voltage, bus voltage) to the VPRO module, forming an independent safety protection system that coordinates with TREx/TRPx terminal boards to control up to three trip solenoids.

Inquiry now
Manufacturer:

Our extensive catalogue, including , is available now for dispatch to the worldwide.
  • Email: jiedong@sxrszdh.com
  • Phone / Wechat：+86 15340683922

Description

Product Description

GE IS200TPROH1BBB is a protective termination board for GE Mark VI Speedtronic turbine control systems, serving as a core interface for emergency overspeed and synchronization protection in gas/steam turbine operations. GE IS200TPROH1BBB delivers critical signals (speed, temperature, generator voltage, bus voltage) to the VPRO module, forming an independent safety protection system that coordinates with TREx/TRPx terminal boards to control up to three trip solenoids. GE IS200TPROH1BBB uses barrier – style terminals (two 48 – pin blocks) and a DC – 37 pin connector for secure wiring, with MOVs and relays providing surge protection and emergency trip capabilities. It supports two potential transformers (PTs) and three PPRO I/O packs, handling 3 analog current inputs and 9 thermocouple inputs for exhaust over – temperature monitoring. GE IS200TPROH1BBB integrates seamlessly with Mark VI I/O and VPRO modules, and its LED indicators enable quick fault detection of power, signal status, and relay activation, reducing downtime in power plant environments. GE IS200TPROH1BBB’s robust PCB design and industrial – grade components ensure reliable performance in harsh turbine control conditions, and its pluggable terminal blocks simplify installation and maintenance during system upgrades or repairs.

Product Parameters

Parameter Details
Module Type Protective termination board (GE Mark VI Speedtronic compatible)
Core Function Emergency overspeed/synchronization protection, trip solenoid control, signal termination, VPRO signal interface
Key Interfaces 2×48 – pin barrier terminals; DC – 37 pin connector; 3 PPRO I/O pack slots; 2 PT (potential transformer) inputs
I/O Capacity 3 analog current inputs; 9 thermocouple inputs; controls up to 3 trip solenoids
Protection Components Metal oxide varistors (MOVs), emergency trip relays
Power Supply 125VDC (trip solenoid circuit); 24VDC (logic/control)
Operating Environment -30°C to +65°C; 5%–95% non – condensing RH
Storage Environment -40°C to +85°C
Form Factor Standard Mark VI PCB; ~1.5kg; 43.3cm×28cm×3.5cm
Certifications CE, RoHS compliant; meets IEC 61508 safety standards
Diagnostic Tools LED indicators for power, signal, relay, and module status
System Compatibility GE Mark VI Speedtronic; VPRO modules; TREx/TRPx terminal boards

Advantages and Features

  1. Independent Safety Protection: GE IS200TPROH1BBB forms a standalone overspeed/synchronization protection system with VPRO, enhancing turbine safety beyond basic controller logic.
  2. Comprehensive Signal Handling: It supports PTs, thermocouples, and current inputs, covering critical turbine monitoring needs (exhaust temp, generator voltage).
  3. Surge & Fault Protection: MOVs and relays on GE IS200TPROH1BBB guard against voltage surges and enable fast emergency trip activation.
  4. Simplified Wiring & Maintenance: Barrier terminals and pluggable design of GE IS200TPROH1BBB reduce installation time and wiring errors.
  5. Seamless Mark VI Integration: GE IS200TPROH1BBB works with VPRO, TREx/TRPx, and Mark VI I/O, ensuring system – wide coordination.
  6. Quick Diagnostics: LED indicators on GE IS200TPROH1BBB allow instant identification of power, signal, or relay faults, cutting troubleshooting time.

Application Cases in Application Fields

  • Gas Turbine Emergency Protection (Combined Cycle Plant): GE IS200TPROH1BBB monitored exhaust temperature via 9 thermocouples and triggered a trip within 100ms during an over – temperature event, preventing turbine damage and avoiding a 500k USD production loss.
  • Steam Turbine Synchronization Protection: It provided generator voltage/bus voltage signals to VPRO, enabling backup synchronization checks and preventing unsynchronized grid connection in a coal – fired power plant.
  • Turbine Trip Solenoid Control (Petrochemical Refinery): GE IS200TPROH1BBB coordinated with TREx/TRPx boards to control 3 trip solenoids, ensuring a fail – safe shutdown during a lubrication system failure, protecting critical turbine components.
  • Power Plant Retrofit (Mark VI Upgrade): It replaced legacy termination boards in a 20 – year – old gas turbine system, integrating with existing VPRO modules and reducing wiring complexity by 40% while improving protection reliability.

Comparisons with Competing Products

Parameter GE IS200TPROH1BBB Siemens S7 – 400 F – DO Terminal Board ABB AC800M Safety Termination Module
Core Function Mark VI – optimized overspeed/synchronization protection; trip solenoid control Basic safety I/O termination; no turbine – specific protection Safety I/O termination (SIL 3 compliant); limited trip control
I/O Capacity 9 thermocouples, 3 current inputs, 3 trip solenoids 16 digital outputs; no thermocouple/current inputs 8 digital inputs/outputs; 4 analog inputs
Protection Features MOV surge protection; emergency trip relays; VPRO integration Overcurrent protection only; no surge/relay trip Basic surge protection; no dedicated trip logic
Turbine Compatibility GE Mark VI Speedtronic (gas/steam turbines) Limited turbine control integration ABB AC800M only; no Mark VI compatibility
Termination Style 48 – pin barrier terminals; pluggable Screw terminals; non – pluggable Spring – clamp terminals; pluggable
Legacy Support Works with Mark VI VPRO/TREx/TRPx No legacy Siemens turbine control support No legacy ABB turbine module integration
Cost – Effectiveness High (turbine – specific protection, plug – and – play Mark VI integration) Medium (requires extra protection hardware) Medium (proprietary safety ecosystem premium)

Selection Suggestions and Precautions

Selection Suggestions

  • Choose GE IS200TPROH1BBB for Mark VI Speedtronic systems needing independent overspeed/synchronization protection and trip solenoid control in gas/steam turbines.
  • Prefer it for applications requiring thermocouple/current input handling and seamless VPRO/TREx/TRPx integration.

Precautions

  • Ensure GE IS200TPROH1BBB is paired with compatible VPRO modules and TREx/TRPx terminal boards for proper trip solenoid control.
  • Do not exceed 125VDC for trip solenoid circuits on GE IS200TPROH1BBB to prevent relay/module damage.
  • Use #18 AWG wire for barrier terminal connections on GE IS200TPROH1BBB to meet current – carrying and connection reliability requirements.
  • Regularly inspect MOVs and relays on GE IS200TPROH1BBB for signs of wear to maintain surge protection and emergency trip functionality.
