GE IS200TBCIH2CAA

Description

Product Description

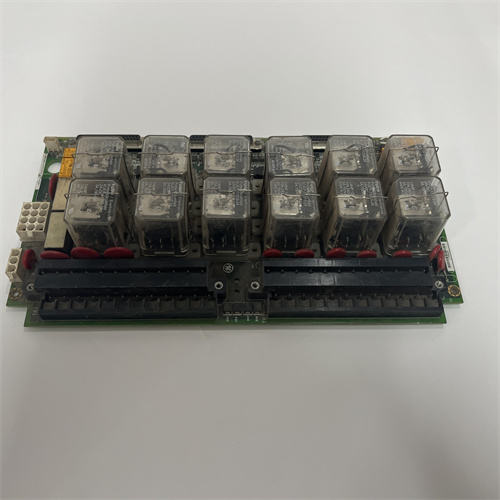

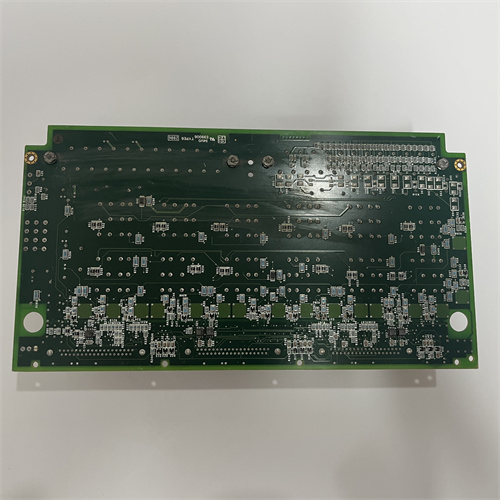

GE IS200TBCIH2CAA is a fundamental communication and control interface board within the GE Mark VIe Speedtronic turbine control system. This module, known as a Terminal Board Controller I/O (TBCI), acts as the critical communication gateway and local controller for a bank of I/O modules within a Mark VIe rack. The primary function of the GE IS200TBCIH2CAA is to manage all data exchange between the field I/O modules (connected to its associated terminal boards) and the central VCMI (Versatile Controller Module, Integrated) over the system’s high-speed PDx (Process Data) network. It handles I/O scanning, data preprocessing, and provides a critical layer of control and diagnostics. Essentially, the IS200TBCIH2CAA is the intelligent supervisor for a group of I/O points, offloading tasks from the main controller and ensuring deterministic, high-speed data acquisition and output execution. The selection and proper configuration of a GE IS200TBCIH2CAA board is a foundational step in designing a reliable and responsive Mark VIe control rack.

Product Parameters / Technical Specifications

• Manufacturer: GE (General Electric), now part of Emerson
• Series: Mark VIe Speedtronic Turbine Control System
• Functional Designation: Terminal Board Controller I/O (TBCI)
• Communication Ports:
  • PDx Network: High-speed fiber optic ports for deterministic communication with the Mark VIe controller (VCMI) and other TBCIs.
  • I/O Bus: Connects to multiple I/O packs (e.g., analog, digital, communication) via a local backplane or ribbon cables.
• Processor: Contains an embedded processor to manage I/O scanning and communication protocols.
• I/O Capacity: Designed to support a specific number and type of I/O packs within its assigned rack or assembly.
• Status Indicators: Features multiple LEDs for power, network status, fault indications, and communication activity.
• Configuration: Programmed and configured via the Mark VIe ToolboxST engineering software. Its firmware and I/O database are integral to the system application.

Advantages and Key Features

• Deterministic, High-Speed I/O Management: Provides guaranteed scan times for I/O points under its control, which is essential for fast-acting turbine protection and control loops.
• Distributed Processing Architecture: Offloads I/O handling from the central VCMI, allowing the main controller to focus on complex control algorithms and improving overall system performance and responsiveness.
• Robust Fiber Optic Communication: Uses noise-immune fiber optic links (PDx network) for communication with the controller, ensuring data integrity in the electrically noisy environment of a power plant.
• Comprehensive Local Diagnostics: The GE IS200TBCIH2CAA continuously monitors the health of itself and the I/O packs under its supervision, providing detailed fault information to the main controller and HMI.
• Hot-Swappable Design: In systems designed for high availability, the TBCI and its associated I/O can often be replaced without shutting down the entire turbine control system.
• Integrated System Component: Fully recognized and configured within the ToolboxST environment, ensuring seamless integration of hardware and software.

Application Cases in Industry

• Gas Turbine Control Racks: Serves as the I/O controller for a dedicated rack managing fuel valve positioning, flame detection, exhaust temperature monitoring, and vibration inputs.
• Steam Turbine Control Assemblies: Manages I/O for governor valve control, steam chest pressure, bearing temperatures, and speed sensing in a steam turbine control cabinet.
• Auxiliary System Control (BOP): Can be used in Balance of Plant systems to control and monitor lube oil units, hydraulic power units, or cooling systems with high-speed I/O requirements.
• Compressor Control: Manages I/O for turbine-driven compressors, handling anti-surge valve control and process parameter monitoring.

Comparison with Competing Products

Selection Suggestions and Precautions

1. Exact Model and Revision Matching: The suffix (H2CAA) is critical and denotes the hardware revision, firmware compatibility, and possibly supported I/O types. It must match the system’s configuration. An incompatible TBCI may not communicate or may cause system faults.
2. Verify Rack and I/O Pack Compatibility: The GE IS200TBCIH2CAA is designed for specific Mark VIe rack models (e.g., IC69xxxx) and a defined set of I/O packs. Consult the Mark VIe Hardware Configuration Guide to ensure compatibility with your existing hardware.
3. Firmware Version Synchronization: The TBCI’s firmware version must be compatible with the version running on the main VCMI controller and the engineering software (ToolboxST). Mismatched firmware is a common cause of communication failure.
4. Application Configuration is Mandatory: A new or replacement IS200TBCIH2CAA is essentially blank. It must have the correct I/O configuration and application database downloaded from a ToolboxST project file that matches the physical I/O installed in its rack.
5. Static Discharge (ESD) Protection: Handle the board as a sensitive electronic component. Use a grounded wrist strap and anti-static packaging.
6. Sourcing from Specialized Vendors: Given its central role in I/O management, source this module from suppliers with proven expertise in Mark VIe systems who can provide testing certification and ensure firmware revision compatibility.
