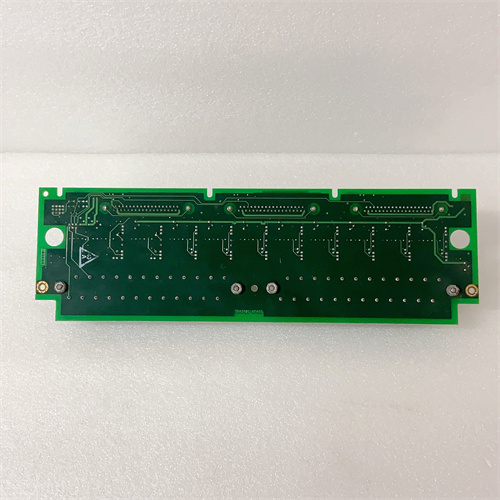

GE IS200TBAIH1C

Description

Product Description

The GE IS200TBAIH1C is an essential Terminal Board designed for interfacing analog input signals with the GE Mark VI and Mark VIe distributed control systems. This board acts as the critical physical interface between field wiring from analog sensors and the intelligent I/O packs that process the data. The primary function of the GE IS200TBAIH1C is to provide a robust, screw-terminal connection point for field devices such as thermocouples, RTDs (Resistance Temperature Detectors), and milliamp (4-20mA) transmitters, while also housing the necessary signal conditioning and isolation circuitry. For control system engineers and technicians, properly installing and configuring the IS200TBAIH1C is fundamental to ensuring accurate and reliable measurement of process variables like temperature, pressure, and flow. This terminal board is a key component in creating a scalable and maintainable I/O architecture. You can find detailed wiring diagrams and installation guidelines on the product resource page for the GE IS200TBAIH1C. The design of the IS200TBAIH1C focuses on signal integrity, ease of maintenance, and seamless integration with the wider Mark VIe I/O system.

Product Parameters/Key Specifications

• Manufacturer: GE Industrial Systems (General Electric)
• Series: Mark VI / Mark VIe Speedtronic Turbine Control System
• Function: Terminal Board for Analog Inputs (TBAI)
• Compatible I/O Pack: Designed to connect directly to a specific Analog Input I/O Pack, such as the IS200AIBGH1A.
• Signal Types Supported: Typically supports a variety of analog input types, configurable per channel, including:
  • Thermocouples (Types J, K, T, E, etc.)
  • RTDs (2-wire, 3-wire, or 4-wire Pt100, Pt1000)
  • Millivolt signals
  • 4-20mA current loop inputs (often with a precision shunt resistor)
• Channel Count: Provides a specific number of isolated analog input channels (e.g., 16 channels).
• Isolation: Provides channel-to-channel and channel-to-system isolation to prevent ground loops and noise interference, which is critical for accurate low-level signal measurement.
• Termination: Features high-quality screw terminals for secure field wiring connections.
• Diagnostic LEDs: Includes LEDs for board power and status.

Advantages and Key Features

• Flexible Signal Conditioning: The IS200TBAIH1C can be configured via jumpers or the associated I/O pack’s software to accept different sensor types on a per-channel basis, offering great flexibility.
• High Noise Immunity: The built-in isolation and filtering on each channel protect sensitive analog measurements from electrical noise prevalent in industrial environments like power plants.
• Excellent Accuracy: Designed to maintain signal integrity with minimal introduction of error, ensuring precise temperature and process measurement for critical control and protection algorithms.
• Easy Maintenance and Wiring: The clear terminal labeling and accessible screw terminals simplify installation, troubleshooting, and sensor replacement without disturbing the electronics in the I/O pack.
• Hot-Swappable Design: When used in a supported architecture, the terminal board and its I/O pack can be replaced without shutting down the entire controller, minimizing system downtime.
• Seamless System Integration: As a native GE component, it guarantees mechanical fit, electrical compatibility, and software recognition within the ToolboxST configuration environment.

Application Cases in Industry

The IS200TBAIH1C is deployed wherever precise analog sensing is required in a GE Mark VI/e system.

• Turbine Temperature Monitoring: The most common application is interfacing with thermocouples installed in turbine exhaust, bearing housings, and compressor stages, as well as RTDs for winding and lube oil temperatures.
• Process Pressure and Flow Monitoring: Connecting 4-20mA transmitters from pressure transducers, flow meters, and level gauges throughout a power generation plant or mechanical drive facility.
• Auxiliary System Monitoring: Used in balance-of-plant systems to monitor cooling water temperature, fuel gas pressure, and vibration transducer outputs (where conditioned to a 4-20mA signal).
• System Retrofits and Expansions: A fundamental part of adding new measurement points to an existing turbine control system during upgrades or plant expansions.

Comparison with Competing Products

• Vs. Direct Wiring to I/O Pack: The GE IS200TBAIH1C separates the field wiring connections from the sensitive electronics. This is superior to direct wiring, as it protects the expensive I/O pack from damage during maintenance and allows for easier troubleshooting.
• Vs. Generic Terminal Blocks: While generic terminal blocks provide connection points, they lack the integrated signal conditioning, isolation, and dedicated configuration jumpers that the IS200TBAIH1C provides for analog signals. Using generic blocks would require external signal transducers and isolators.
• Vs. Other GE Terminal Boards: GE offers different terminal boards for different functions (e.g., IS200TBCIH1C for contact inputs, IS200TBAOH1B for analog outputs). The IS200TBAIH1C is specifically optimized for analog input signals and is not interchangeable with boards meant for digital or output signals.
• Vs. Competing OEM I/O Systems (Allen-Bradley, Siemens): Each major OEM has its own analog input terminal hardware (e.g., Allen-Bradley 1492 terminal blocks, Siemens SM331 front connectors). These are not mechanically or electrically compatible; the IS200TBAIH1C is exclusive to the GE Mark VI/e system architecture.

Selection Suggestions and Precautions

1. Verify Exact I/O Pack Compatibility: The terminal board must be matched precisely with its corresponding I/O Pack module (e.g., AIBG). Confirm the compatibility in the system’s hardware configuration manual. Using an incorrect pairing will result in non-operation.
2. Plan Sensor Configuration Before Wiring: Before connecting field wires, determine the sensor type (TC type, RTD wiring, mA) for each channel and set the appropriate hardware jumpers or DIP switches on the IS200TBAIH1C accordingly. Incorrect jumper settings will cause measurement errors.
3. Follow Proper Wiring Practices: Use shielded, twisted-pair cables for analog signals. Connect the shield to the designated ground terminal on the IS200TBAIH1C (usually at one end only) to minimize noise. Adhere to specified torque values for terminal screws.
4. Consider Intrinsic Safety (IS) Requirements: For sensors in hazardous areas, the IS200TBAIH1C alone is not an IS barrier. You must use external certified isolators or barriers between the sensor and the terminal board.
5. Label All Wires and Channels: Clearly label each wire at the terminal and document the channel assignment in the control system software. This is critical for efficient long-term maintenance and troubleshooting.
6. Source for Correct Revision: Ensure you are sourcing the correct hardware revision (H1C). While a different revision may physically fit, there could be subtle differences in jumper configurations or component ratings that affect performance.
