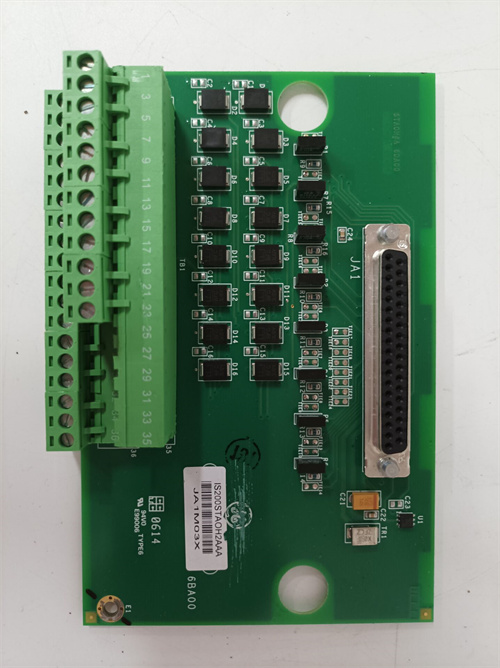

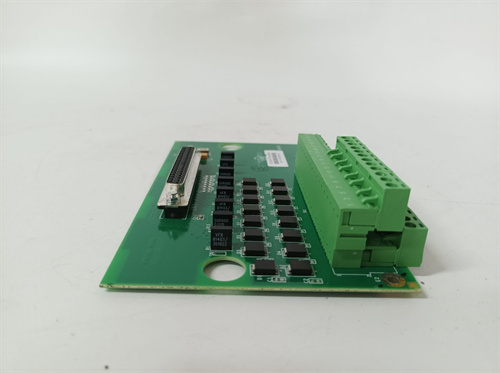

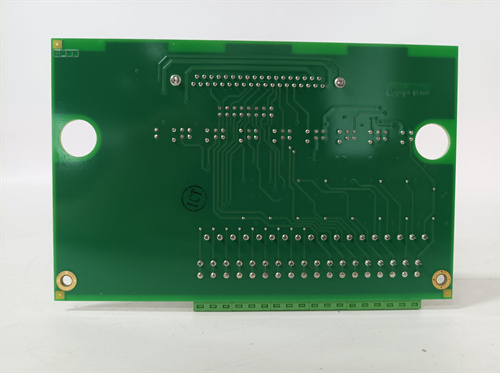

GE IS200STAOH2AAA

Description

Product Description

The GE IS200STAOH2AAA is a specialized Stator Thermocouple Analog Output module for the GE Mark VI turbine control system. This module is a critical interface component designed to manage temperature monitoring and protection for the stator windings of a generator or large motor. The primary function of the GE IS200STAOH2AAA is to accept low-level millivolt (mV) signals from multiple thermocouples embedded in the generator stator slots and convert them into usable analog output signals, typically 4-20 mA, for transmission to the main turbine controller or a separate monitoring system. It also provides excitation current for the thermocouples and includes signal conditioning and isolation. The reliability and accuracy of the IS200STAOH2AAA are paramount for protecting valuable generator assets from overheating damage, which can lead to catastrophic failure and extended downtime.

Product Parameters

• Manufacturer/Brand: GE (General Electric)
• System: Mark VI Speedtronic Turbine Control
• Module Type: Stator Thermocouple Analog Output Module
• Input Type: Thermocouple inputs, typically for RTDs or specific TC types (e.g., J, K) used in generator stator temperature monitoring. The exact type is defined by the application.
• Number of Channels: Multiple channels (e.g., 8, 12, or 16), allowing monitoring of temperature at various points along the stator core and windings.
• Output Signal: Converts the temperature reading into an industry-standard analog output, most commonly a 4-20 mA current loop per channel.
• Excitation: Provides the necessary excitation current for the temperature sensors (if active sensors are used).
• Isolation: High channel-to-channel and channel-to-system isolation to prevent ground loops and ensure signal integrity in the electrically noisy generator environment.
• Accuracy: High accuracy and stability are required for reliable temperature trending and alarm generation.
• Diagnostics: Includes basic diagnostics for channel health and sensor failure detection (e.g., open thermocouple).
• Compatibility: Designed for specific Mark VI I/O packs and terminal boards. The -AAA suffix indicates a specific hardware and firmware revision.
• Mounting: Installs into a designated slot within a Mark VI I/O pack assembly.

Advantages and Features

• Critical Generator Protection: The GE IS200STAOH2AAA is a dedicated component for a vital protection system. It enables continuous monitoring of generator stator temperature, providing early warning of overheating due to overloads, cooling failures, or internal faults.
• High-Density Temperature Monitoring: By consolidating multiple thermocouple channels into a single module, it allows for comprehensive thermal profiling of the stator, which is essential for detecting hot spots and ensuring even cooling.
• Signal Integrity and Isolation: The built-in isolation protects the sensitive Mark VI control system from high common-mode voltages and electrical noise generated by the generator, ensuring accurate and reliable measurements.
• Standardized Output: Converting the thermocouple signal to a robust 4-20 mA output allows for long-distance transmission to the controller and easy integration into the plant’s data acquisition system.
• Seamless Mark VI Integration: Configured and monitored within the GE ToolboxST engineering environment, allowing temperature points to be easily tagged, alarmed, and trended alongside other turbine parameters.

Application Cases in Key Fields

• Gas Turbine Generator Protection: Installed in the Mark VI control cabinet for a Frame 7 or 9 gas turbine. The IS200STAOH2AAA monitors stator winding temperatures, providing alarms and initiating load sheds or trips to prevent insulation damage.
• Steam Turbine Generator Monitoring: Used in both utility and industrial steam turbine generators to monitor stator core and winding temperatures, essential for protecting the generator during synchronized and islanded operation.
• Hydroelectric Generator Monitoring: Protects large hydro generators by monitoring temperature in stator slots, which is critical due to the slow thermal time constants and the high cost of repair.
• Large Synchronous Motor Protection: Applied in drive systems for large compressors or pumps, where the module monitors stator temperature to prevent insulation failure from frequent starts or overloads.

Comparisons with Competing Products

• Vs. Standalone Temperature Monitoring Systems: Dedicated RTU-style temperature monitors (e.g., from ASC or SHI) exist. The GE IS200STAOH2AAA integrates this function directly into the turbine’s primary control system, eliminating separate hardware, wiring, and HMI interfaces, and providing a unified operational view.
• Vs. Generic Analog Input Modules: A standard analog input card could read 4-20mA signals from external transmitters. The IS200STAOH2AAA is superior because it integrates the sensor excitation, signal conditioning, and isolation specifically for thermocouples/RTDs in a high-noise environment, offering a more robust and purpose-built solution.
• Vs. Thermocouple Input Modules from Other PLC Vendors: While other vendors (Siemens, Rockwell) offer TC/RTD modules, the IS200STAOH2AAA is designed specifically for the mechanical form factor, backplane communication, and software environment of the GE Mark VI system. It is not interchangeable.

Selection Suggestions and Precautions

• Selection Suggestions:
  1. Generator Compatibility: This module is selected specifically for generator or large motor stator temperature monitoring within a Mark VI system. Confirm the number of temperature points required matches the channel count.
  2. Sensor Type Matching: Ensure the module is configured for the specific type of temperature sensor installed in the stator (e.g., 100-ohm Platinum RTD, J-type T/C). This is critical for accuracy.
  3. Verify I/O Pack Compatibility: Confirm the module is compatible with the specific Mark VI I/O pack (e.g., TSTA) it will be installed into.
• Precautions:
  1. Sensor Installation and Wiring: The accuracy of the entire system depends on properly installed and wired sensors. Use the correct thermocouple extension wire, ensure good connections at terminal blocks, and follow best practices for routing wires away from power cables.
  2. Calibration: For critical protection functions, the input (sensor) and output (4-20mA) of each channel on the IS200STAOH2AAA should be periodically calibrated to ensure ongoing accuracy.
  3. Open Sensor Detection: Understand how the module handles an open sensor circuit (e.g., drives the output to a high or low alarm value). Configure controller logic and alarms appropriately to alert operators to a sensor failure.
  4. Grounding: Proper grounding of the module and sensor shields is essential to reject electrical noise. Follow the Mark VI installation guidelines precisely.
