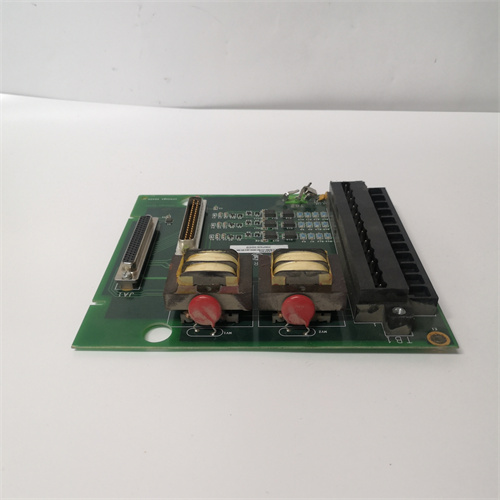

GE IS200SPROH1A

Description

Product Description

The GE IS200SPROH1A is a single-channel overspeed protection module designed for the GE Mark VI and Mark VIe family of turbine control systems. This specialized, safety-critical board is dedicated to the singular, vital function of detecting turbine overspeed conditions and initiating an immediate protective shutdown to prevent catastrophic mechanical failure. The primary role of the IS200SPROH1A is to receive a raw speed signal from a magnetic pickup (MPU) sensor on the turbine shaft, process it with high reliability, and compare it to a preset overspeed trip setpoint. For control and safety engineers, the integrity of the GE IS200SPROH1A is non-negotiable, as it acts as a dedicated, hardware-based last line of defense. This module is engineered with a focus on fail-safe operation and high diagnostic coverage to meet stringent safety standards for turbine protection. Detailed technical specifications and safety manuals for this critical component can be accessed via the product page for the GE IS200SPROH1A. Proper configuration and maintenance of the IS200SPROH1A are fundamental to the safe operation of any industrial turbine.

Product Parameters/Key Specifications

• Manufacturer: GE Industrial Systems (General Electric)
• Series: Mark VI / Mark VIe Speedtronic Turbine Control System
• Function: Single-Channel Overspeed Protection Module
• Input Signal: Accepts a raw, sinusoidal signal directly from a Magnetic Pickup Unit (MPU) sensor monitoring turbine shaft speed (typically producing a frequency proportional to RPM).
• Signal Processing: Conditions the MPU signal, converts frequency to a proportional RPM value, and performs continuous self-diagnostics.
• Trip Setpoint: Contains a user-configurable overspeed trip setpoint, often set via hardware jumpers or software, depending on the module variant and system integration.
• Outputs: Provides a relay output (or logic output) that de-energizes or changes state when the calculated speed exceeds the setpoint. This output is typically wired directly to the turbine’s emergency trip solenoid.
• Diagnostics: Continuously monitors the health of the input signal (e.g., for loss of MPU signal) and its own internal circuitry. A diagnostic fault will typically result in a “fail-safe” trip output.
• Power Supply: Requires a clean, dedicated DC power source, often with redundancy requirements in safety-critical applications.
• Safety Rating: Designed and certified for use in safety-related functions, often complying with standards like IEC 61508 (SIL 2 or SIL 3).

Advantages and Key Features

• Dedicated Safety Function: As a single-function module, it eliminates common-cause failures with the main control system, providing independent protection (often referred to as “1-out-of-1,” or 1oo1).
• High Reliability and Diagnostics: Incorporates extensive internal diagnostics to detect failures within the module itself, ensuring a high level of diagnostic coverage and forcing a trip on failure (Fail-Safe).
• Fast Response Time: Engineered for minimal processing delay to ensure the overspeed trip is executed within milliseconds of detecting the setpoint violation.
• Robust Signal Conditioning: Designed to handle the noisy signals typical of industrial MPUs and provide accurate speed measurement even at low signal amplitudes.
• Hardware-Based Setpoint: In many configurations, the trip setpoint is defined by hardware (jumpers/ resistors), making it resistant to accidental or malicious software change—a key safety principle.
• Proven in Critical Applications: A long-standing, field-proven design used in thousands of turbine installations worldwide.

Application Cases in Industry

The IS200SPROH1A is deployed as a primary or backup overspeed protection layer in virtually all GE turbine installations.

• Gas & Steam Turbine Primary Overspeed Protection: Serves as the dedicated, hardware-based overspeed trip device, providing protection independent of the main Mark VI/e controller’s software-based overspeed algorithms.
• Turbine-Driven Compressor and Pump Protection: Used on mechanical drive turbines in oil & gas, petrochemical, and pipeline applications to prevent overspeed of critical rotating equipment.
• Redundant (2oo2 or 2oo3) Overspeed Systems: Multiple IS200SPROH1A modules are used in voting architectures to provide higher availability while maintaining safety integrity. For example, two modules in a 2oo2 (AND) logic provide higher safety; three in a 2oo3 logic provide both safety and availability.
• Retrofit and Modernization Projects: A key component for upgrading the safety system of older turbines, bringing them in line with modern safety standards.

Comparison with Competing Products

• Vs. Software-Based Overspeed in the Main Controller: The main control processor also runs overspeed protection logic. The GE IS200SPROH1A provides a physically separate, diverse layer of protection. This redundancy is critical because a software bug or processor failure in the main controller could disable its overspeed function.
• Vs. Mechanical Overspeed Bolts: Traditional mechanical devices are entirely independent but act only at a fixed, very high speed and require mechanical inspection. The IS200SPROH1A is electronic, allows for a configurable setpoint, provides continuous diagnostics, but requires power.
• Vs. Other OEM Electronic Overspeed Modules (Woodward, Triconex): Competitors offer similar dedicated modules (e.g., Woodward 505/723Plus). The IS200SPROH1A is optimized for seamless integration with the GE Speedtronic ecosystem, sharing power, rack space, and diagnostic reporting. Competing modules are part of their own proprietary safety systems.
• Vs. Multi-Channel / Triple Modular Redundant (TMR) Systems: The IS200SPROH1A is a single-channel device. Systems like Triconex offer triple-redundant overspeed solutions within a single rack. GE achieves higher redundancy by using multiple single-channel IS200SPROH1A modules in a voted configuration.

Selection Suggestions and Precautions

1. Understand the Safety Integrity Level (SIL) Requirement: Determine the required Safety Integrity Level for your application. The IS200SPROH1A is typically part of a safety loop whose overall SIL is determined by the entire architecture (sensor, module, solenoid).
2. Architecture is Key: Decide on the protection architecture: 1oo1 (single channel), 1oo2 (one of two trips), 2oo2 (both must trip), or 2oo3 (two of three must trip). This dictates how many IS200SPROH1A modules are required and how they are wired.
3. MPU Sensor Selection and Wiring: Use the specified MPU sensor and follow GE guidelines for cable type, shielding, and routing. Signal integrity is paramount. The MPU should be dedicated solely to this safety function.
4. Setpoint Configuration: Exercise extreme caution when setting the hardware jumpers or configuring the software setpoint. This must be done by authorized personnel following a strict procedure, with independent verification.
5. Regular Functional Testing: Safety systems require periodic proof testing. Establish a procedure to safely simulate an overspeed condition (e.g., inject a frequency signal) to verify the IS200SPROH1A module trips correctly and within the required time.
6. Source Authentic Safety-Critical Parts: Never compromise on sourcing for safety modules. Purchase the IS200SPROH1A only from authorized GE channels or certified safety system specialists to guarantee its performance and certification integrity.
