GE IS200SDIIH1ADB

Description

Product Description

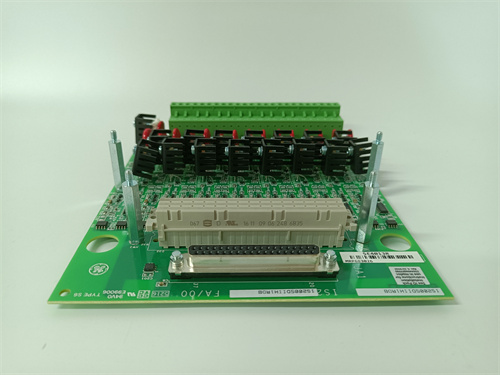

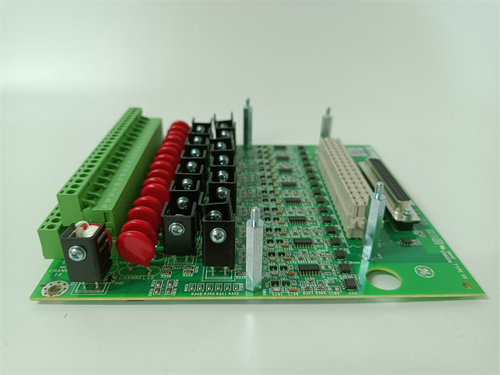

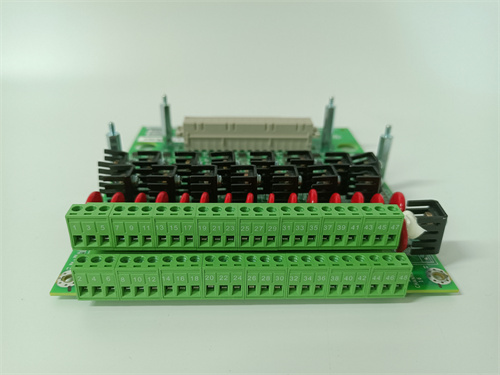

The GE IS200SDIIH1ADB is a specialized Sequence of Events (SOE) and Digital Input Interface board designed for the GE Mark VI and Mark VIe series of turbine control systems. This high-density, high-speed input module serves a critical diagnostic and protection function by capturing the precise timing of discrete (on/off) state changes from field devices with millisecond or microsecond resolution. The primary role of the IS200SDIIH1ADB is to monitor a large array of digital signals—such as breaker statuses, relay trips, valve limit switches, and pressure switches—and timestamp each transition. For control and reliability engineers, implementing the accurate GE IS200SDIIH1ADB is essential for post-trip analysis, disturbance investigation, and root cause determination following an equipment fault or shutdown. This module provides the granular data needed to reconstruct the exact sequence of events leading to a turbine trip. Technical documentation and configuration details for this vital diagnostic component are available on the product resource page for the GE IS200SDIIH1ADB. The performance and precision of the IS200SDIIH1ADB directly support improved plant reliability and reduced downtime by enabling faster fault diagnosis.

Product Parameters/Key Specifications

• Manufacturer: GE Industrial Systems (General Electric)
• Series: Mark VI / Mark VIe Speedtronic Turbine Control System
• Function: Sequence of Events (SOE) / High-Speed Digital Input Interface Board
• Input Channels: Typically provides a high number of optically isolated digital input channels (e.g., 32 or 64 channels per module).
• Input Type: Sinks or sources current to read dry contact closures (from relays, switches) or active DC signals.
• Voltage Ratings: Designed for standard industrial DC voltage levels (e.g., 24 VDC, 48 VDC, 125 VDC). The specific rating is defined by the connected field wiring and power supply.
• Resolution (SOE Accuracy): Capable of timestamping events with very high resolution, often 1 millisecond or better, synchronized to the system clock.
• Isolation: Channels are grouped and isolated in banks to prevent noise propagation and provide safety separation.
• Communication: Interfaces with the turbine controller via the backplane (VME bus in Mark VI, or equivalent in Mark VIe rack).
• Status Indicators: Per-channel or bank status LEDs to indicate the state of each input.

Advantages and Key Features

• High-Speed Event Capture: The core capability to timestamp digital changes with millisecond precision is critical for distinguishing the order of events in fast-acting protection systems.
• High Channel Density: Consolidates monitoring of many discrete points into a single module, saving rack space and simplifying system architecture.
• Excellent Noise Immunity: Optical isolation on input channels protects the sensitive control system from electrical transients and noise present in plant wiring.
• System-Wide Time Synchronization: SOE timestamps from the IS200SDIIH1ADB are synchronized with the central controller clock, allowing correlation of events across multiple I/O modules and even across different controllers in a plant.
• Critical Diagnostic Data: The captured sequence of events is invaluable for engineers analyzing trips, optimizing startup/shutdown sequences, and meeting regulatory reporting requirements.
• Flexible Configuration: Input filtering, debounce times, and other parameters can often be configured via software to tailor the module’s response to specific field devices.

Application Cases in Industry

The IS200SDIIH1ADB is deployed wherever precise timing of digital events is required for protection and analysis in critical machinery.

• Turbine Trip Analysis: The primary application is capturing the exact sequence of all protective devices (vibration switches, temperature switches, overspeed bolts, flame detectors) during a gas or steam turbine trip to determine the initiating cause.
• Electrical Protection Sequencing: Monitoring the operation and trip signals of generator circuit breakers, field breakers, and protective relays in a substation.
• Plant-Wide Disturbance Monitoring: Used in balance-of-plant systems to track the sequence of motor starts/stops, valve movements, and pump failures during a plant upset.
• Black Start and Grid Synchronization: Provides precise timing data for events during critical generator synchronization procedures.

Comparison with Competing Products

• Vs. Standard Digital Input (DI) Modules: Standard DI modules report state changes but do not provide high-resolution timestamps. The GE IS200SDIIH1ADB is specifically designed for SOE functionality, which standard DI modules lack. They are used for control; SOE modules are used for diagnostics and analysis.
• Vs. Dedicated Standalone SOE Recorders: While standalone SOE recorders exist, the IS200SDIIH1ADB is fully integrated into the Mark VI/e control system. This allows seamless correlation of SOE data with analog trends and control logic states within the same engineering tool (ToolboxST), offering a more unified diagnostic view.
• Vs. Other OEM SOE Solutions (Woodward, Siemens): Competing turbine controllers have similar SOE capabilities, but the hardware and configuration are proprietary to each OEM’s system. The IS200SDIIH1ADB is only compatible with the GE Mark VI/e ecosystem.

Selection Suggestions and Precautions

1. Determine Required Resolution and Channels: Assess the number of points requiring SOE monitoring and the necessary timestamp resolution (e.g., 1ms vs. 10ms). This will dictate if the IS200SDIIH1ADB is the right choice and how many modules are needed.
2. Verify Voltage Compatibility: Confirm the DC voltage level of the field devices (24VDC, 125VDC) matches the wiring and isolation specifications of the IS200SDIIH1ADB module and its associated terminal board.
3. Proper Terminal Board Pairing: The IS200SDIIH1ADB interface board must be used with its corresponding terminal board (e.g., an IS200TBDIH, IS200STCIH) which provides the screw terminals for field wiring. They are sold and installed as a matched set.
4. System Clock Synchronization: For accurate plant-wide SOE, ensure the Mark VI/e controller hosting the IS200SDIIH1ADB is synchronized to a high-accuracy time source (like GPS or IRIG-B).
5. Configuration and Testing: SOE points must be carefully configured and labeled in the control software. After installation, perform a “bump test” by actuating field devices to verify both the state change and the accuracy of the timestamp recorded in the SOE log.
6. Sourcing: Due to its diagnostic importance, source this module from reputable suppliers specializing in GE turbine controls to ensure you receive a genuine, fully functional unit.
