GE IS200PMCIH1ABA

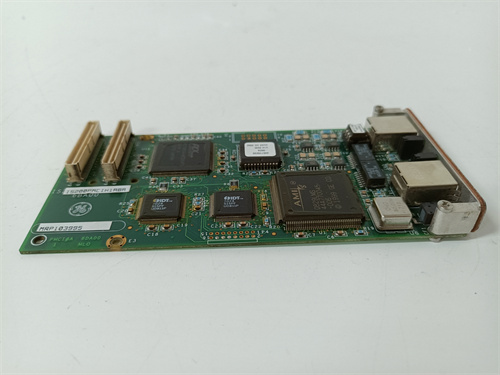

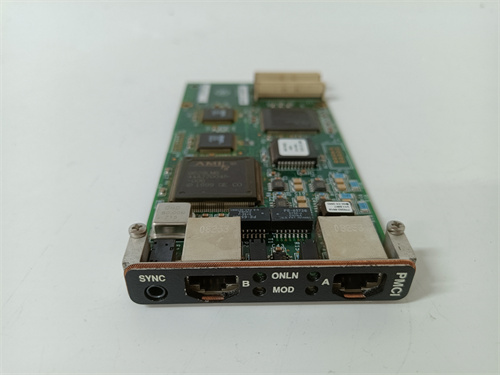

GE IS200PMCIH1ABA is a PMC (PCI Mezzanine Card) interface module for GE Speedtronic Mark VI turbine control systems, serving as a critical communication and I/O expansion bridge between the Mark VI controller and external devices. GE IS200PMCIH1ABA enables seamless integration of PMC – based I/O modules into the Mark VI architecture, supporting high – speed data exchange via its PCI bus interface compliant with PCI Revision 2.2. GE IS200PMCIH1ABA facilitates communication with IONet Ethernet networks, ensuring real – time data transmission for turbine control, monitoring, and diagnostics in power generation setups. It offers 1500V channel – to – backplane isolation, protecting the control system from voltage surges in gas/steam turbine and industrial drive applications.

Inquiry now
Manufacturer:

Our extensive catalogue, including , is available now for dispatch to the worldwide.
  • Email: jiedong@sxrszdh.com
  • Phone / Wechat：+86 15340683922

Description

Product Description

GE IS200PMCIH1ABA is a PMC (PCI Mezzanine Card) interface module for GE Speedtronic Mark VI turbine control systems, serving as a critical communication and I/O expansion bridge between the Mark VI controller and external devices. GE IS200PMCIH1ABA enables seamless integration of PMC – based I/O modules into the Mark VI architecture, supporting high – speed data exchange via its PCI bus interface compliant with PCI Revision 2.2. GE IS200PMCIH1ABA facilitates communication with IONet Ethernet networks, ensuring real – time data transmission for turbine control, monitoring, and diagnostics in power generation setups. It offers 1500V channel – to – backplane isolation, protecting the control system from voltage surges in gas/steam turbine and industrial drive applications. GE IS200PMCIH1ABA is equipped with flash – backed SRAM for non – volatile storage of critical control data, preventing data loss during power outages. With built – in power supply monitoring and Ethernet physical layer packet snooping, GE IS200PMCIH1ABA ensures precise time synchronization and system stability. It integrates with Mark VI I/O terminal boards and other core modules, and GE IS200PMCIH1ABA’s LED status indicators enable quick fault detection, reducing troubleshooting time in power plant and industrial automation environments.

Product Parameters

Parameter Details
Module Type PMC interface module (GE Mark VI Speedtronic compatible)
Core Function PMC module integration, PCI bus communication, IONet Ethernet connectivity
Interface PCI Revision 2.2 (PMC site compatible); IONet Ethernet port
Isolation 1500V channel – to – backplane
Data Storage Flash – backed SRAM (non – volatile)
Key Features Power supply monitoring, Ethernet packet snooping, time synchronization
Form Factor Standard PMC form factor; ~0.7kg
Operating Environment -40°C to +70°C; 5%–95% non – condensing RH
Certifications CE, RoHS compliant; meets IEC 61800 – 5 – 1 industrial standards
System Compatibility GE Mark VI Speedtronic turbine control systems
Diagnostic Tools LED indicators for power, communication, and module status

Advantages and Features

  1. Seamless Mark VI Integration

    GE IS200PMCIH1ABA is optimized for Mark VI systems, enabling plug – and – play PMC module connection without extra hardware.

  2. High – Speed & Redundant Data Handling

    PCI Revision 2.2 and IONet Ethernet on GE IS200PMCIH1ABA support fast data exchange, while flash – backed SRAM prevents critical data loss.

  3. Superior Isolation & Protection

    1500V isolation on GE IS200PMCIH1ABA shields the control system from voltage surges, ideal for turbine control with harsh electrical environments.

  4. Advanced Monitoring & Synchronization

    GE IS200PMCIH1ABA’s power monitoring and packet snooping ensure system stability and precise time alignment for turbine control.

  5. Simplified Diagnostics

    LED indicators on GE IS200PMCIH1ABA enable quick identification of power, communication, or module faults, minimizing downtime.

Application Cases in Application Fields

  • Gas Turbine Control (Power Plant): GE IS200PMCIH1ABA integrated a PMC – based vibration monitoring module into a Mark VI system, enabling real – time vibration data transmission via IONet Ethernet, improving turbine operational safety and reducing unplanned outages by 30%.
  • Steam Turbine I/O Expansion: It connected a PMC – based analog input module to a Mark VI controller in a thermal power plant, supporting 16 – channel temperature monitoring with 1500V isolation, ensuring data accuracy in high – interference environments.
  • Industrial Compressor Monitoring: GE IS200PMCIH1ABA facilitated communication between a Mark VI controller and a PMC – based pressure monitoring module, providing continuous pressure data for compressor load control, achieving 99.98% data reliability.
  • Turbine Auxiliary System Control: It integrated a PMC – based relay output module into a Mark VI setup, controlling auxiliary pumps and valves, with flash – backed SRAM preserving critical control parameters during power fluctuations.

Comparisons with Competing Products

Parameter GE IS200PMCIH1ABA Siemens S7 – 400 PM – 16 ABB AC800M PMC – 100
Core Function Mark VI – optimized PMC integration, PCI/IONet communication Basic PMC interface (no native turbine control optimization) PMC interface (proprietary ABB protocol)
Interface Compliance PCI Revision 2.2; IONet Ethernet PCI Revision 2.1; Profinet PCI Revision 2.2; ABB Industrial Ethernet
Isolation 1500V 1000V 1200V
Data Storage Flash – backed SRAM (non – volatile) No built – in non – volatile storage External non – volatile storage required
Diagnostic Capability Advanced (power, communication, packet snooping) Basic (overcurrent only) Medium (voltage fault only)
System Compatibility GE Mark VI Speedtronic Siemens S7 – 400H ABB AC800M
Cost – Effectiveness High (Mark VI integration, no extra hardware) Medium (turbine control adaptation needed) Medium (proprietary parts premium)

Selection Suggestions and Precautions

Selection Suggestions

  • Choose GE IS200PMCIH1ABA for Mark VI Speedtronic systems needing PMC module integration with PCI Revision 2.2 compliance and IONet Ethernet connectivity.
  • Prefer it for turbine control applications (gas/steam) requiring non – volatile data storage, 1500V isolation, and advanced diagnostics.

Precautions

  • Ensure GE IS200PMCIH1ABA is installed on a compatible PMC site of the Mark VI controller to avoid interface mismatches.
  • Do not exceed 1500V isolation limits for GE IS200PMCIH1ABA to prevent module or system damage.
  • Use factory – specified cables for IONet Ethernet communication with GE IS200PMCIH1ABA to ensure data transmission reliability.
  • Regularly check LED indicators of GE IS200PMCIH1ABA for power and communication status to detect potential faults early.
