GE IS200EDSLH2ABB

Description

Product Description

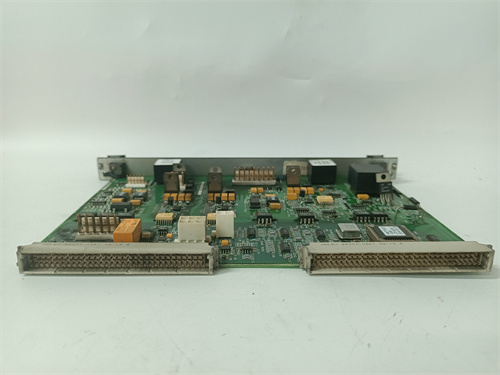

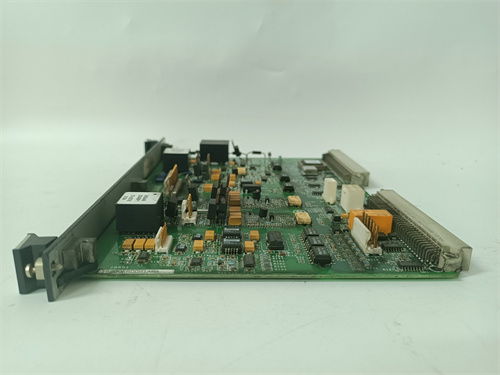

The GE IS200EDSLH2ABB is a specialized communication processor board from the Mark VIe series, a key component within GE’s advanced Speedtronic turbine and plant control systems. This board serves a critical function in managing high-speed, deterministic network communication essential for synchronized multi-controller operations. The IS200EDSLH2ABB specifically facilitates high-performance data exchange across the controller network, ensuring seamless coordination between redundant control processors and I/O packs in applications demanding extreme reliability. Engineered to meet the rigorous standards of power generation, this module underpins the distributed control architecture that defines modern turbine management. You can access comprehensive technical documentation and support resources for this vital link at the official product link: GE IS200EDSLH2ABB. Proper configuration and operation of the GE IS200EDSLH2ABB are fundamental to achieving the low-latency, fault-tolerant communication required for safe and efficient plant control.

Product Parameters

• Manufacturer / Brand: GE (General Electric)
• Product Model: IS200EDSLH2ABB
• Product Series: Mark VIe Speedtronic Turbine Control System
• Board Type: Ethernet (LAN) Communication / Network Interface Board
• Primary Function: Provides high-speed Ethernet communication between the Mark VIe controllers, I/O packs, and potentially HMIs or other supervisory nodes within the control network.
• Network Interface: Typically features dual or multiple Ethernet ports for redundant network paths and connectivity.
• Communication Protocol: Implements GE’s proprietary or industry-standard deterministic Ethernet protocols (e.g., for peer-to-peer controller communication in a triple modular redundant – TMR – system).
• Bus Interface: Plugs into a specific slot within the Mark VIe controller rack, connecting via the internal PCI or high-speed serial backplane.
• Firmware: Runs specialized firmware that manages network traffic, synchronization, and redundancy protocols.

Advantages and Features

The GE IS200EDSLH2ABB communication board offers significant advantages in a distributed control environment:

• Deterministic Network Performance: Ensures predictable and timely delivery of critical control data between system components, which is non-negotiable for turbine protection and fast control loops.
• Built-in Redundancy Support: Designed to operate within GE’s TMR or dual-redundant architectures, providing seamless failover capabilities to maintain continuous control without interruption.
• High Data Throughput: Facilitates the rapid exchange of large volumes of I/O and process data, enabling complex control strategies and comprehensive system-wide monitoring.
• Enhanced System Diagnostics: Provides detailed network status, traffic, and error information, aiding in network troubleshooting and health monitoring.
• Secure and Robust Design: Incorporates features for network segregation and robustness against electrical noise, ensuring reliable operation in the electromagnetically harsh environment of a power plant.

Application Cases in Application Fields

This board is essential in advanced, networked turbine and plant control systems:

• Multi-Turbine Combined Cycle Power Plants: Manages communication between the gas turbine, steam turbine, and balance-of-plant Mark VIe controllers, enabling integrated plant-wide control and optimization.
• Triple Modular Redundant (TMR) Systems: Acts as the communication nerve center in TMR configurations, ensuring the three redundant control processors remain perfectly synchronized for highest availability and safety.
• Distributed I/O Architectures: Connects the main controller rack to remote I/O packs located closer to the turbine, reducing wiring while maintaining high-speed control capability.
• Integrated Renewable Hybrid Plants: Facilitates communication between traditional turbine controls and new controllers managing battery storage or solar inverters in hybrid power facilities.

Comparisons with Competing Products

As a proprietary system component, comparisons are made at the platform level:

• System-Centric Design: The IS200EDSLH2ABB is not a standard Ethernet card. Its direct competitors are communication modules within other OEM’s turbine control platforms, such as Siemens’ T3000 (using Profinet) or Woodward’s NetCon controllers.
• Protocol and Architecture Lock-in: Its functionality is deeply tied to GE’s Mark VIe system software and hardware architecture. Competing systems use different network topologies, synchronization methods, and proprietary protocols.
• Value in Integration: The board’s primary value is its flawless integration within the Mark VIe ecosystem. It competes based on the overall system’s communication reliability, deterministic performance, and engineering tool integration, rather than as a standalone networking product.

Selection Suggestions and Precautions

• Confirm Exact Compatibility: The model number IS200EDSLH2ABB must match the required part for your specific Mark VIe controller model and rack configuration. Using an incompatible communication board will prevent system startup.
• Verify Firmware Version: The board must be loaded with the correct firmware version that is compatible with the rest of your Mark VIe system software. Mismatched firmware is a common cause of communication failures.
• Source Authentic Components: This is a critical system component. Procure the GE IS200EDSLH2ABB only from GE or authorized GE turbine parts suppliers to guarantee authenticity, correct firmware, and reliable operation. Counterfeit boards risk complete network failure.
• Professional Configuration Required: Installation and network configuration (IP settings, synchronization parameters) require specialized knowledge of the Mark VIe system and should only be performed by qualified personnel.
• Plan for Network Topology: Replacement must consider the existing network cabling and topology. Document the connections before removing the old board to ensure correct re-installation of the new IS200EDSLH2ABB.
