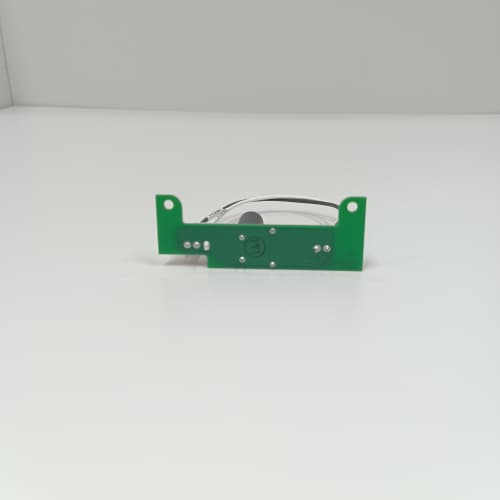

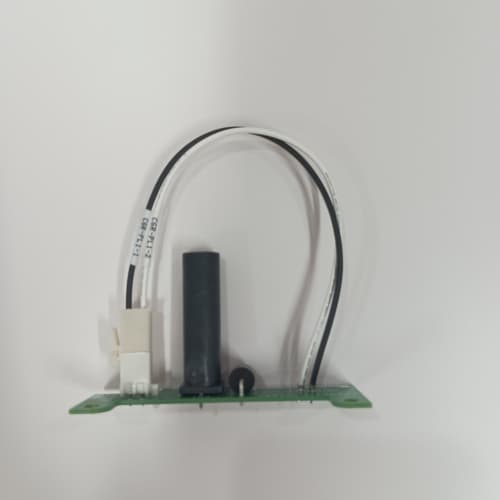

GE IS200AEPGG1AAA

Description

Product Description

The GE IS200AEPGG1AAA is a critical analog input/output module designed for the GE Mark VI and Mark VIe gas/steam turbine control systems. This module serves as an intelligent interface for handling analog signals between the turbine controller and field devices such as pressure transmitters, temperature sensors (thermocouples, RTDs), position feedback devices (LVDTs), and analog command outputs to actuators. The GE IS200AEPGG1AAA provides signal conditioning, isolation, and analog-to-digital/digital-to-analog conversion for precise process monitoring and control. Its design is optimized for the harsh electrical and environmental conditions within a turbine enclosure, ensuring reliable, high-accuracy data acquisition for critical control loops and protection algorithms. Integrating the correct analog module, such as the GE IS200AEPGG1AAA (https://www.example-link-ge-product.com), is essential for maintaining the turbine’s operational efficiency, safety, and emission compliance. The specific suffix “G1AAA” defines the exact hardware revision, I/O type mix, and calibration. The performance of the GE IS200AEPGG1AAA directly impacts the turbine’s ability to regulate speed, temperature, and pressure with precision.

Product Parameters / Technical Specifications

• Manufacturer: GE (General Electric)
• Product Family: Mark VI / Mark VIe Turbine Control System
• Module Type: Analog Input/Output (AI/AO) Terminal Board
• Series: IS200 Series (Mark VIe I/O)
• Part Number: IS200AEPGG1AAA
• Function: Based on the “AEP” prefix, this is an Analog Expansion Pack or Analog Electronic Pack. The “GG1AAA” suffix specifies its exact configuration.
• I/O Types & Channels: Typically provides a combination of:
  • Analog Inputs (AI): For 4-20mA, 0-10V, thermocouple, or RTD signals.
  • Analog Outputs (AO): For 4-20mA command signals to valve positioners or other actuators.
  • The specific count (e.g., 8 AI, 4 AO) is defined by the variant.
• Resolution & Accuracy: High resolution (e.g., 16-bit) and accuracy suitable for precise turbine control.
• Isolation: High channel-to-channel and channel-to-system isolation to prevent ground loops and ensure signal integrity in noisy environments.
• Communication: Interfaces with the turbine controller’s I/O network (PDH/PDB or VME bus).
• Power Supply: Requires an external low-voltage DC supply for field-side circuits and receives logic power from the backplane.
• Diagnostics: Includes self-diagnostics and status reporting for open wire, short circuit, and out-of-range conditions.
• Mounting: Designed for installation in a Mark VIe terminal board assembly.

Advantages and Key Features

• High Precision for Critical Control: The GE IS200AEPGG1AAA is engineered for the accurate measurement and output required for closed-loop control of fuel, temperature, and emissions in a turbine.
• Robust Industrial Design: Built to withstand extreme temperatures, vibrations, and electrical noise, ensuring reliable 24/7 operation.
• Integrated System Diagnostics: Provides detailed health and status information to the turbine controller, enabling predictive maintenance and rapid fault isolation.
• Deterministic Performance: Ensures fast and reliable data sampling and output updates, which are critical for the turbine’s high-speed control loops.
• Seamless Mark VIe Integration: As a genuine GE component, it guarantees full compatibility with the controller’s hardware and ToolboxST software, ensuring correct configuration and calibration.

Application Cases in Various Fields

• Gas Turbine Control: Measuring compressor discharge pressure, exhaust gas temperature (EGT) via thermocouples, and fuel gas pressure, while outputting signals to fuel control valves.
• Steam Turbine Control: Monitoring steam chest pressure, bearing metal temperatures (via RTDs), and controlling governor valve position via analog outputs.
• Aeroderivative Turbine Packages: Handling analog signals for fuel metering and temperature control on LM2500 or LM6000 units.
• Compressor Control (Mechanical Drive): Measuring suction and discharge pressures and providing speed reference signals to the driver turbine.
• Emissions Monitoring: Interfacing with continuous emissions monitoring system (CEMS) analyzers for NOx and CO levels as part of the turbine’s control strategy.

Comparison with Competing Products

The GE IS200AEPGG1AAA is a proprietary analog I/O module for the GE turbine control ecosystem. Its direct competitors are similar high-precision analog modules from other turbine control OEMs like Siemens (for SGT turbines) and Woodward. Its primary advantage is its certified performance and seamless integration within the Mark VIe system, which is the dominant platform for GE turbines. Compared to using generic industrial data acquisition cards, this module is purpose-built for the safety-critical, high-reliability, and specific signal conditioning requirements of turbine control, with direct support from GE’s turbine engineering services.

Selection Suggestions and Precautions

• Selection Advice: The GE IS200AEPGG1AAA is selected exclusively for repairing or sparing a specific Mark VI/Mark VIe turbine control system. Selection is driven 100% by the existing system’s bill of materials (BOM) and the module’s exact position and function within the I/O network. The full part number IS200AEPGG1AAA must be matched precisely.
• Precautions:
  1. Exact Part Number Match: The suffix “G1AAA” is critical. Different suffixes indicate different I/O mixes, voltage ranges, or firmware that will likely be incompatible.
  2. Electrostatic Discharge (ESD): This is sensitive electronic equipment. Handle with strict ESD precautions (wrist strap, grounded bag).
  3. Calibration & Configuration: Analog modules often require calibration. The configuration (input type, range, scaling) must be correctly set in the ToolboxST software. Using default or incorrect settings will lead to erroneous measurements and control.
  4. Wiring & Shielding: Use proper shielded, twisted-pair cable for all analog signals. Follow GE’s guidelines for grounding the shield at the cabinet end only to prevent ground loops.
  5. Authorized Source Only: Due to its critical role in turbine control and safety, this module must be sourced from GE or an authorized GE turbine parts distributor to ensure authenticity, calibration, and support.
