GE IS200AEPBH1B

Description

Product Description

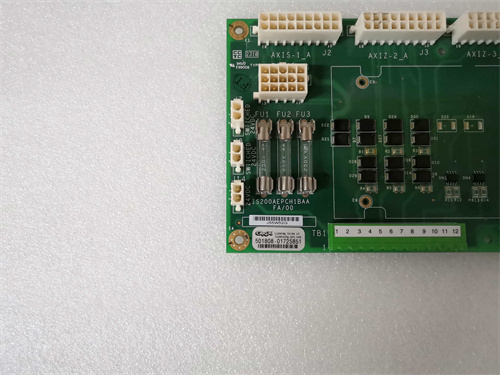

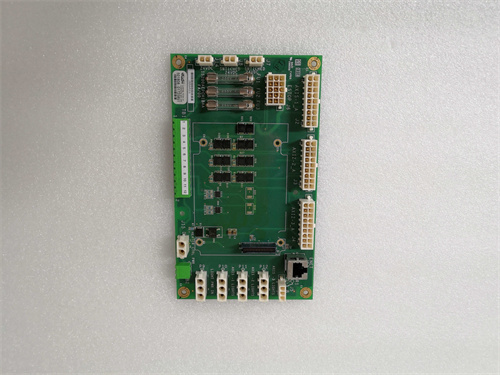

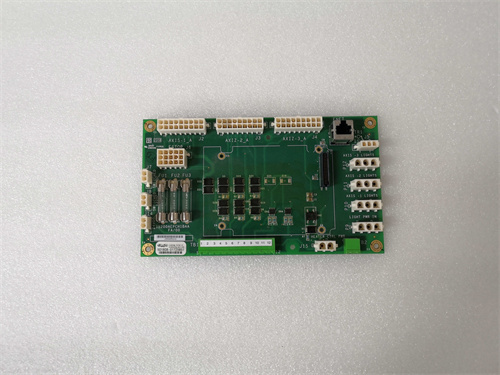

The GE IS200AEPBH1B is a critical printed circuit board assembly from the Mark VI series, part of GE’s renowned gas and steam turbine control system. This specific board functions as an Excitation Power Supply Board, playing an indispensable role in managing and regulating the generator field current. The GE IS200AEPBH1B is engineered for extreme reliability and precision, delivering the stable, controlled power necessary for generator excitation in demanding power generation applications. As a core component within the Mark VI architecture, this board exemplifies GE’s commitment to high-performance industrial control and protection.

Product Parameters

• Manufacturer / Brand: GE (General Electric)
• Product Model: IS200AEPBH1B
• Product Series: Mark VI Gas/Steam Turbine Control System
• Board Type: Excitation Power Supply Board / Power Amplifier Board
• Primary Function: Provides regulated power to the generator’s exciter field, controlling the generator’s output voltage and reactive power.
• Input Power: Accepts a controlled input signal and power from the turbine control system (TMR – Triple Modular Redundant architecture).
• Output Power: Delivers a high-current, regulated DC output to the exciter.
• Communications: Integrates directly with the Mark VI controller via the VME backplane or designated I/O networks for command and monitoring.
• Protection Features: Includes built-in diagnostics and protective functions to safeguard the exciter and generator from faults.
• Compatibility: Designed specifically for use within a Mark VI Speedtronic turbine control cabinet.

Advantages and Features

The GE IS200AEPBH1B board offers several key advantages in turbine control:

• High Precision and Stability: Delivers precise control over the generator field current, which is critical for maintaining consistent voltage output and reactive power support to the electrical grid.
• Robust Power Handling: Engineered to handle the significant power levels required for excitation, with high-quality components rated for continuous industrial operation.
• Integrated Diagnostics: Features comprehensive on-board diagnostics that communicate with the Mark VI controller, enabling predictive maintenance and rapid fault identification.
• Redundancy Support: Designed to function within GE’s TMR architecture, contributing to the overall high availability and fault tolerance of the turbine control system.
• Proven Reliability: As a component of the widely deployed Mark VI system, it has a proven track record of reliability in thousands of installations worldwide.

Application Cases in Application Fields

This board is exclusively and critically used in the power generation sector:

• Combined-Cycle Power Plants: Controls excitation for gas turbine generators in highly efficient combined-cycle configurations, ensuring fast response to grid frequency changes.
• Simple-Cycle Peaker Plants: Manages generator excitation in turbines used for meeting peak electricity demand, requiring reliable and rapid start-up and loading.
• Industrial Power Generation: Used in turbines that provide captive power for large industrial facilities like refineries, chemical plants, and paper mills, where process continuity is essential.
• Steam Turbine Applications: Also employed in steam turbine generators for power plants and large industrial cogeneration facilities.

Comparisons with Competing Products

The GE IS200AEPBH1B exists within a proprietary ecosystem, making direct comparisons unique:

• System Lock-In: Unlike generic PLC I/O cards, this board is a proprietary component of the GE Mark VI system. Competing products would be excitation boards from other turbine control OEMs like Siemens (TXpert) or Woodward (NetCon), not interchangeable modules.
• Architecture-Specific Design: Its design, form factor, and communication are fully optimized for the VME-based Mark VI backplane and TMR philosophy. Competing systems use their own proprietary hardware architectures.
• Performance & Integration: The primary comparison is at the system level (Mark VI vs. competitor’s turbine controller). The IS200AEPBH1B‘s performance is evaluated as part of GE’s integrated solution for excitation control, competing on overall system reliability, diagnostic depth, and lifecycle support.

Selection Suggestions and Precautions

• Confirm Exact Replacement: The suffix (H1B) is crucial. Always verify the exact board revision and firmware compatibility with your specific Mark VI frame and turbine model. Using an incorrect revision can cause system malfunctions.
• System Compatibility Check: This board is not a standalone item. Ensure it is compatible with the surrounding components in your excitation system, including the regulator and the exciter itself.
• Source from Authorized/Vetted Suppliers: Due to its critical nature, procure the GE IS200AEPBH1B only from GE or highly reputable, authorized distributors of GE turbine parts. Counterfeit or refurbished boards without proper testing can lead to catastrophic turbine trips or generator damage.
• Professional Handling and Installation: Strict ESD (Electrostatic Discharge) procedures must be followed. Installation and configuration should only be performed by technicians certified on GE Mark VI systems.
• Update Documentation: After replacement, ensure the plant’s asset and maintenance documentation is updated with the new board’s serial number and revision.
