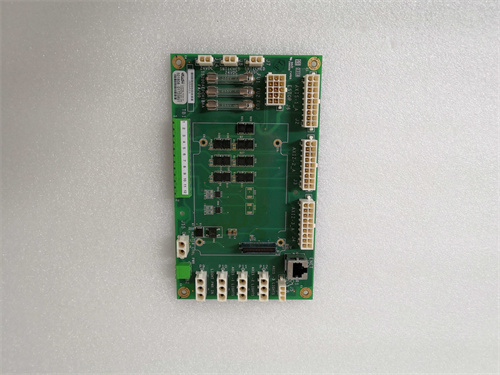

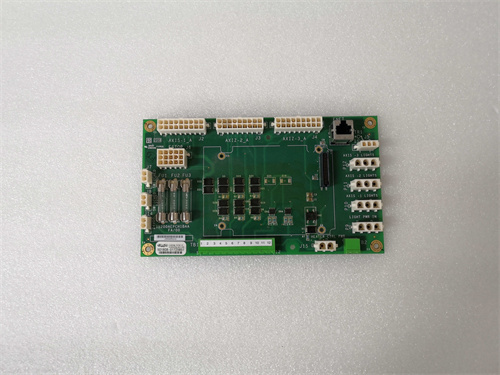

GE IS200AEPAH1AFD

Description

Product Description
The GE IS200AEPAH1AFD is a specialized Analog Expansion Pack (AEP) designed for the GE Mark VI gas/steam turbine control system. This critical module functions as a high-density analog input interface, significantly expanding the I/O capacity of the Mark VI controller. The primary role of the IS200AEPAH1AFD is to condition, isolate, and digitize a multitude of low-level analog signals from field sensors—such as thermocouples (TC), resistance temperature detectors (RTDs), millivolt (mV), and milliampere (mA) signals—before transmitting this data to the main control processors (TCPs) over the high-speed VME backplane. By providing a robust and reliable interface for critical temperature, pressure, and flow measurements, the GE IS200AEPAH1AFD pack is essential for precise turbine control, performance calculation, and protection logic. Its design emphasizes accuracy and noise immunity, making it a trusted component for gathering analog process data within the comprehensive Mark VI Speedtronic framework.

Product Parameters

• Model: IS200AEPAH1AFD – Analog Expansion Pack.
• System Family: GE Mark VI Speedtronic Turbine Control System.
• Function: High-density analog input module pack.
• Input Types: Configurable for a wide range of analog inputs including:
  • Thermocouples (Types J, K, T, E, R, S, B, N).
  • RTDs (100-ohm Platinum, 120-ohm Nickel).
  • Millivolt (mV) signals.
  • Milliampere (mA) signals (typically 4-20mA).
• Channel Count: Contains multiple isolated analog input channels (specific count depends on terminal board configuration, often 16 or 32 channels per pack).
• Isolation: Provides channel-to-channel and channel-to-system isolation for measurement accuracy and protection against ground loops.
• Resolution: High-resolution analog-to-digital conversion (e.g., 16-bit).
• Communications: Interfaces with the Mark VI controller via the VME bus within the EX2100 or Mark VI rack.

Advantages and Features

• High-Density I/O: The GE IS200AEPAH1AFD consolidates a large number of analog points into a single rack slot, optimizing space and simplifying wiring through associated terminal boards.
• Superior Signal Conditioning: Features built-in conditioning for various sensor types, including cold-junction compensation for thermocouples and lead resistance compensation for RTDs, ensuring high measurement accuracy.
• Enhanced System Integrity: Electrical isolation protects the sensitive control system from transient noise and faults originating in the field, improving overall system reliability.
• Seamless Mark VI Integration: As a native component, it is fully supported by the Mark VI toolset (ToolboxST), allowing for straightforward configuration, calibration, and diagnostics within the unified control logic environment.
• Proven Reliability: Engineered for the demanding 24/7 operational environment of turbine control, offering long-term stability and minimal drift.

Application Cases in Application Fields
The IS200AEPAH1AFD is deployed almost exclusively within turbine control applications:

• Gas Turbine Power Plants: Used to monitor exhaust temperatures (via thermocouples), bearing temperatures (via RTDs), and various pressure/flow signals (via 4-20mA transmitters) for control and protection of GE Frame 6, 7, and 9 series turbines.
• Steam Turbine Control: Monitors critical steam temperatures, metal temperatures, and bearing temperatures in combined-cycle and cogeneration plants.
• Turbine-Driven Compression: In mechanical drive applications for pipelines or process industries, it acquires all necessary process analog data for controlling the turbine-compressor train.
• Aeroderivative Turbine Packages: Used in smaller, mobile turbine units for power generation or mechanical drive, providing the essential analog I/O interface.

Comparisons with Competing Products

• Vs. Woodward NetCon or Micronet Analog Cards: These are for competing turbine control platforms. The GE IS200AEPAH1AFD is proprietary to the Mark VI ecosystem and cannot be used interchangeably. Its advantage is deep, optimized integration with GE’s control algorithms and diagnostics.
• Vs. Generic PLC Analog Input Cards: While generic PLC cards (e.g., Siemens, Allen-Bradley) can read similar signals, they lack the specific sensor conditioning, calibration routines, and, most importantly, the certified integration with turbine sequencing, tripping, and protection logic that the IS200AEPAH1AFD provides within the Mark VI.
• Vs. Earlier GE Mark V Analog Input Cards (IC2000 series): The IS200AEPAH1AFD represents a more advanced, digitally integrated design with higher density and improved diagnostics compared to its predecessors, though it serves the same core function within a newer architecture.

Selection Suggestions and Precautions

1. System Compatibility is Absolute: The GE IS200AEPAH1AFD is only compatible with the GE Mark VI control system. Verify the exact version and firmware compatibility with your existing Mark VI rack and controllers.
2. Requires Associated Hardware: This pack does not function alone. It requires a corresponding analog input terminal board (e.g., IS200AEPCH1A, IS200AEPTG1A) for field wiring connections and a specific slot in the EX2100 or Mark VI I/O pack rack. The terminal board defines the channel count and signal types.
3. Configuration via ToolboxST: All setup—including channel assignment, sensor type selection, scaling, and alarm limits—must be performed using the GE ToolboxST software. Incorrect configuration will lead to faulty readings.
4. Calibration: Although highly stable, critical channels may require periodic calibration using precision sources to maintain accuracy, especially for protection-related temperatures.
5. Observe ESD and Handling Precautions: This is a static-sensitive electronic component. Proper ESD handling procedures should be followed during installation or replacement.
