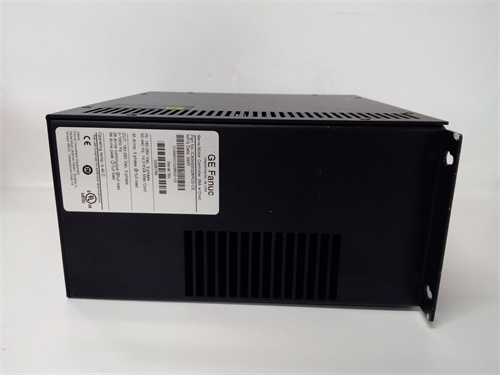

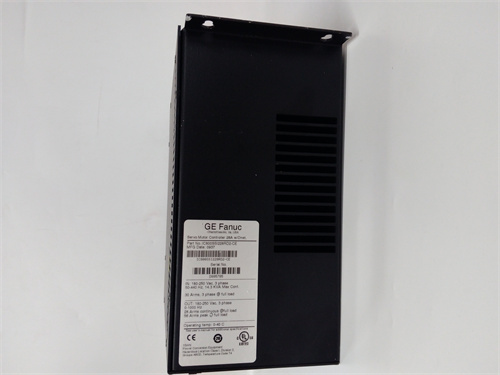

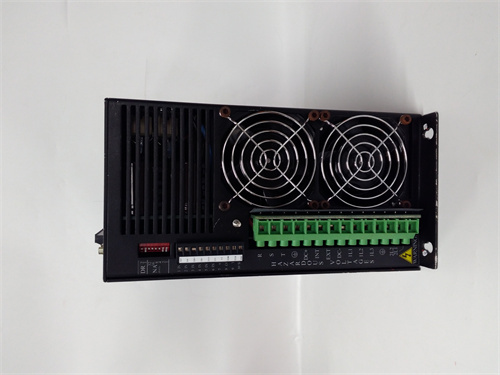

GE IC800SS1228R02-CE

Description

Product Description

GE IC800SS1228R02-CE is an Ethernet I/O adapter module for the GE QuickPanel+ series of operator interfaces and control devices. This module, the IC800SS1228R02-CE, functions as a critical communication gateway, enabling the QuickPanel+ unit to act as a remote I/O scanner or adapter on a standard Modbus TCP/IP network. Its primary role is to bridge the internal data table of the QuickPanel+ controller or HMI with discrete and analog I/O points distributed over Ethernet. The GE IC800SS1228R02-CE allows for the cost-effective distribution of I/O, eliminating long runs of individual wires back to a central PLC. By integrating this module, a QuickPanel+ unit can directly read sensors and command actuators over a network, functioning as a compact, all-in-one control and visualization solution. For system designers looking to implement localized control with remote I/O, the IC800SS1228R02-CE provides a streamlined, vendor-integrated path.

Product Parameters / Technical Specifications

• Manufacturer: GE Intelligent Platforms (now part of Emerson)
• System: QuickPanel+ Control and Display Series
• Functional Designation: Ethernet I/O Adapter Module
• Communication Protocol: Modbus TCP/IP (Client/Server).
• Network Interface: 10/100BASE-T Ethernet (RJ45 port).
• I/O Capacity: Acts as a scanner for a specific number of remote I/O points. The model number suggests support for discrete and analog points (the “1228” often denotes 12 discrete and 8 analog channels, but the exact mapping must be verified).
• Compatible I/O: Designed to work with GE’s VersaMax Micro and Nano distributed I/O units (e.g., IC200MDL, IC200ALG series) over Ethernet.
• Mounting: Attaches directly to the rear or side of a compatible QuickPanel+ unit via a proprietary connector.
• Configuration: Programmed and configured using GE’s Proficy Machine Edition or QuickDesigner software.
• Certification: The “-CE” suffix indicates compliance with European Union (CE) directives for electromagnetic compatibility and safety.

Advantages and Key Features

• Integrated Control & Visualization: Enables a single QuickPanel+ device to serve as both the HMI and a local PLC with networked I/O, reducing hardware footprint, cost, and complexity.
• Simplified Wiring: Drastically reduces control panel wiring by using a single Ethernet cable to connect to remote I/O blocks located near sensors and actuators.
• Modbus TCP/IP Standard: Uses a widely adopted industrial Ethernet protocol, ensuring interoperability with a vast array of devices, including third-party PLCs, drives, and gateways.
• Deterministic Performance (within the network): Provides fast and predictable I/O scanning over Ethernet when used within a well-designed network.
• Cost-Effective for Small Systems: Offers an economical solution for machine-level control and monitoring without the need for a separate, full-sized PLC rack.
• Seamless Software Integration: I/O points mapped through the GE IC800SS1228R02-CE appear as native tags in the QuickPanel+ development software, simplifying programming and data handling.

Application Cases in Industry

• Machine Automation: Ideal for standalone machines such as packaging equipment, test stands, or small assembly stations where an operator interface and local control are required in one package.
• Distributed Skid Control: Used on self-contained process skids (e.g., mixing, pumping skids) where the control and HMI are mounted on the skid, and I/O is distributed across the skid’s components.
• Building Management Systems: Can control and monitor HVAC units, lighting panels, or access control systems where I/O is spread out across a facility.
• Small Process Lines: Suitable for controlling a segment of a production line, such as a filling station or a labeling machine.

Comparison with Competing Products

Selection Suggestions and Precautions

1. Verify QuickPanel+ Compatibility: Not all QuickPanel+ models support I/O adapter modules. Confirm that your specific QuickPanel+ unit (model and firmware) is compatible with the GE IC800SS1228R02-CE.
2. Clarify I/O Point Capacity: Do not assume the “1228” defines the exact I/O count. Consult the official datasheet to confirm the maximum number of discrete inputs, discrete outputs, and analog channels the module can support as a scanner.
3. Network Design is Critical: While using standard Ethernet, for reliable industrial control, implement best practices: use managed switches, avoid network loops, and segment control traffic from office/data traffic. The performance of the IC800SS1228R02-CE depends on network quality.
4. Match Remote I/O Family: This adapter is designed to work with specific GE VersaMax Micro/Nano Ethernet I/O units. Ensure the remote I/O blocks you select are explicitly listed as compatible.
5. Software and Driver Configuration: You must correctly configure the Modbus TCP driver and map the I/O addresses within the Proficy Machine Edition project. Incorrect mapping will lead to communication failures.
6. Consider Future Expansion: Evaluate if the I/O capacity of this solution meets not only current but also potential future needs. Expanding beyond its capacity may require a system redesign.
