GE IC698PSA100E

Description

Product Description

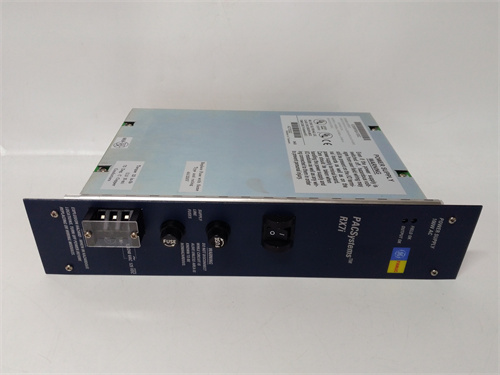

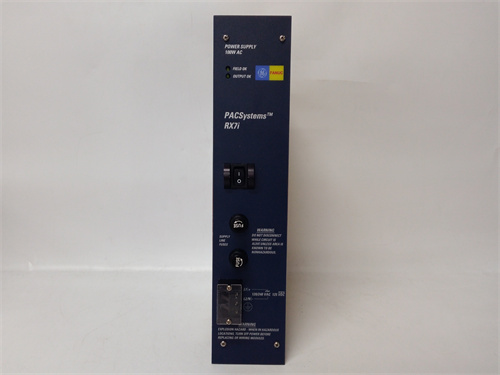

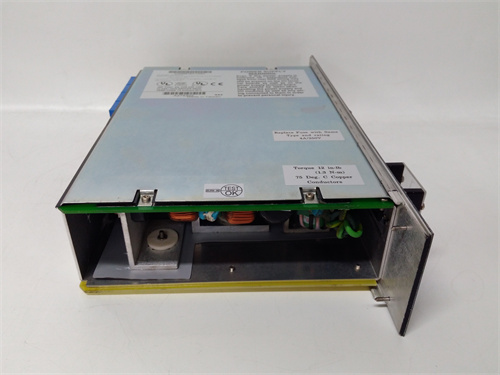

The GE IC698PSA100E is a robust 100-watt AC-to-DC power supply module designed specifically for the GE PACSystems RX7i programmable automation controller platform. This critical component is responsible for converting incoming alternating current (AC) line voltage into stable, regulated direct current (DC) power required to operate the CPU, I/O modules, and communication modules installed in the RX7i rack. The IC698PSA100E ensures the integrity and reliability of the entire control system by providing clean and consistent power. As the foundational power source, the installation of a GE IC698PSA100E is essential for the stable and uninterrupted operation of high-performance automation systems in demanding industrial environments.

Technical Parameters

• Device Type: AC Input Power Supply Module.
• Manufacturer: General Electric (GE), now part of Emerson Automation.
• Compatible System: GE PACSystems RX7i (Series 90-70 compatible platform).
• Input Voltage: 85-264 V AC, 47-63 Hz (Auto-ranging, suitable for worldwide use).
• Output Power: 100 Watts continuous output power.
• Output Voltages: Provides standard system voltages, typically +5 V DC (logic) and ±12 V DC or +24 V DC (for field I/O and communications).
• Efficiency: High efficiency design to minimize heat generation.
• Hold-up Time: Provides sufficient hold-up time (typically >20ms) to ride through brief AC power interruptions.
• Protections: Includes protection against overvoltage, overload, and short-circuit conditions.
• Mounting: Occupies a single slot in the RX7i rack (typically the left-most slot, position ‘A’).
• Status Indication: LED indicators for AC Power On and DC Output OK.
• Certifications: Compliant with major international safety and EMC standards (e.g., UL, cUL, CE).

Advantages and Features

• Wide Input Voltage Range: The auto-ranging input of the IC698PSA100E (85-264V AC) allows for direct connection to almost any standard AC mains supply worldwide without taps or switches, simplifying global deployment.
• High Power and Reliability for RX7i Systems: With 100 watts of clean power, this supply is engineered to support fully loaded RX7i racks with CPU, multiple high-density I/O modules, and communication cards, ensuring system stability.
• Robust Protection Features: Built-in safeguards protect both the power supply itself and the expensive downstream electronics from damage due to electrical faults, enhancing overall system uptime.
• Seamless Integration: Designed as a native component of the RX7i system, the GE IC698PSA100E fits perfectly, provides correct backplane voltage, and is fully recognized by the system diagnostics.
• Hot Swappable Capability: In systems configured with redundant power supplies (using a secondary supply in another rack), the IC698PSA100E can typically be replaced without shutting down the control system, maximizing availability.

Application Cases in Various Fields

• Discrete Manufacturing (Automotive, Assembly): Powering large RX7i-based control systems for high-speed production lines with hundreds of I/O points.
• Process Industries (Chemical, Oil & Gas): Providing reliable power for complex batch or continuous process control systems in critical plant areas.
• Power Generation & Distribution: Serving as the main power source for turbine control, substation automation, or auxiliary system controls where reliability is paramount.
• Material Handling & Logistics: Supporting large-scale conveyor, sorting, and warehouse automation systems controlled by RX7i platforms.
• Water/Wastewater Treatment: Powering central plant control systems that monitor and operate pumps, valves, and treatment processes 24/7.

Comparison with Competing Products

Compared to power supplies for other high-end PLC platforms like Siemens S7-400 or Rockwell Automation ControlLogix, the GE IC698PSA100E offers:

• Platform-Specific Optimization: Its electrical and mechanical design is exclusively tailored for the RX7i backplane, ensuring optimal performance and compatibility that universal supplies may not guarantee.
• High Power Density: The 100-watt rating in a single-slot form factor provides substantial power for large configurations, which is competitive within its class.
• Legacy and Forward Compatibility: As part of the RX7i (90-70 compatible) series, it supports both migration of existing Series 90-70 systems and new installations, protecting investments.

Selection Suggestions and Precautions

1. Accurate Power Budget Calculation: Before selecting the IC698PSA100E, calculate the total power consumption of all modules planned for the RX7i rack. Ensure the 100-watt capacity exceeds this sum with a safe margin (recommended 20-30% headroom).
2. Verify Rack Compatibility: Confirm the RX7i rack model (e.g., IC698CHSxxx) is designed to accept this power supply module in its designated slot.
3. Plan for Redundancy in Critical Applications: For processes where a power supply failure would cause significant downtime or risk, implement a redundant power system using a second GE IC698PSA100E in a separate, specially configured rack.
4. Ensure Proper AC Line Conditioning: While robust, the supply should be fed from a clean AC source. Consider using a dedicated circuit and, in areas with dirty power, an external line conditioner or isolation transformer.
5. Observe Thermal Management: Do not block the ventilation slots of the power supply. Ensure adequate airflow within the cabinet to prevent overheating, which can reduce the supply’s lifespan and reliability.
