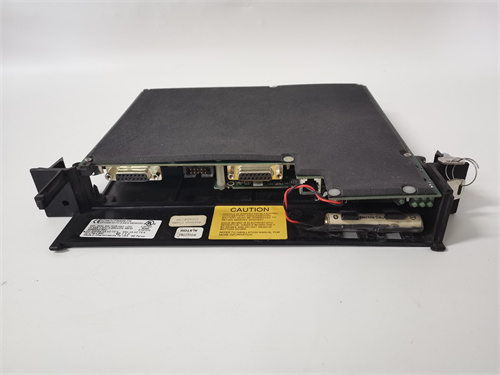

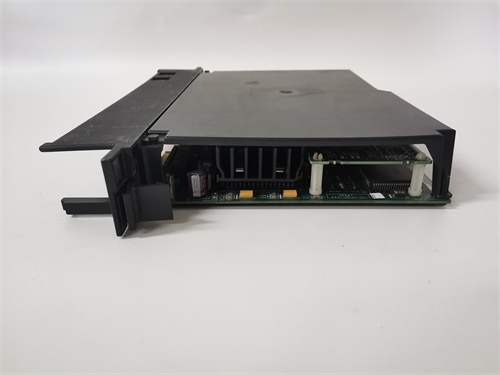

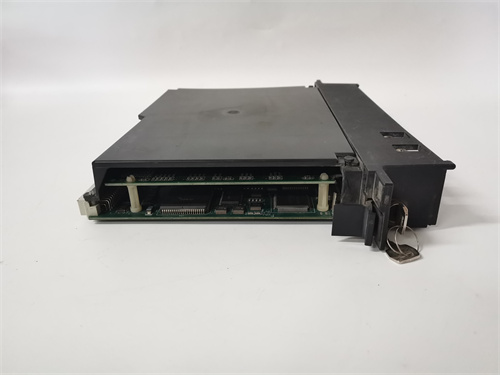

GE IC697ALG320

GE IC697ALG320 is a high – level analog output module for GE Fanuc Series 90 – 70 PLCs, delivering 4 individually configurable voltage/current output channels for precise industrial process control. GE IC697ALG320 features a 16 – bit DAC with 14 – bit monotonicity, generating bipolar/unipolar voltage (±10V) and current (0-22.5mA, default 4-20mA) signals without jumpers/DIP switches, streamlining software – based configuration. GE IC697ALG320 offers backplane isolation and transient overvoltage protection, safeguarding against electrical noise in factory automation and power generation settings. GE IC697ALG320 uses non – volatile EEPROM for factory calibration data, ensuring long – term accuracy with individual channel scaling.

Inquiry now
Manufacturer:

Our extensive catalogue, including , is available now for dispatch to the worldwide.
  • Email: jiedong@sxrszdh.com
  • Phone / Wechat：+86 15340683922

Description

Product Description

GE IC697ALG320 is a high – level analog output module for GE Fanuc Series 90 – 70 PLCs, delivering 4 individually configurable voltage/current output channels for precise industrial process control. GE IC697ALG320 features a 16 – bit DAC with 14 – bit monotonicity, generating bipolar/unipolar voltage (±10V) and current (0-22.5mA, default 4-20mA) signals without jumpers/DIP switches, streamlining software – based configuration. GE IC697ALG320 offers backplane isolation and transient overvoltage protection, safeguarding against electrical noise in factory automation and power generation settings. GE IC697ALG320 uses non – volatile EEPROM for factory calibration data, ensuring long – term accuracy with individual channel scaling. GE IC697ALG320 fits 5/10 – slot 90 – 70 baseplates, with a 2ms sequential conversion rate for real – time control responsiveness. GE IC697ALG320 operates from – 40°C to +70°C, making it a reliable choice for analog – heavy applications like valve positioning and motor speed regulation.

Product Parameters

Parameter Details
Module Type High – Level Analog Output Module (GE IC697ALG320)
Core Function 4 – channel configurable analog voltage/current output; signal isolation; calibration storage
Compatible System GE Fanuc Series 90 – 70 PLCs
Output Channels 4 individually configurable channels
Output Ranges Voltage: ±10V; Current: 0-22.5mA (default 4-20mA)
Resolution 16 – bit DAC with 14 – bit monotonicity (312.5μV/LSB voltage; 0.5μA/LSB 4-20mA)
Conversion Rate 2ms (sequential for all 4 channels)
Calibration Factory – calibrated; data stored in EEPROM
Isolation Outputs isolated from backplane
Mounting 5/10 – slot Series 90 – 70 baseplate (single slot)
Power Consumption 5VDC: 1.66A (8.3W); User power: 150mA (current output mode)
Operating Temperature – 40°C to +70°C
Humidity 0-95% RH, non – condensing
Compliance CE, UL certified

Advantages and Features

  1. Flexible Output Configuration: GE IC697ALG320 switches between voltage/current modes per channel via software, adapting to diverse actuator/sensor interfaces.
  2. Precise Signal Generation: 16 – bit resolution with monotonicity ensures stable, linear outputs for closed – loop control loops.
  3. Simplified Setup: No hardware jumpers—configuration via PLC programming software cuts commissioning time.
  4. Robust Protection: Backplane isolation and overvoltage safeguards prevent damage from transients and ground loops.
  5. Scalable Control: Individual channel scaling enables custom signal mapping for process – specific requirements.
  6. Backward Compatibility: Seamlessly integrates with existing 90 – 70 systems for easy upgrades.

Application Cases in Application Fields

  • Chemical Plant Valve Control: GE IC697ALG320 controlled 4 flow control valves in a petrochemical plant’s 90 – 70 system, reducing flow variance by 40% vs. legacy analog modules.
  • Power Plant Boiler Regulation: It generated 4-20mA signals for damper and feedwater valve positioning in a 400MW coal – fired plant, improving combustion efficiency by 2.5%.
  • Automotive Assembly Line: GE IC697ALG320 drove servo motor speed controls for robotic welding arms, maintaining ±0.1% speed accuracy during high – volume production.
  • Water Treatment Process: It regulated chemical dosing pumps via ±10V signals, cutting chemical waste by 15% with precise analog output tuning.

Comparisons with Competing Products

Parameter GE IC697ALG320 Siemens 6ES7332-5HF00-0AB0 ABB PM860K01 (Analog Output)
Channel Count 4 configurable channels 8 fixed voltage/current channels 4 channels
Resolution 16 – bit (14 – bit monotonicity) 12 – bit 14 – bit
Conversion Rate 2ms 5ms 3ms
Configuration Software – only (no jumpers) Hardware jumpers Software – based
Isolation Backplane – isolated Optional Standard
Operating Temp – 40°C to +70°C – 25°C to +70°C – 30°C to +60°C

Selection Suggestions and Precautions

Selection Suggestions

  • Choose GE IC697ALG320 for Series 90 – 70 PLC systems needing 4 configurable analog outputs with high resolution and isolation.
  • Prefer it for process control apps (valve/motor control) requiring software – configurable signal types and fast conversion rates.

Precautions

  • Avoid exceeding ±12V or 25mA on outputs to prevent damage to GE IC697ALG320’s DAC circuitry.
  • Use shielded twisted – pair cables for output wiring to minimize noise interference with GE IC697ALG320.
  • Verify EEPROM calibration data integrity during system startup to ensure GE IC697ALG320 accuracy.
  • Ensure proper baseplate grounding to maximize GE IC697ALG320’s backplane isolation effectiveness.
  • Do not hot – swap GE IC697ALG320; power down the 90 – 70 chassis before module installation/removal.
