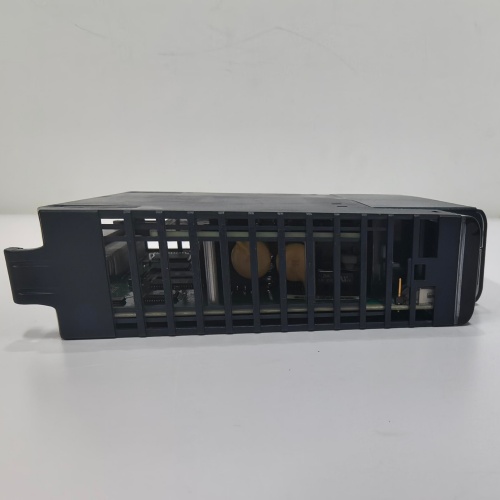

GE IC695PSD040

Description

1. Product Overview

2. Product Parameters

2.1 Core Power Specifications

• Input Voltage: 100-240V AC (50/60Hz) or 120-300V DC (dual input capability)
• Output Voltage: 24V DC (regulated, ±1% tolerance)
• Output Current: 40A total (20A per redundant channel in dual-module configuration)
• Output Power: 960W (24V DC × 40A)
• Redundancy Support: 1+1 hot-swappable redundant configuration (two GE IC695PSD040 modules)
• Efficiency: ≥92% (typical at full load)

2.2 Electrical Protection & Diagnostics

• Protection Features: Overvoltage protection (OVP), overcurrent protection (OCP), short-circuit protection (SCP), overtemperature protection (OTP), input surge protection
• Diagnostic Capabilities: LED status indicators (power OK, fault, redundancy active), digital diagnostics via RX3i PLC (input voltage, output current, temperature, fault codes)
• Communication: Integrates with RX3i PACSystem backplane for real-time status monitoring and alarm reporting

2.3 Mechanical & Environmental Parameters

• Form Factor: RX3i PACSystem standard rack-mount module (fits RX3i 10-slot/14-slot chassis)
• Dimensions: 178mm (W) × 133mm (H) × 229mm (D)
• Weight: 2.5kg
• Operating Temperature: -20°C to +70°C (industrial grade)
• Storage Temperature: -40°C to +85°C
• Relative Humidity: 5% to 95% (non-condensing), IP20 protection (chassis-mounted)
• Vibration Resistance: 5-500Hz, 2g (IEC 60068-2-6)
• Shock Resistance: 30g (11ms half-sine wave, IEC 60068-2-27)

2.4 Certifications & Compliance

• Industry Certifications: CE, UL/cUL 508 (Industrial Control Equipment), ATEX Zone 2, IEC 61010-1, RoHS
• Compatibility: GE RX3i PACSystem PLC chassis (IC695CHS010, IC695CHS014), RX3i controllers (IC695CPU310/320/330), RX3i I/O modules
• MTBF: ≥500,000 hours (per Telcordia SR-332 standards)

3. Advantages & Features

1. Dual Input Flexibility: AC/DC dual input capability allows GE IC695PSD040 to adapt to diverse site power supplies (grid AC, battery DC, generator power), reducing reliance on single power sources and improving system resilience.
2. Hot-Swappable Redundancy: 1+1 redundant configuration with hot-swappable modules enables GE IC695PSD040 to be replaced or maintained without system shutdown, eliminating downtime for critical applications like oil refinery control systems.
3. High Efficiency & Reliability: ≥92% efficiency minimizes energy waste and heat generation, while robust protection features (OVP/OCP/SCP) safeguard GE IC695PSD040 and connected PLC components from electrical faults.
4. Real-Time Diagnostics: Integrated status monitoring via RX3i backplane provides operators with real-time visibility into power supply health (voltage, current, temperature), enabling predictive maintenance and reducing unplanned failures.
5. Seamless RX3i Integration: Native compatibility with GE RX3i PACSystem chassis and components ensures plug-and-play operation, eliminating integration complexity and reducing setup time.

4. Application Fields & Cases

4.1 Application Fields

• Manufacturing: Automotive assembly line control systems, food/beverage production line PLC power, packaging machinery RX3i power supply
• Oil & Gas: Pipeline monitoring PLC systems, refinery process control power, wellhead automation unit power
• Water/Wastewater: Treatment plant SCADA system power, pump station PLC control power, municipal water distribution control power
• Infrastructure: Building automation systems, transportation signal control PLCs, renewable energy (solar/wind) inverter control power

4.2 Typical Cases

1. Automotive Assembly Line Redundancy: A major U.S. automotive plant deployed GE IC695PSD040 in 1+1 redundant configurations for 20 RX3i PLC systems controlling assembly lines. The hot-swappable design allowed module maintenance during production hours, eliminating unplanned downtime and increasing line uptime by 99.9%.
2. Oil Pipeline Monitoring System: A European oil company integrated GE IC695PSD040 into remote RX3i-based pipeline monitoring units. The dual AC/DC input capability ensured power continuity during grid outages (switching to battery DC), preventing data loss and maintaining pipeline safety monitoring.
3. Water Treatment Plant SCADA Power: A municipal water treatment plant used GE IC695PSD040 to power its RX3i SCADA system, including I/O modules and communication components. Real-time diagnostics alerted operators to a potential overvoltage fault, enabling proactive module replacement and avoiding a critical system shutdown.

5. Competitive Comparison

6. Selection Suggestions & Precautions

6.1 Selection Suggestions

1. Redundancy-Critical Applications: Choose GE IC695PSD040 for systems requiring 24/7 uptime (e.g., oil refineries, water treatment plants)—its 1+1 redundant configuration eliminates single points of failure.
2. Diverse Power Supply Environments: Opt for GE IC695PSD040 if the site uses mixed AC/DC power (e.g., remote industrial sites with generators/batteries)—dual input capability ensures power flexibility.
3. GE RX3i Compatibility: Select GE IC695PSD040 for RX3i PACSystem installations—native integration avoids compatibility issues and simplifies system design.

6.2 Precautions

1. Installation Guidelines:
   • Install GE IC695PSD040 in RX3i chassis only (IC695CHS010/014); ensure proper chassis grounding to prevent electrical hazards and noise interference.
   • In redundant configurations, use two identical GE IC695PSD040 modules and connect to separate power sources (e.g., grid AC and battery DC) for maximum resilience.
2. Configuration Notes:
   • Set input type (AC/DC) via chassis configuration software before powering on; mismatched input settings will damage the module.
   • Enable diagnostic alerts via RX3i PLC to receive real-time notifications of faults (overvoltage, overtemperature) and redundancy status changes.
3. Troubleshooting:
   • For “fault” LED activation: Check input voltage (ensure it is within 100-240V AC/120-300V DC range), inspect output connections for short circuits, and verify chassis cooling (overtemperature may trigger faults).
   • For redundancy failure: Confirm both modules are powered and detected by the RX3i PLC; replace the failed module (hot-swappable) and check power source connections for the redundant channel.
4. Maintenance:
   • Inspect module cooling vents quarterly for dust buildup (clean with compressed air) to prevent overheating.
   • Test redundant switchover functionality annually (simulate a primary module failure) to ensure seamless power transfer.
   • Stock spare GE IC695PSD040 modules for critical applications—lead times for GE RX3i components may exceed 8 weeks.
