GE IC695ALG508-AA

Description

Product Description

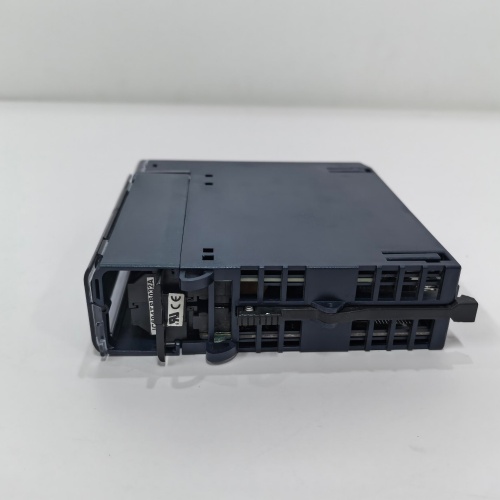

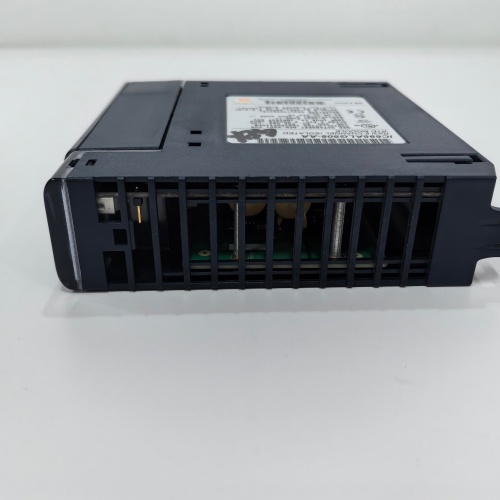

GE IC695ALG508-AA is a high-density, universal analog input module for the GE PACSystems RX3i and Series 90-30 PLC systems. This module, designated as an ALG (Analog Input) module, functions as a versatile interface for acquiring critical process variable data. The primary function of the GE IC695ALG508-AA is to convert multiple analog signals from field transmitters—such as those measuring temperature, pressure, level, and flow—into high-resolution digital values for the PLC CPU. It supports a wide range of signal types, offering exceptional flexibility in a single module. The -AA suffix is a commercial designation, while the core model IC695ALG508 defines its technical capabilities. For engineers designing modern process control systems, the IC695ALG508-AA represents a powerful and efficient solution for consolidating analog measurement points, reducing rack space and hardware complexity.

Product Parameters / Technical Specifications

• Manufacturer: GE Intelligent Platforms (now part of Emerson)
• Series: PACSystems RX3i / Series 90-30
• Functional Designation: Universal Analog Input Module
• Input Channels: 8 differential or 16 single-ended analog input channels.
• Input Types (per channel, software-selectable):
  • Voltage: 0-10V, ±10V, 0-5V, ±5V, 1-5V
  • Current: 0-20mA, 4-20mA, ±20mA
  • Thermocouple (TC): Types J, K, T, E, R, S, B, N, C (with internal cold-junction compensation)
  • Resistance Temperature Detector (RTD): 2-wire, 3-wire, or 4-wire PT100, PT1000, Ni120
  • Ohms: 0-1500Ω, 0-400Ω
• Resolution: 16-bit analog-to-digital conversion for high precision.
• Isolation: 500V channel-to-channel and channel-to-bus isolation for noise immunity and safety.
• Sampling Rate: Configurable update rates per channel group.
• Diagnostics: Extensive diagnostics including open wire detection (for 4-20mA), over/under-range, and module health status.
• Configuration: Fully configured via the PLC programming software (Proficy Machine Edition). No hardware jumpers or switches.

Advantages and Key Features

• Unparalleled Signal Flexibility: The standout feature of the GE IC695ALG508-AA is its ability to accept virtually any standard analog sensor input on any channel, configured in software. This drastically simplifies spares inventory and system design.
• High Channel Density: Eight fully universal channels in a single-slot module optimize backplane space and reduce the number of modules required for complex applications.
• High Accuracy and Resolution: 16-bit resolution ensures precise measurement for critical control and monitoring loops, suitable for both process control and basic metering applications.
• Advanced Diagnostics: Built-in diagnostics, such as open wire detection for current loops, provide early warning of sensor or wiring failures, enabling predictive maintenance.
• Software-Based Configuration: Eliminates physical jumpers and switches, reducing configuration errors and allowing for easy changes from the engineering workstation.
• Hot Swappable: Supports module replacement without powering down the entire PLC system (in supported racks), maximizing uptime.

Application Cases in Industry

• Process Manufacturing: Ideal for chemical, pharmaceutical, or food & beverage plants to measure temperature (via T/C or RTD), pressure, pH, and level from a variety of transmitters.
• Water and Wastewater Treatment: Used to monitor flow rates (4-20mA), tank levels, chemical dosing parameters, and dissolved oxygen.
• Energy Management: Monitors temperatures, pressures, and flows in boiler control, HVAC systems, and district heating networks.
• Machine Building: Provides high-precision feedback for temperature-controlled processes like plastic injection molding, welding, or heat treating.

Comparison with Competing Products

Selection Suggestions and Precautions

1. Verify Backplane and Power Compatibility: Ensure your RX3i or 90-30 rack (IC69x chassis) supports this high-density module and that the power supply has sufficient capacity for it and all other installed modules.
2. Plan Channel Configuration in Software: Before wiring, plan and document the signal type (e.g., 4-20mA, Type K TC) for each channel. Configuration is done in Proficy Machine Edition’s hardware configuration.
3. Use Appropriate Field Wiring:
   • For thermocouples, use matching extension wire.
   • For RTDs, use 3-wire or 4-wire connections to eliminate lead resistance error.
   • For all low-level signals (mV from TCs), use shielded, twisted-pair cable and ground the shield at the panel end only.
4. Understand Update Rate vs. Noise Filtering: The module allows configuration of update rates and filtering. Balance the need for speed (fast control loops) with the need for stability (noisy environments) by applying appropriate digital filtering.
5. Leverage Diagnostics: Utilize the module’s diagnostic data (available in the PLC logic) to create alarm routines for sensor failures, open wires, and out-of-range conditions.
6. Sourcing: This is a current and actively used module in the RX3i platform. Source the IC695ALG508-AA from authorized Emerson/GE distributors to ensure warranty, firmware compatibility, and support.
