GE IC693MDL646 | 32-Channel 24V DC Sourcing Output Module

Description

Product Introduction

That automotive plant in Kentucky—the one with the welding lines that run 24/5—had a robot cell stop last winter. The weld controller wasn’t getting the “cycle start” signal from the PLC. The techs swapped the output module, the cable, even the robot interface. Nothing. I walked over, looked at the IC693MDL646 in the 90-30 rack. Channel 17’s LED was on, but the output wasn’t pulling in the interposing relay. We measured voltage at the terminal—0V. Dead channel. One bad output transistor, one 500 module, one hour of downtime on a 10,000/hour line.

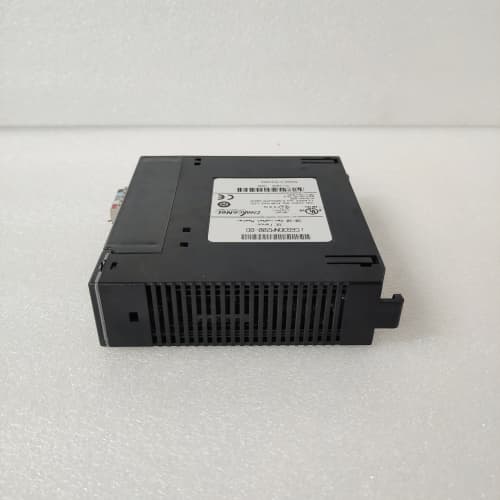

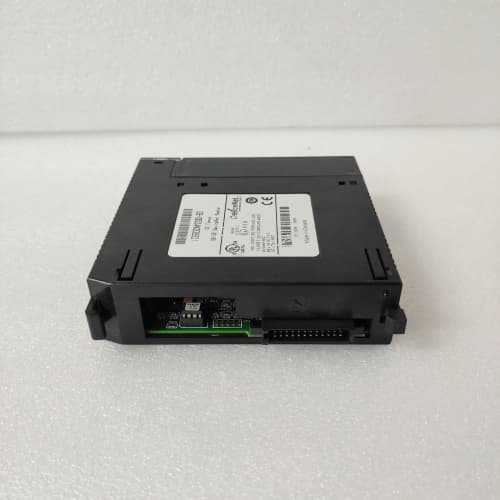

The GE IC693MDL646 is a 32-channel digital output module from the Series 90-30 family. It’s a high-density module—32 points in a single-wide slot. The outputs are sourcing (PNP), meaning they provide +24V to the load when on. The 32 channels are arranged in four groups of eight, each group with its own common return. That lets you mix voltages if needed (different commons can be at different potentials), but most installations just tie all commons together. Each output is optically isolated from the backplane and has short-circuit protection. The module has a 50-pin front connector that mates with a cable to a terminal board (like IC693CBL327). In a typical 90-30 system, it handles everything from solenoids to indicator lights.

Key Technical Specifications

Quality Inspection Process (SOP Transparency)

A 32-channel module gets a thorough workout. Here’s our process.

1. Incoming Verification
   • Match the model: IC693MDL646. (There’s a -A variant—same specs, different revision.)
   • Visual inspection: Look for bent pins on the backplane connector. Check the front 50-pin connector—no bent pins.
   • Inspect the PCB for conformal coating—should be even, no bubbles.
   • Verify the revision sticker.
2. Power-On Self-Test
   • Install the module in a Series 90-30 test rack with a known-good power supply and CPU.
   • Apply rack power—watch the “OK” LED.
   • Connect to the programming software, verify the module is recognized.
3. Output Functional Test
   • Connect a 24V DC load (a small indicator lamp) to each channel via a test fixture.
   • From the programming software, force each channel on/off in sequence.
   • Verify the lamp lights for each channel.
   • Measure output voltage drop at 0.5A—should be <1V.
   • Test all 32 channels simultaneously at 0.25A each (8A total)—monitor field power supply voltage.
4. Group Common Test
   • Connect loads to all eight channels in a group, powered from the same common.
   • Verify all channels work correctly.
   • Test each group separately with maximum load (4A total per group).
5. Short-Circuit Protection Test
   • For a sample of channels, short the output to common while commanded on.
   • Verify the channel shuts down (LED goes out, fault reported).
   • Remove the short—channel should auto-recover (per design).
   • Repeat for each channel (sample basis, 10%).
6. Isolation Test
   • 500V megger between field terminals (shorted) and backplane ground—>10 MΩ.
   • Repeat between each group’s commons—>10 MΩ.
7. Thermal Soak
   • 4 hours at 55 °C in a thermal chamber, all outputs at 0.25A load.
   • Monitor for any fault indications or output dropouts.
8. Final QC & Packaging
   • QC sticker with test date and operator initials.
   • Wrap in anti-static bag.
   • Double-box with foam padding.
   • Test report included—output voltage drop, short-circuit test results.

Field Replacement Pitfalls

I’ve swapped these in factories, water plants, and even a shipboard system. Here’s where people go wrong.

❗Sourcing vs. Sinking
The IC693MDL646 is sourcing (PNP). That means the load must be connected between the output and common (0V). If you wire it between +24V and the output (like you would with a sinking module), it won’t work—and you might damage the module.

Common Group Isolation
The four groups have separate commons. If you tie all commons together, it’s fine—that’s what most people do. But if you need isolation (different voltages for different loads), you can keep them separate. Just remember each group has its own current limit (4A).

External Fusing
The module has per-channel electronic protection, but it’s not a fuse—it’s a current limiter. If you have a dead short, the channel will shut down, but it won’t blow a fuse. That’s fine, but if you need galvanic isolation for fault clearing, add external fuses.

50-Pin Connector
The front connector is a 50-pin D-shell. The mating cable (IC693CBL327) has thumbscrews. If you don’t tighten them, vibration can loosen the connection. Snug them finger-tight, then a quarter-turn with a screwdriver.

Power Budget
The module draws its logic power from the backplane, but the field power (24V) must be supplied externally. If you forget to connect field power, the outputs won’t work—even though the module powers up and looks healthy.

Nail these five, and your MDL646 will outlast the machine.

New Original vs. Refurbished: Why It Matters

“New Original (New Surplus)” means this module was manufactured by GE Fanuc, packed in its original box, and never installed. The output transistors have zero hours, the optoisolators have never been stressed, and the 50-pin connector has never been mated.

Refurbished risk in plain terms
A refurbished GE output module often comes from a decommissioned machine. It may have run for years in a hot cabinet. The output transistors may have been stressed by countless operations and short circuits. A refurbisher tests it at low current and calls it good. In the field, with a real load, it might fail.

Real cost of a refurbished failure
If a single channel fails to energize a critical solenoid, the machine may stop. The cost of one unplanned outage dwarfs the price difference between new and refurbished.

What we provide as proof

• GE box (or photos).
• Serial number recorded.
• Output voltage drop measurements.
• Short-circuit protection test results.
• 12‑month warranty.

Pricing context
We’re priced 35% above the cheapest “pulled” GE modules and 20% below GE’s last list price. That pays for the full load test, the short-circuit check, and the warranty that covers replacement if a channel fails.

Performance Benchmarks & Test Results

*Test conditions: Series 90-30 test rack, 24.0V DC field supply, 0.25A load per channel, ambient 24 °C.*

We keep the full test data—ask, and we’ll email the PDF.
