GE IC693MDL646

Product Description

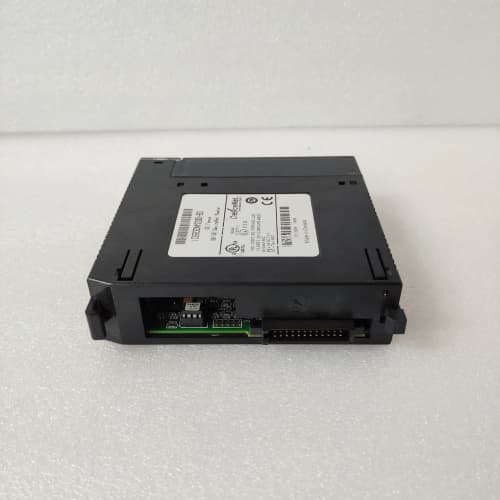

The GE IC693MDL646 is a high-density discrete input module for the Series 90-30 Programmable Logic Controller (PLC) system. This module provides 32 points of 24 VDC sinking or sourcing input channels, allowing it to monitor the status of a large number of field devices such as pushbuttons, limit switches, proximity sensors, and selector switches. As a core component in expanding the digital sensing capabilities of a 90-30 rack, the IC693MDL646 efficiently converts field-level DC signals into logic-level data for the CPU. Its compact design, packing 32 channels into a single slot, makes it an ideal choice for applications with high I/O count requirements where control cabinet space is at a premium. The reliable performance of the GE IC693MDL646 is essential for gathering accurate machine or process state information in industrial automation systems.

Product Parameters

• Module Type: Discrete (Digital) Input Module
• Compatible System: GE Fanuc Series 90-30 PLC
• Number of Channels: 32 points (inputs)
• Input Voltage: 24 VDC
• Input Type: Sinking or sourcing, configurable in groups (typically 16 points per common).
• Input Current: Typically 5-6 mA per point at rated voltage.
• On-State Voltage Range: 15-30 VDC (for a logic “1”).
• Off-State Voltage Range: 0-5 VDC (for a logic “0”).
• Isolation: Optical isolation between field inputs and internal logic.
• Response Time: Fast (typically 3-5 ms).
• Connection: Removable terminal block connector.
• Status Indicators: LED indicator for each input channel and a module status LED.
• Power Consumption: Powered from the 90-30 rack backplane.

Advantages and Features

• High Density and Space Efficiency: The GE IC693MDL646 provides 32 input points in a single module slot, maximizing I/O capacity within a limited rack space and reducing the overall footprint of the control system.
• Wiring Flexibility: Supports both sinking (NPN) and sourcing (PNP) input configurations, offering compatibility with a wide variety of field sensors and devices without requiring additional interface components.
• Excellent Noise Immunity: The optical isolation on each channel protects the sensitive PLC logic from electrical noise, transients, and ground loop problems commonly found in industrial environments.
• Easy Installation and Diagnostics: The removable terminal block simplifies wiring and maintenance. Individual per-channel LEDs provide immediate visual status for easy troubleshooting during commissioning and operation.
• Proven Reliability: As part of the mature and widely deployed Series 90-30 platform, this module is known for its rugged construction and long-term operational stability.

Application Cases in Various Fields

• Automated Assembly Lines: Monitoring the position of numerous pneumatic cylinders, part presence sensors, and safety gate interlocks across a large production cell.
• Packaging Machinery: Reading inputs from a large array of photoelectric sensors, encoder index pulses, and fill-level detectors on high-speed filling and sealing machines.
• Material Handling Systems: Tracking the status of multiple conveyor section run signals, pallet presence sensors, and sortation divertor positions in a warehouse distribution center.
• Industrial HVAC Control: Monitoring status contacts from multiple pumps, fans, damper end switches, and filter alarms in a large building management system.

Comparisons with Competing Products

1. Vs. Lower Density 90-30 Input Modules (e.g., 16-point): The IC693MDL646 offers twice the density, reducing slot usage and cost-per-point for large applications. The trade-off is less granularity with common groupings (16 points vs. 8 or 4).
2. Vs. Equivalent Modules from Other PLC Brands (Allen-Bradley, Siemens): Compared to similar high-density 24VDC input modules from competitors (e.g., Allen-Bradley 1734-IB32), the GE IC693MDL646 is specific to the 90-30 ecosystem. Its advantage is seamless integration, known performance, and cost-effectiveness within an existing or planned 90-30 system.
3. Vs. Remote I/O Solutions: While remote I/O (like Genius or PROFIBUS) distributes points closer to devices, a local high-density module like the IC693MDL646 is often simpler and more cost-effective for applications where many devices are concentrated near the main control cabinet.
4. Key Differentiator: Its primary role is as a high-density, cost-effective workhorse for expanding local digital input capacity within the trusted 90-30 platform.

Selection Suggestions and Precautions

1. Verify Power Supply Capacity: A fully loaded IC693MDL646 module (all 32 points on) draws significant current from the 5V DC backplane. Ensure the CPU rack’s power supply has sufficient capacity to handle this module along with all other installed modules.
2. Correct Sourcing/Sinking Configuration: Understand the type of field devices (PNP sourcing or NPN sinking) you are connecting. The module must be wired to the correct common terminals (for the 16-point groups) to match the field device type. Incorrect wiring will prevent inputs from being recognized.
3. Fuse Protection for Field Wiring: It is good practice to provide external fuse protection (e.g., 1-2A fast-blow) for each field wiring circuit or group to protect the module’s internal electronics from wiring shorts.
4. Consider Heat Dissipation: High-density modules can generate more heat. Ensure adequate ventilation in the control panel, especially if multiple high-density modules are installed side-by-side.
5. Accurate Addressing: The physical slot position of the GE IC693MDL646 in the rack determines its I/O address in the CPU’s memory. Plan the addressing carefully when designing the program.
6. Spare Part Considerations: For critical processes, having a spare IC693MDL646 module is recommended. When replacing, ensure the replacement module is configured for the same sourcing/sinking mode as the original.
7. Legacy System Awareness: The Series 90-30 is a legacy platform. When selecting this module, ensure long-term support and availability align with the expected lifecycle of your machine or process. Consider migration plans to newer platforms for future projects.
