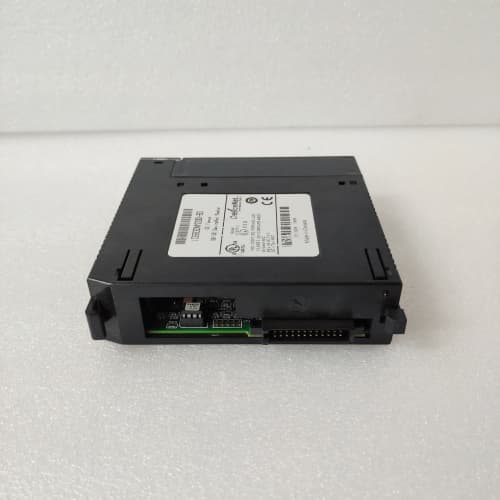

GE IC693DNM200

Description

Product Overview and Description

The GE IC693DNM200 is a critical communications module for the legacy GE Fanuc Series 90-30 PLC system, implementing the Genius Bus Controller functionality. This module acts as a gateway, allowing the Series 90-30 PLC to communicate with, manage, and control devices on a high-speed Genius I/O network. The GE IC693DNM200 enables distributed I/O architecture, significantly expanding the system’s physical footprint and reducing wiring costs. It is a dedicated bus controller, handling all data exchange and diagnostics for up to 31 Genius blocks (I/O modules, drives, etc.) on a single bus. For technicians maintaining or expanding existing Series 90-30 systems, this module is an essential component.

Product Parameters

• Module Type: Genius Bus Controller for Series 90-30 PLC.
• Compatibility: GE Fanuc Series 90-30 PLC rack (requires a compatible CPU).
• Bus Protocol: Genius Bus (GE’s proprietary real-time serial fieldbus).
• Bus Data Rate: 153.6 Kbaud.
• Maximum Stations: Supports up to 31 Genius devices (I/O blocks, drives, etc.) on a single daisy-chained bus.
• Communication Port: Dedicated 9-pin D-sub connector for the Genius bus cable.
• Bus Length: Maximum cable length varies based on data rate and cable type, typically up to 7500 feet at 153.6 Kbaud with shielded twisted pair.
• Diagnostics: Extensive bus fault and device-specific diagnostics reported to the PLC CPU.
• Power Consumption: +5V DC from the rack backplane.

Advantages and Key Features

1. Distributed I/O Capability: The primary advantage of the GE IC693DNM200 is its ability to move I/O points away from the main PLC rack, placing them close to field devices and drastically reducing long home-run wiring.
2. Deterministic Performance: The Genius bus provides fast, predictable, and real-time data exchange between the PLC and remote I/O blocks, which is crucial for coordinated control applications.
3. Comprehensive Diagnostics: It continuously monitors the health of the entire Genius network, reporting device failures, communication errors, and wiring faults directly to the PLC program for rapid troubleshooting.
4. High Noise Immunity: The differential signaling and protocol of the Genius bus, managed by this controller, are designed for reliable operation in electrically noisy industrial environments.
5. Simplified Configuration: Devices on the Genius bus are configured via their hardware address switches, and the GE IC693DNM200 automatically identifies them, simplifying setup compared to complex network tagging.

Application Cases in Various Fields

• Automotive Manufacturing: Distributing I/O blocks across a large assembly line to control welding robots, clamp cylinders, and conveyor sections from a central Series 90-30 PLC.
• Water/Wastewater Treatment: Placing Genius I/O racks in remote pump houses, valve stations, or filter beds to collect level, flow, and pressure data, communicating back to the main control room PLC via a single cable run.
• Food and Beverage: Controlling widely distributed packaging lines, fillers, and palletizers where sensors and actuators are spread over a large area, using the GE IC693DNM200 to centralize logic control.
• Material Handling in Warehouses: Managing a network of sorters, diverter arms, and conveyor motor starters across a distribution center from a single PLC CPU.

Comparison with Competing Products

Within the Series 90-30 ecosystem, the GE IC693DNM200 was the standard solution for Genius communication. Competing products would be communications modules from other PLC platforms offering distributed I/O (e.g., Allen-Bradley Remote I/O, Siemens PROFIBUS DP). Compared to these open protocols, the Genius bus via the IC693DNM200 is a proprietary, vendor-locked solution. Its advantages were robust integration and simplicity within the GE ecosystem. However, compared to modern Ethernet-based I/O (like GE’s own PROFINET or EtherNet/IP), the Genius bus and the GE IC693DNM200 are slower and support less data-intensive device types. It remains a reliable workhorse for maintaining legacy systems but is not the choice for new, greenfield installations seeking IT/OT convergence.

Selection Suggestions and Precautions

• Selection Advice:
  • Legacy System Support: This module should only be selected for expanding or repairing an existing GE Series 90-30 system with Genius I/O. It is not suitable for new designs or other PLC brands.
  • CPU Compatibility: Verify that your Series 90-30 CPU model and firmware support the Genius Bus Controller function.
  • Bus Planning: Carefully plan the Genius bus layout, device addresses, and total cable length to ensure communication reliability. Do not exceed the maximum station count or cable length.
• Important Precautions:
  • Bus Termination: The Genius bus must be properly terminated at both physical ends with 150-ohm terminating resistor plugs. Lack of termination causes communication failure.
  • Device Addressing: Every device on the Genius bus must have a unique hardware address (1-31). Duplicate addresses will cause the GE IC693DNM200 to fault the bus.
  • Cable Specifications: Use only approved, shielded Genius bus cable. Proper grounding of the shield at one end only is critical for noise immunity.
  • Hot Swapping: Never connect or disconnect a Genius block while the bus is powered. Always follow lockout/tagout procedures.
  • Obsolescence Note: The Series 90-30 platform and the GE IC693DNM200 are legacy products. Consider long-term support and migration plans for critical infrastructure.
