GE IC693DNM200

Description

Product Description

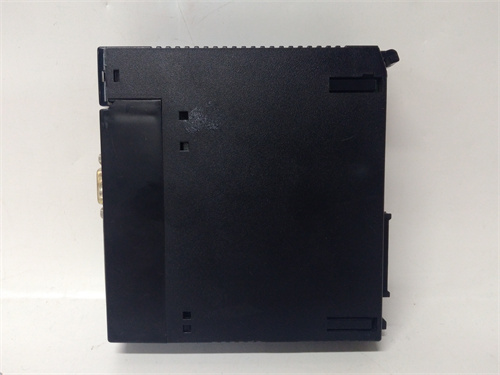

The GE IC693DNM200 is a high-performance Genius bus network manager module for the GE Fanuc Series 90-30 Programmable Logic Controller (PLC) system. As the central communication hub for the Genius LAN (Local Area Network), this module enables deterministic, peer-to-peer data exchange between multiple PLCs, remote I/O blocks, and other intelligent devices on a high-speed serial network. The GE IC693DNM200 is essential for creating distributed control architectures where controllers need to share data reliably across a manufacturing cell or process area. For detailed technical specifications, configuration manuals, and wiring diagrams, the key resource is the official GE Vernova (formerly GE Intelligent Platforms) support portal for the GE IC693DNM200. Implementing a network with the IC693DNM200 module provides a robust and proven solution for real-time data sharing, forming the communication backbone of many industrial automation systems built on the versatile Series 90-30 platform. Its role in coordinating data flow makes it a critical component for synchronized multi-controller applications.

Product Parameters

• Manufacturer / Brand: GE (now part of GE Vernova).
• Series: Series 90-30 (IC693 series).
• Model: IC693DNM200 – Dual Port Genius Bus Controller.
• Function: Genius Network Manager / Bus Controller Unit (BCU).
• Network Ports: Features two independent Genius bus ports (Port A and Port B), allowing for network segmentation, redundancy, or daisy-chaining of devices.
• Communication Speed: Supports the Genius bus communication at 153.6 kbaud, providing deterministic I/O scan times.
• Maximum Stations: Can manage a network with up to 32 devices (other BCUs, remote I/O drops, drives, etc.) per bus segment.
• Data Exchange: Facilitates the exchange of global data between CPUs configured on the same Genius LAN.
• Backplane Interface: Connects to the Series 90-30 backplane to communicate with the local CPU and other modules in the rack.
• Diagnostic Indicators: Extensive LED status indicators for power, port activity, and network faults for each bus port.
• Power Consumption: Draws power from the 90-30 backplane; specific 5V DC and 24V DC current draw as per datasheet.

Advantages and Features

• Deterministic Performance: The Genius bus protocol provides predictable and repeatable data exchange times, which is critical for tightly synchronized control applications.
• Peer-to-Peer Communication: Allows multiple Series 90-30, 90-70, or VersaMax PLCs to share data directly without a master-slave hierarchy or a separate network module.
• Dual-Port Flexibility: Two independent ports enable various network topologies, including redundant data paths or the creation of two separate networks from a single module.
• Robust Network: Uses a shielded twisted-pair cable with a token-passing protocol that is highly resistant to electrical noise, making it suitable for harsh industrial environments.
• Comprehensive Diagnostics: Detailed LED status for each port simplifies troubleshooting of network wiring, device failure, or configuration issues.

Application Cases in Industry

• Automotive Body Shop: Multiple GE IC693DNM200 modules in different PLC racks allow welding controllers, robot cells, and gate controllers to exchange part-present signals and weld status in real-time across a large assembly line.
• Bottling Plant: Synchronizes the control of an infeed conveyor (PLC #1), filler (PLC #2), capper (PLC #3), and labeler (PLC #4) by sharing line speed, bottle count, and fault signals over a single Genius LAN.
• Water Treatment Facility: Creates a distributed control network where a main pump house PLC communicates with remote PLCs in filter buildings and chemical dosing stations to coordinate the entire treatment process.
• Material Handling System: Allows a central master PLC to send destination commands to multiple independent PLCs controlling conveyor zones and sortation devices via shared global data tables.

Comparison with Competing Products

Competing products from the same era include network modules for other PLC platforms, such as the Siemens SIMATIC S7-300 CP 342-5 (Profibus-DP) or the Allen-Bradley 1747-SN (Remote I/O Scanner). The GE IC693DNM200 and the Genius network differentiate themselves through their true peer-to-peer global data sharing capability. Unlike a Profibus-DP master-slave network, the Genius LAN allows any controller to publish data for any other to consume. Compared to modern Ethernet-based solutions (like GE’s own SRTP or Profinet), the Genius bus is slower but offers deterministic performance and noise immunity that made it a preferred choice for many years in factory floor applications.

Selection Suggestions and Precautions

• Selection Suggestions:
  1. Select the GE IC693DNM200 when designing or expanding a Series 90-30 based system that requires deterministic data sharing between multiple CPUs or connection to Genius remote I/O.
  2. Plan the network topology carefully. Use the dual ports to create a single daisy-chain, two separate chains, or a redundant ring (with specific configuration).
  3. Ensure you have the correct Genius bus cable (type IC693CBL308) and terminators (IC693TBS001) for proper network installation.
• Precautions:
  1. Configuration is Key: The module and the global data exchange must be meticulously configured in the PLC programming software (LogicMaster 90 or Proficy Machine Edition). Incorrect configuration is the most common cause of communication failure.
  2. Network Termination: Each physical bus segment must be properly terminated at both ends with a 100-ohm terminator. Lack of termination causes communication instability.
  3. Grounding: The shield of the Genius bus cable must be grounded at one point only on the network, typically at the CPU rack. Multiple ground points can create ground loops and induce noise.
  4. Device Addresses: Every device on the Genius LAN (including each IC693DNM200 port) must have a unique station address (0-31). Address conflicts will prevent communication.
  5. Obsolescence Note: The Genius platform is mature. Ensure you have access to configuration software and expertise. When sourcing, insist on genuine or certified refurbished GE IC693DNM200 modules from reputable suppliers.
