GE IC670MDL644

Description

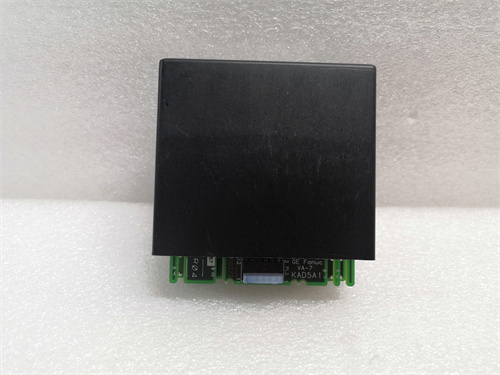

Product Description

The GE IC670MDL644 is a 16-channel 24 V DC positive-logic input module designed for GE Fanuc’s Field Control distributed I/O system, providing reliable discrete signal acquisition for industrial control applications. This rugged input module interfaces directly with field devices including proximity sensors, limit switches, push buttons, and selector switches, converting 24 V DC control signals into logic-level inputs readable by the Field Control bus interface unit. The GE IC670MDL644 features current-sourcing (positive-logic) input architecture compatible with standard industrial 3-wire PNP sensors and dry contact field devices with appropriate power supply wiring. Engineered for harsh manufacturing environments, this module incorporates optical isolation per channel group and comprehensive transient suppression. The GE IC670MDL644 mounts on Field Control I/O carriers and communicates with GE 90-30, 90-70, and RX3i controllers via Genius or Profibus DP bus interface units, enabling distributed control architectures reducing field wiring costs.

Product Parameters

• Model: GE IC670MDL644
• Module Type: Discrete Input, 24 V DC, Positive Logic
• Channel Count: 16, single-ended
• Input Voltage Range: 0–30 V DC
• ON State Voltage: 11–30 V DC (minimum 11 V DC)
• OFF State Voltage: 0–5 V DC (maximum 5 V DC)
• ON State Current: 6 mA typical at 24 V DC
• OFF State Current: < 1.5 mA
• Input Impedance: 4.0 kΩ nominal
• Response Time: < 2 ms ON delay, < 2 ms OFF delay
• Isolation: 1500 V AC field-to-logic, 250 V AC channel-to-channel (grouped, 8 channels per group)
• Indicators: Per-channel green LED status indicators
• Field Termination: 20-pin removable terminal block or 20-pin ELCO connector (carrier dependent)
• Power Consumption: 80 mA from 5 V DC backplane, 50 mA from field side supply
• Operating Temperature: 0°C to 60°C
• Humidity Rating: 5% to 95% non-condensing
• Certifications: CE, UL, CSA, Class I Div 2 (with appropriate carrier), Marine (ABS, DNV)

Advantages and Features

The GE IC670MDL644 delivers exceptional noise immunity through its optimized input threshold design, providing 6 mA nominal turn-on current that reliably discriminates between legitimate control signals and induced electrical noise common in industrial environments. Unlike universal input modules requiring configuration, the GE IC670MDL644 is purpose-built for 24 V DC positive-logic applications, eliminating configuration errors and simplifying troubleshooting. Each of the 16 channels features individual LED indication visible through the module faceplate, enabling rapid fault diagnosis without meters or laptops. The module’s 2 ms response time supports high-speed applications including packaging machinery and material handling systems while maintaining compatibility with standard PLC scan rates. The GE IC670MDL644 incorporates input filtering that rejects high-frequency transients from welding equipment and variable frequency drives without external suppression components. Field wiring termination via removable terminal blocks (on appropriate carriers) facilitates module replacement without rewiring, significantly reducing downtime during maintenance. The module’s grouped isolation architecture provides cost-effective channel-to-channel protection for applications where complete per-channel isolation is not required.

Application Cases in Application Fields

• Automotive Assembly: Deployed on engine transfer lines, the GE IC670MDL644 acquires position feedback from PNP proximity sensors detecting pallet presence, with 16-point density enabling complete workcell monitoring in a single module location.
• Food & Beverage Packaging: Installed on high-speed bottling lines, this module monitors container presence sensors at 600 units per minute, with the GE IC670MDL644‘s 2 ms response time ensuring accurate rejection of improperly filled containers.
• Water/Wastewater Treatment: Utilized in filter plant control systems, the GE IC670MDL644 interfaces with float switches and pressure switch contacts, its 24 V DC wetting voltage eliminating gold-flash contact fretting corrosion common in dry circuit applications.
• Material Handling: Applied in automated warehouse conveyor systems, this module reads photoeye inputs at sortation induct stations, with the GE IC670MDL644‘s distributed architecture reducing control panel I/O requirements by 60%.
• Pharmaceutical Manufacturing: Implemented in cleanroom filling suites, the GE IC670MDL644 monitors interlock switch status on barrier isolation systems, its positive-logic configuration ensuring fail-safe operation with switch contact verification.

Comparison with Competing Products

The GE IC670MDL644 offers compelling advantages for GE Control system users through its optimized performance characteristics specifically tailored to 24 V DC industrial sensor applications. Its higher turn-on current (6 mA) provides superior noise immunity compared to Siemens’ 2.5 mA and Allen-Bradley’s 3.0 mA input thresholds, particularly important in electrically noisy environments with long field wiring runs. While competitive modules offer configurable sink/source logic, the GE IC670MDL644‘s fixed positive-logic architecture eliminates configuration errors in GE-dominant PNP sensor environments. Allen-Bradley’s 1734-IB8 provides faster response but at half the channel density, requiring double the module count for equivalent I/O capacity. The GE IC670MDL644 remains the cost-effective standard for GE Field Control installations with over 20 years of proven reliability in global industrial applications.

Selection Suggestions and Precautions

• System Compatibility Verification: Confirm that your Field Control Bus Interface Unit (BIU) supports the GE IC670MDL644; all Genius and Profibus DP BIU versions are compatible, but very early units may require firmware revision 2.0 or later.
• Field Wiring Polarity: The GE IC670MDL644 requires positive voltage applied to input terminals with common negative; verify field device wiring matches sourcing input architecture—3-wire PNP sensors connect directly, NPN sensors require interposing relays.
• Carrier Selection: The GE IC670MDL644 mounts on Field Control carriers IC670CHS101, IC670CHS102, or IC670CHS103; verify carrier compatibility with terminal block type (removable screw or ELCO connector) required for your installation.
• Sensor Power Supply: Field devices require external 24 V DC power supply; the GE IC670MDL644 does not provide sensor power via input terminals—size power supply adequately for total sensor current plus module field side consumption (50 mA).
• Wiring Distance Limitations: For field wiring exceeding 300 meters, verify that voltage drop at minimum sensor operating voltage (11 V DC) does not exceed supply capability; the GE IC670MDL644‘s 6 mA per channel load must be considered in voltage drop calculations.
• Input Filtering: The GE IC670MDL644 incorporates fixed input filtering optimized for industrial applications; for high-speed counting applications (>250 Hz), consider GE IC670MDL645 high-speed input module with programmable filters.
• Spare Parts Strategy: Given the GE IC670MDL644‘s extensive installed base and GE’s transition to RX3i and PACSystems platforms, maintain configured spare modules representing 5% of installed count; typical lead times range 4-6 weeks.
• Environmental Installation: Mount the GE IC670MDL644 in vertical orientation on carriers within ventilated enclosures; avoid installation directly above heat-generating devices such as power supplies or output modules.
• Terminal Block Torque: When using removable terminal block carriers, tighten field wiring screws to 0.5–0.6 Nm; insufficient torque may result in intermittent connections and nuisance input status changes.
• Obsolescence Awareness: Field Control platform remains supported but GE has designated this technology as “mature”; facilities planning 10+ year operating horizons should evaluate PACSystems RX3i distributed I/O alternatives while maintaining adequate GE IC670MDL644 spares.
• Surge Suppression: In applications with frequent electrical storms or on overhead crane installations, install external transient voltage suppression (MOVs or Zeners) on GE IC670MDL644 field wiring at cabinet entry point.
• Module Addressing: The GE IC670MDL644 occupies 16 discrete input bits in BIU memory map; verify that BIU configuration and controller logic address assignments align to prevent I/O conflict and phantom input conditions.
• Marine Installations: For ABS or DNV certified marine applications, verify that GE IC670MDL644 is installed with conformal coated carriers (IC670CHS1xxC variants) to provide adequate protection against salt spray and humidity.
