GE IC670ALG310-JA

Description

Product Description

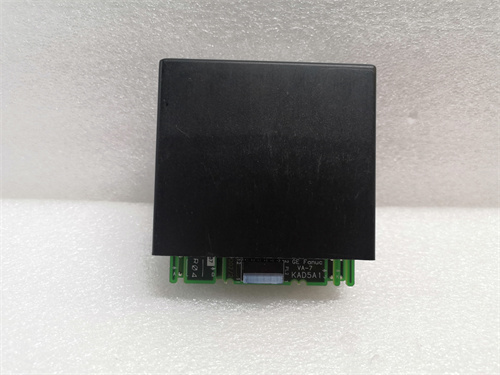

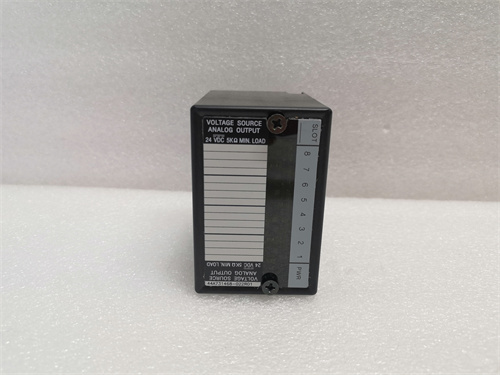

GE IC670ALG310-JA is an analog output module for the GE VersaMax distributed I/O system and PLCs. This module, designated as an ALG (Analog Output) module, functions as a critical interface between the control system’s logic and field devices that require a continuous control signal. The primary function of the GE IC670ALG310-JA is to convert digital values from the PLC CPU into precise analog current or voltage signals to command devices such as control valves, variable frequency drive (VFD) speed references, proportional hydraulic valves, or chart recorders. The suffix -JA is a commercial designation, but the core model IC670ALG310 defines its technical specifications. For engineers building a control system with distributed I/O, selecting the correct analog output module like the IC670ALG310 is essential for implementing closed-loop control and precise process manipulation.

Product Parameters / Technical Specifications

• Manufacturer: GE (GE Fanuc / Emerson)
• Series: VersaMax I/O System
• Functional Designation: Analog Output Module
• Output Channels: Typically features a specific number of independent output channels (e.g., 4 channels).
• Output Type: Configurable per channel for either Current (e.g., 4-20 mA, 0-20 mA) or Voltage (e.g., 0-10 VDC, ±10 VDC) output.
• Resolution: High-resolution digital-to-analog conversion (e.g., 12-bit or 16-bit) for precise signal generation.
• Output Load: Current outputs have a maximum compliance voltage; voltage outputs have a minimum load impedance. These must be adhered to for proper operation.
• Isolation: Channels are typically isolated from the system logic and from each other to prevent noise interference and fault propagation.
• Communication: Interfaces with the VersaMax bus via a base unit (e.g., IC670GBI001) or directly with a compatible PLC CPU rack.
• Diagnostics: Includes status LEDs for module health, communication, and channel-specific faults (e.g., open wire detection on current loops).

Advantages and Key Features

• Flexible Output Configuration: The ability to configure each channel individually as voltage or current provides exceptional flexibility to interface with a wide variety of field devices using a single module type like the IC670ALG310.
• High Accuracy and Stability: Provides stable, low-noise output signals essential for precise process control, ensuring that the command signal received by the field device accurately reflects the PLC’s intended value.
• Distributed I/O Capability: As part of the VersaMax system, it can be installed locally in a PLC rack or remotely in a distributed I/O drop, reducing wiring costs by placing outputs closer to the controlled equipment.
• Integrated Diagnostics: Offers fault detection such as open-circuit detection on current loops, alerting the control system to wiring problems that could disrupt the control loop.
• Compact Design: The modular design allows for high-density I/O in a small footprint, optimizing control panel space.
• Ease of Integration: Configured seamlessly within GE Proficy Machine Edition or other compatible programming software.

Application Cases in Industry

• Process Control Valve Positioning: Provides the 4-20 mA signal to the positioner of a control valve to regulate flow, pressure, or level in chemical, water treatment, or oil & gas processes.
• Variable Speed Drive Control: Sends a 0-10 VDC or 4-20 mA speed reference signal to a VFD controlling a pump, fan, or conveyor motor.
• Proportional Hydraulic/Pneumatic Control: Outputs a voltage signal to a proportional valve amplifier for precise control of cylinder speed or actuator force.
• Analog Setpoint Generation: Used to send an analog signal to a standalone controller or recorder as a remote setpoint.

Comparison with Competing Products

Selection Suggestions and Precautions

1. Verify Channel Configuration Needs: Confirm the number of output channels required and whether each needs to be voltage or current. The GE IC670ALG310 model must match these requirements.
2. Check Field Device Compatibility: Ensure the output signal type and range (e.g., 4-20 mA) match the input specifications of the field device (e.g., valve positioner, VFD). Also, verify that the module can drive the load impedance of the connected loop.
3. Proper Wiring Practices: For current loops, ensure the loop is complete and all terminals are tight. For voltage outputs, ensure minimum load impedance is met. Use shielded, twisted-pair cables for all analog signals and ground the shield at the control panel end only.
4. Software Scaling Configuration: In the PLC programming software, you must correctly scale the digital output word (e.g., 0-32767) to the desired engineering units (e.g., 0-100%, 4-20 mA). Incorrect scaling will result in erroneous field device operation.
5. Base Unit Compatibility: The module requires a compatible VersaMax base unit (e.g., IC670GBI001 for local bus, or a network interface base). Verify compatibility before installation.
6. Sourcing: The VersaMax line is mature. Source the IC670ALG310-JA from reputable automation suppliers who can confirm its functionality.
