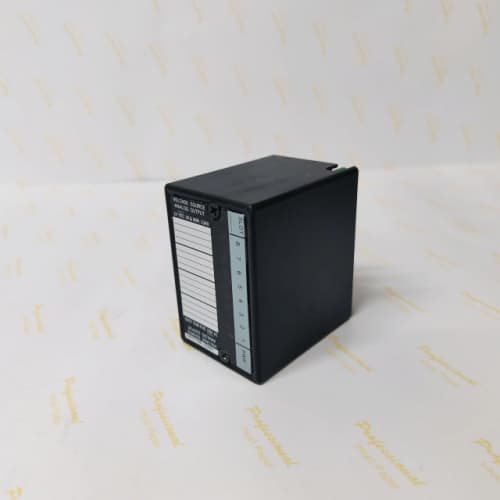

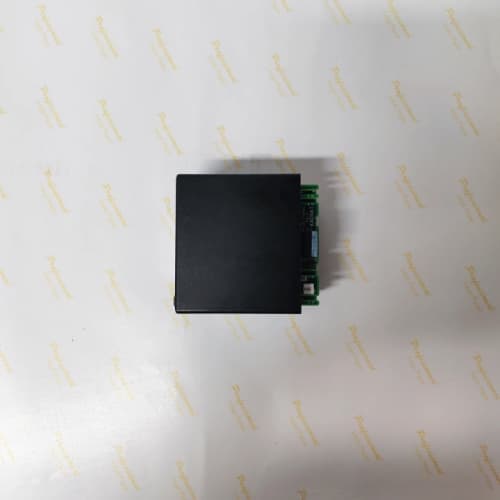

GE IC670ALG310

Description

Product Description

Product Parameters

• Brand/Model: GE IC670ALG310
• Core Analog Input Parameters
  • Input Channels: 8 isolated single-ended channels
  • Configurable Signal Types:
    • Voltage: 0-5V DC, 0-10V DC, ±5V DC, ±10V DC
    • Current: 4-20mA DC, 0-20mA DC
  • Resolution: 16-bit (unipolar), 15-bit (bipolar)
  • Accuracy: ±0.1% of full scale (25°C)
  • Input Impedance: 1MΩ (voltage), 250Ω (current)
  • Isolation: 250V AC channel-to-channel, 500V AC channel-to-ground
• System & Diagnostic Parameters
  • Compatible Systems: GE Fanuc VersaMax Micro/Nano PLCs, VersaMax I/O Systems
  • Diagnostic Functions: Overrange/underrange detection, open-circuit detection (current), LED status indicators (Power/OK/Channel Fault)
  • Update Rate: 10ms per module (all channels)
  • Communication Interface: VersaMax I/O bus (backplane)
• Environmental & Physical Parameters
  • Operating Temperature: 0°C ~ +60°C
  • Storage Temperature: -40°C ~ +85°C
  • Vibration Resistance: 5g (10-500Hz, IEC 60068-2-6)
  • Shock Resistance: 30g (11ms half-sine wave, IEC 60068-2-27)
  • Protection Grade: IP20 (rack-mount)
  • Dimensions: 45mm (W) × 120mm (H) × 150mm (D) (VersaMax I/O rack-compatible)
  • Installation: Hot-swappable (VersaMax I/O racks)

Advantages & Features

1. Multi-Type Signal Compatibility: GE IC670ALG310 supports both voltage and current inputs with multiple ranges, eliminating the need for separate modules for different sensor types and simplifying system design.
2. High Precision & Noise Rejection: 16-bit resolution and built-in filtering ensure accurate signal acquisition in noisy industrial environments (e.g., near motors or high-voltage equipment), reducing measurement errors.
3. Hot-Swappable Design: The module can be replaced without powering down the VersaMax I/O rack, minimizing downtime for maintenance or upgrades in continuous-process applications.
4. Comprehensive Diagnostics: Overrange, underrange, and open-circuit detection provide real-time fault alerts, enabling rapid troubleshooting of sensor or wiring issues.

Application Fields & Cases

1. Manufacturing Line Process Monitoring: An automotive parts manufacturer deployed GE IC670ALG310 modules in VersaMax PLC systems to monitor 8 pressure and temperature points per module on an injection molding line. The module’s multi-signal compatibility supported both 4-20mA pressure transducers and 0-10V temperature sensors, simplifying I/O rack configuration.
2. Water Treatment Plant Flow Measurement: A municipal wastewater treatment facility used GE IC670ALG310 to acquire 4-20mA signals from flow meters and level transmitters across filtration systems. Open-circuit detection alerted operators to broken sensor wires, preventing inaccurate flow data and ensuring compliance with regulatory discharge limits.
3. HVAC Control for Commercial Buildings: A large office complex integrated GE IC670ALG310 into its VersaMax-based HVAC control system to monitor 0-10V temperature sensors and 4-20mA air pressure transducers. The module’s noise rejection capabilities filtered out interference from building electrical systems, ensuring stable temperature regulation and energy efficiency.

Competitor Comparison

Selection Suggestions & Precautions

1. Selection Suggestions: GE IC670ALG310 is ideal for GE VersaMax PLC users needing 8-channel isolated analog input with multi-signal support (e.g., manufacturing, water treatment). For 4-channel applications, choose the GE IC670ALG320; for Allen-Bradley/Siemens systems, select their compatible analog input modules.
2. Precautions:
   • Configure signal types (voltage/current) and ranges via DIP switches or PLC software before installation—incorrect settings will cause measurement errors or module faults.
   • Use shielded twisted-pair cables for analog wiring and ground shields at the module end only to avoid ground loops and electrical interference.
   • Ensure the module is installed in a VersaMax I/O rack with compatible power supply (GE IC670PWR001) to maintain proper voltage regulation and communication.
   • Follow GE hot-swappable procedures (power off the I/O rack segment if not using a redundant power supply) to avoid damaging the module or PLC controller.
   • Calibrate the module annually (per GE recommendations) to maintain accuracy, especially in applications with strict measurement requirements (e.g., regulatory compliance).
