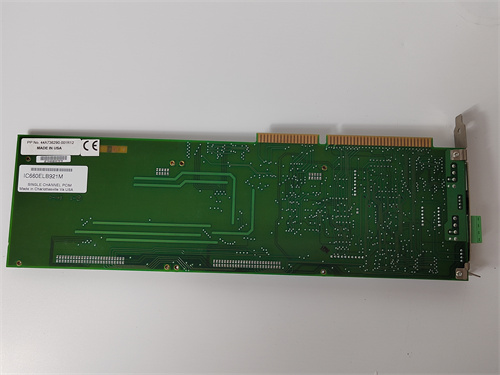

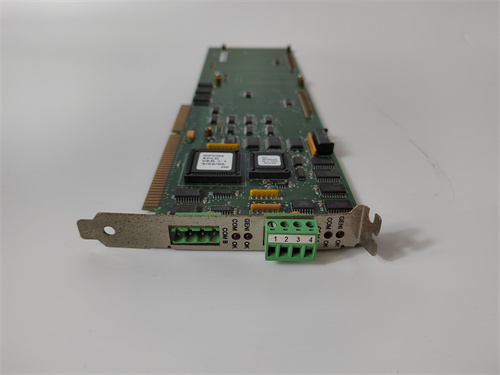

GE IC660ELB921M

Description

Product Overview and Description

The GE IC660ELB921M is a specialized network bus extension module for the legacy GE Fanuc Series 90-70 PLC system, functioning as a critical component within the Genius I/O network architecture. This module’s primary role is to act as an active repeater and power inserter for the Genius bus, enabling the network to extend beyond its standard distance limitations or to branch into a star topology. The GE IC660ELB921M effectively regenerates the bus signal, allowing for longer cable runs and greater physical distribution of I/O blocks from the main controller. For engineers maintaining and extending existing Series 90-70 systems with distributed Genius I/O, this module is an essential tool for system layout flexibility.

Product Parameters

• Module Type: Genius Bus Extender / Repeater Module.
• Compatibility: GE Fanuc Series 90-70 PLC with Genius I/O Network.
• Function: Active signal repeater and bus power inserter.
• Bus Standard: Genius Bus (Proprietary GE Serial Fieldbus).
• Data Rate: 153.6 Kbaud (matches the standard Genius bus speed).
• Topology Support: Enables star or branched network topologies from a single bus drop, in addition to extending linear daisy-chains.
• Power Insertion: Provides +24V DC power to the extended branch of the Genius bus, reducing voltage drop issues.
• Isolation: Provides electrical isolation between the input and output bus segments.
• Diagnostics: Status LEDs to indicate power and communication health on both sides of the repeater.
• Power Requirements: Requires an external 24V DC power source for its operation and to power the downstream bus segment.
• Connectors: Typically two 9-pin D-sub connectors (IN and OUT) for Genius bus cable.

Advantages and Key Features

1. Extended Network Range: The core advantage of the GE IC660ELB921M is its ability to overcome the standard cable length limitations of the Genius bus, allowing for I/O placement over a much wider physical area within a plant or facility.
2. Topology Flexibility: It breaks the constraint of a strict daisy-chain, enabling the creation of branch lines. This allows for more logical and efficient wiring to machine cells or distant equipment clusters from a single bus drop.
3. Signal Regeneration: By actively repeating the bus signal, it ensures signal integrity and strength over long distances, preventing communication errors caused by attenuation or noise.
4. Power Boosting: Its integrated power insertion capability prevents the 24V DC bus power from dropping below operational levels on long or heavily loaded branches, ensuring reliable operation of all downstream Genius blocks.
5. System Simplification: The use of a GE IC660ELB921M can often eliminate the need for a second, entirely separate Genius bus and controller, consolidating control and simplifying spare parts management.

Application Cases in Various Fields

• Large Manufacturing Cells: Distributing Genius I/O blocks across a wide-area automotive body shop or a large assembly cell, where sensors and actuators are spread over hundreds of feet from the central PLC cabinet.
• Water Treatment Plants: Extending control from a main pump house to remote chemical dosing stations, filter beds, or clarifiers located significant distances away using a single bus and the GE IC660ELB921M.
• Warehouse Conveyor Systems: Managing I/O for a lengthy conveyor sortation system that winds through a distribution center, where a single linear bus run would be impossible or exceed length limits.
• Factory-Wide Distribution: Creating a branched network from a central control room to multiple, discrete production lines in different sections of a facility.

Comparison with Competing Products

Within the Genius ecosystem, the GE IC660ELB921M was the dedicated solution for bus extension. Competing products would be bus repeaters or extenders from other industrial fieldbus systems (e.g., PROFIBUS repeater, DeviceNet repeater). Its function is analogous to these but is protocol-specific. Compared to installing a second Genius bus controller (IC693DNM200) and creating a separate network, the bus extender is a more cost-effective and simpler solution for pure physical expansion without a logical segmentation need. For modern systems, Ethernet-based I/O with standard network switches offers greater distance and topology flexibility inherently, but for legacy GE Series 90-70 systems, the GE IC660ELB921M remains the prescribed method for network expansion.

Selection Suggestions and Precautions

• Selection Advice:
  • Distance & Topology Analysis: Use the GE IC660ELB921M when your planned Genius bus layout exceeds the standard maximum cable distance (approx. 7500 ft at 153.6Kbaud) or when a star/branch topology is required for efficient wiring.
  • Power Budget Calculation: Ensure the external 24V DC power supply for the extender is sized to handle the combined power requirements of all Genius blocks on the extended branch, in addition to the extender itself.
  • Legacy System Consideration: This is exclusively for expanding existing Series 90-70/Genius systems. It is not applicable to newer GE PLC platforms like Rx3i or PACSystems.
• Important Precautions:
  • Bus Termination Rules: Remember that each segment of the Genius bus created by the extender must be properly terminated at its physical ends. The extender itself does not provide termination.
  • Single Extender per Segment: Do not connect the output of one GE IC660ELB921M to the input of another. They are designed for a single extension per branch.
  • Power Sequencing: It is good practice to ensure the extender’s 24V DC power is stable before applying power to the main Genius bus controller to avoid communication faults during startup.
  • Addressing: The extender module itself does not have a Genius address. Addressing is only for the I/O blocks (1-31) on the bus segments.
  • Cable Specification: Always use approved, shielded Genius bus cable for all segments. Maintain proper shield grounding practices (typically at one end only) to preserve noise immunity.
