GE IC660BBD025

Description

Product Description

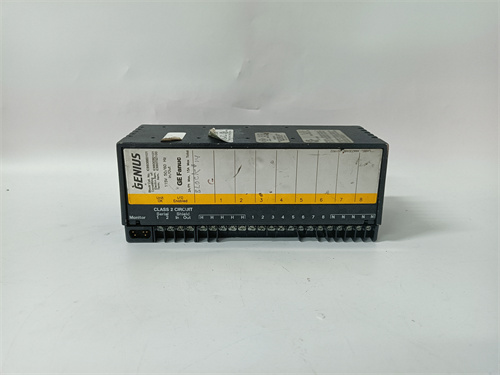

GE IC660BBD025 is a digital input module for the GE Genius distributed I/O system, compatible with Series 90-30 and Series 90-70 PLCs. This module, designated as a BBD (Block, Binary Input), functions as a remote sensor interface, converting the state of field devices into digital signals for the PLC. Its primary role is to provide isolated, reliable sensing of discrete on/off states from devices like limit switches, pushbuttons, proximity sensors, and selector switches located away from the main control cabinet. As part of the Genius I/O block family, the IC660BBD025 enables a decentralized control architecture, significantly reducing the cost and complexity of long home-run wiring. The reliability of individual I/O blocks like the IC660BBD025 is fundamental for accurate process monitoring and interlocking. For engineers implementing distributed control, the GE IC660BBD025 offers a robust and modular solution for field device integration.

Product Parameters / Technical Specifications

• Manufacturer: GE Fanuc (now part of Emerson)
• Series: Genius I/O System
• Functional Designation: Digital Input Block (DC Sinking)
• Input Type: Discrete (ON/OFF) DC inputs.
• Input Voltage: Typically rated for a 24 VDC input signal, which is the industrial standard for sensor interfaces.
• Input Logic: Configured as Sinking inputs (also known as NPN style). This means the input circuit is completed (turns ON) when the field device connects it to 0VDC (common).
• Input Channels: Contains a specific number of isolated input channels (e.g., 8 or 16 points) in a single module.
• Isolation: Input channels are typically isolated in groups from the logic side and from each other.
• Communication: Interfaces with the PLC via the Genius serial bus through a Genius Bus Controller (GBC) module.
• Power Supply: Requires an external 24VDC power source for the field sensor loop. The logic side may be powered via the Genius bus or a separate terminal.
• Diagnostics: Features LED status indicators for communication, power, and per-channel input status.
• Configuration: Addressed and configured using the PLC’s programming software (Proficy Machine Edition, Logicmaster).

Advantages and Key Features

• Distributed Architecture: Allows I/O to be placed in close proximity to field sensors, drastically reducing wiring costs, installation time, and troubleshooting complexity.
• High Density and Modularity: Provides multiple input points in a compact, self-contained block, optimizing space and simplifying system expansion.
• Clear Diagnostic Visibility: Per-point and module-level LEDs provide instant visual confirmation of sensor state and block health, enabling rapid fault location.
• Hot-Swappable Capability: In systems designed for it, a failed GE IC660BBD025 block can often be replaced without shutting down the entire Genius network, minimizing production downtime.
• Robust Industrial Design: Built to withstand electrical noise, vibration, and wide temperature ranges typical of factory and plant environments.
• Proven Technology: The Genius I/O system is renowned for its reliability and longevity in demanding applications.

Application Cases in Industry

• Distributed Machine Sensing: Used on individual stations of an automated assembly line to read the status of photoelectric sensors, part-present probes, and fixture clamps.
• Material Handling Control: Monitors limit switches on conveyor sections, position sensors on diverters, and bin-level switches in a distributed sorting or warehouse system.
• Process Area Monitoring: Reads the status of local pushbuttons, valve limit switches, and tank level switches in a remote area of a chemical plant or water treatment facility.
• Factory Floor Interlocks: Provides safety and operational interlock inputs from guard doors, emergency stops, and mode selector switches located on machinery.

Comparison with Competing Products

Selection Suggestions and Precautions

1. Verify Sourcing vs. Sinking: Critical. The GE IC660BBD025 is a sinking (NPN) input block. It must be used with sourcing (PNP) field devices or dry contacts that switch the positive (24VDC) side of the sensor loop. Using sinking sensors will not work.
2. Plan the Sensor Power Supply: You must provide a separate, properly sized 24VDC power supply for the field sensor circuits connected to the block. This supply is separate from the logic power.
3. Set Correct Genius Bus Address: Each IC660BBD025 block on a Genius network must have a unique address set via its rotary switches. Plan the addressing scheme carefully to avoid conflicts.
4. Wiring Practices: Use correct gauge wire. For long sensor runs or in noisy environments, consider using shielded cable and grounding the shield at the block end only to prevent noise pickup.
5. Software Configuration: The block must be correctly added to the PLC’s I/O configuration in the programming software, and its data must be mapped into the PLC’s memory for use in the control logic.
6. Sourcing for Legacy Systems: The Genius platform is mature. Source the IC660BBD025 from reputable suppliers who specialize in legacy GE systems and can verify the block’s functionality.
