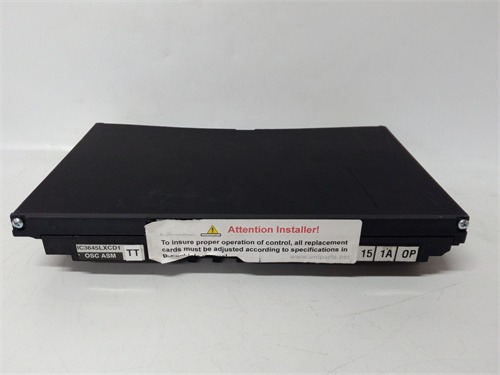

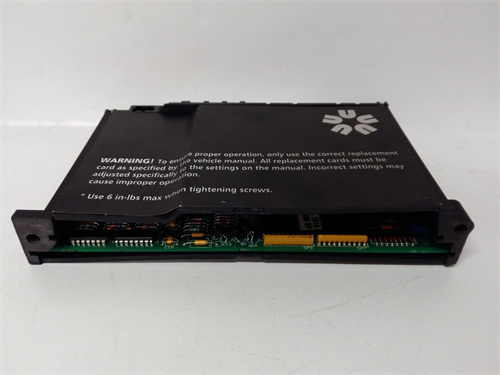

GE IC3645LXCD1 | DC Drive Controller, 24V-48V, 400A

Description

Product Introduction

The GE IC3645LXCD1 is a traction controller from the EV-100 LX series, purpose-built for Class I and Class II electric forklifts. If you’ve got a lift that’s lost its creep speed or throws comm errors on startup, this is the module handling the hydraulic and drive functions.

Rated for 400 amps, it uses a separately excited motor design to give you better torque at low speeds compared to older series-wound units—think controlled acceleration when maneuvering in a trailer. We’ve seen these units outlast the trucks they’re installed in, provided the cooling fins stay clear of lint and debris.

Key Technical Specifications

Compatible Replacement Models

Finding a direct drop-in for these drives requires careful attention to the software revision and the wiring harness pinout. Here’s how the alternatives stack up:

• ✅ Drop-in Replacement: Curtis/Albright 1236 or 1238 Series (with custom programming). While not a direct “bolt-in” without tuning, the Curtis AC and DC controllers are the modern standard for retrofitting these trucks. Budget for programming time to match the GE acceleration curves.
• ⚠️ Software Compatible: GE IC3645SR4C404 (or similar SR models). This is a “sibling” model often found in the same trucks. Verify the specific OEM part number from your lift manufacturer (e.g., Clark, Hyster, Yale). A mismatch here usually means the truck runs wide open or not at all.
• ❌ Hardware Incompatible: SEVCON models without an adapter harness. Sevecon makes good controllers, but their pinouts and mounting hole patterns rarely match the GE LX series footprint. Swapping to a Sevecon typically means fabricating a new mounting plate and wiring harness—only worth it if you’re doing a full fleet conversion.

Frequently Asked Questions (FAQ)

Q: Can I replace my IC3645LXCD1 without calling a programmer?
It depends. If you have a truck that ran with this exact part number and the same OEM software sticker, you can swap it. However, we’ve pulled three of these from a bin that looked identical but had different throttle curves. If the truck jerks or has no creep, you’ll need a handheld programmer to match the acceleration and ramp rates to your specific lift model.

Q: What causes these controllers to fail?
In our experience, two things: thermal stress and moisture. These units pull serious amperage. If the thermal paste between the base and the mounting plate dries out, or if the fins are clogged with paper dust, the SCRs overheat. Also, forklifts live in cold warehouses; condensation inside the case can corrode the main power lugs.

Q: How do I test if my controller is bad before buying a new one?
Start with the basics. Disconnect the battery and check the resistance between the B+ and B- terminals. A dead short usually means blown SCRs. Next, power it up (with the truck on blocks) and verify you have 0-10V or PWM at the throttle signal wires. If the controller isn’t outputting voltage to the motor but has power and throttle signal, the logic board is likely toast.

Q: Is the IC3645LXCD1 a “separately excited” controller?
Yes, it is. That means it controls the field current independently from the armature. This gives you better plugging (reverse) and creep control. If you try to run a series-wound motor with this controller, it won’t work—you’ll get no low-speed torque and probably a fault code.

Q: What’s the typical lead time on a refurbished unit?
It varies. A good refurbisher will do more than just clean it. They should be replacing the electrolytic capacitors (they dry out after 10+ years) and testing the board in a load bank. A reputable supplier will have them in stock, but if they need to rebuild one, add 3-5 business days for the burn-in test.
