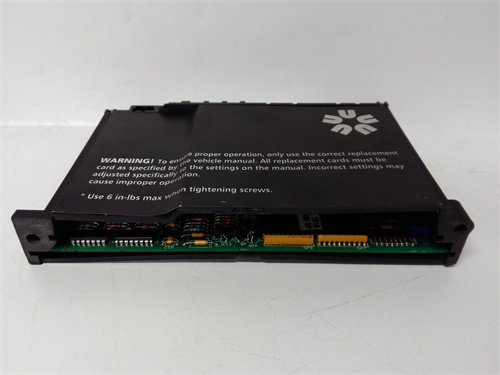

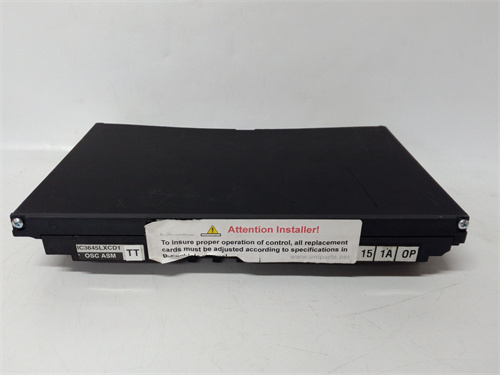

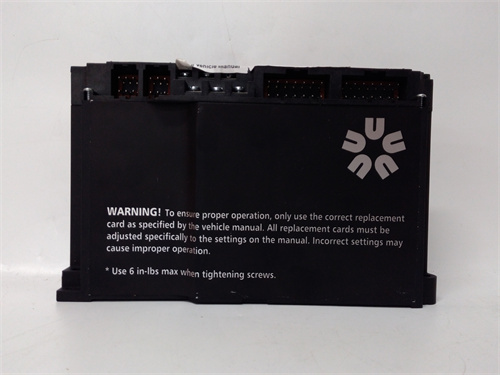

GE IC3645LXCD1

Description

Product Description

GE IC3645LXCD1 is a main control and regulator printed circuit board (PCB) assembly for a GE DC motor drive, specifically from the SR or DC-300 series. This component is not a PLC module but a vital internal electronic board that serves as the “brain” of a legacy DC drive system. The primary function of the GE IC3645LXCD1 board is to house the control logic, firing circuits, feedback loops, and protection circuitry required to convert incoming AC power into precisely controlled DC output for powering and regulating the speed/torque of a DC motor. It processes operator commands and feedback signals (from tachometer or armature voltage) to generate timed gate pulses for the drive’s thyristor (SCR) power stack. The performance and reliability of the entire DC drive are contingent upon this central control board. For maintenance engineers, sourcing a replacement IC3645LXCD1 assembly is often the most efficient way to repair a failed drive without replacing the entire unit.

Product Parameters / Technical Specifications

• Manufacturer: GE (General Electric) – Industrial Systems (Drive Division)
• Product Line: GE DC Motor Drive (e.g., SR Series, DC-300)
• Functional Designation: Main Control / Regulator Board Assembly
• Key Components: Contains integrated circuits (op-amps, logic chips), potentiometers for calibration, firing pulse transformers, and connector interfaces.
• Control Functions: Manages speed regulation, current limit, IR compensation, field control, and acceleration/deceleration ramps.
• Input Signals: Accepts command signals (e.g., 0-10 VDC, 4-20 mA) from a PLC or potentiometer, and feedback signals from motor tachometer or armature voltage.
• Output Signals: Generates isolated gate pulse trains to fire the SCRs in the associated power module.
• Protections: Includes circuitry for over-current, over-speed, and loss of feedback protection.
• Form Factor: A proprietary PCB designed to slot into a specific chassis within the DC drive cabinet.

Advantages and Key Features

• Complete Control Solution: Integrates all analog and digital control functions onto a single, replaceable assembly, simplifying troubleshooting and repair.
• Direct Replacement: Offers an exact form, fit, and functional replacement for the original failed board, ensuring compatibility with the existing power stack, operator interfaces, and motor.
• Restores Drive to Factory Specs: Replacing the core control board with a genuine GE IC3645LXCD1 typically restores the drive’s original performance and tuning characteristics.
• Calibration Adjustments: Includes onboard potentiometers (pots) for fine-tuning critical parameters like min/max speed, current limit, and stability, allowing precise adaptation to the connected motor.
• Cost-Effective Repair: Swapping this board is significantly more economical than replacing the entire DC drive system, minimizing downtime and capital expenditure.

Application Cases in Industry

• Legacy DC Motor Drive Repair: Used to repair critical DC drives powering machine tools (lathes, mills), extruders, winders, and calenders in manufacturing plants.
• Material Handling Systems: Repairs drives for DC motors on older cranes, hoists, and large conveyor systems where constant torque at low speed is required.
• Mining and Metals: Used in the maintenance of DC mill motors in steel rolling mills or on mine hoists where robust speed control is essential.
• Test Stands and Simulators: Repairs drives used in dynamic mechanical testing applications.

Comparison with Competing Products

Selection Suggestions and Precautions

1. Exact Drive Model Cross-Reference: Imperative. The GE IC3645LXCD1 board is designed for specific drive models (e.g., SR20, SR40, DC-300). You must verify its compatibility with the exact model and horsepower rating of your DC drive from the drive’s nameplate or original manual.
2. Diagnose the Root Cause: Before installing a new board, investigate what caused the original failure. Check for shorted SCRs in the power stack, blown fuses, faulty field supply, or a failed motor tachometer. Installing a new IC3645LXCD1 into a system with an unresolved fault may cause immediate re-failure.
3. Document Settings and Calibrate: Before removing the old board, carefully note the positions of all calibration potentiometers or take high-resolution photos. The new board will require calibration to match the motor and application. Have the drive’s manual available for the calibration procedure.
4. Electrostatic Discharge (ESD) Safety: Handle the new PCB as a static-sensitive device. Use an ESD wrist strap and work on an anti-static mat.
5. Inspect Connectors and Sockets: Examine the mating connectors, cables, and the drive’s backplane socket for damage, corrosion, or burnt pins. Clean or repair as necessary before installation.
6. Source from Specialized Drive Repair Vendors: Purchase the IC3645LXCD1 from suppliers who specialize in industrial drive repair. They often provide tested/refurbished boards with a warranty and can offer critical technical support for installation and calibration.
