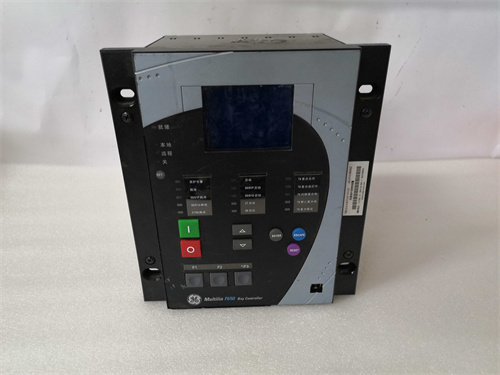

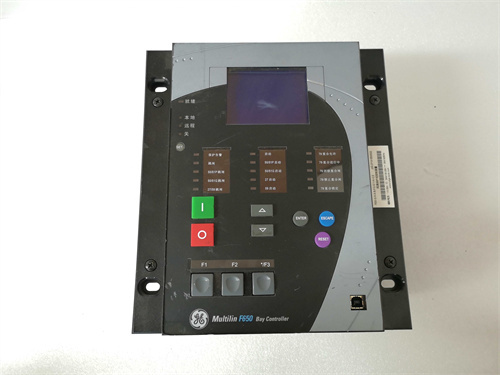

GE F650-G-N-A-B-F-2-G-1-HI-C-E | Bay Controller, Ethernet, Modbus

Description

Product Introduction

That substation in the Midwest—the one with the 34.5kV feeders serving an industrial park—had a breaker failure last spring. The line tripped, and the operator couldn’t reclose. The SCADA showed “breaker fail” but no details. The tech on site pulled the event logs from the F650 controlling that bay. The trip was caused by a phase overcurrent, but the breaker didn’t open—the trip coil was open. The F650 had sent the signal, but the breaker never moved. The logs proved it wasn’t the relay’s fault. One bad breaker mechanism, one $500 relay that did its job perfectly.

The GE F650-G-N-A-B-F-2-G-1-HI-C-E is a bay controller from GE’s F650 family, designed for substation automation. It combines protection functions (overcurrent, voltage, frequency) with bay control logic (breaker control, disconnector interlocking, synchrocheck). The model code breaks down like this:

• G: Standard housing
• N: No front display (blank cover)
• A: 8 digital inputs, 4 digital outputs
• B: Ethernet and RS485 with Modbus protocol
• F: 48-250V DC/AC power supply
• 2: 2 analog inputs (4-20 mA)
• G: Standard accuracy
• 1: One set of protection curves
• HI: High interruptive capacity outputs
• C: Conformal coating
• E: Extended temperature range

In a substation, it mounts in a rack or panel, connected to CTs, PTs, and breaker controls. It talks to the SCADA system via Ethernet or serial, reporting status and accepting commands.

Key Technical Specifications

Quality Inspection Process (SOP Transparency)

A protection relay gets a full functional test. Here’s our process.

1. Incoming Verification
   • Decode the model number to verify all options match the order.
   • Visual inspection: Look for bent pins on the rear connector. Check the front panel (blank cover) for scratches.
   • Inspect the PCB for conformal coating—should be even, no bubbles.
   • Verify the serial number and firmware version label.
2. Power-On Self-Test
   • Apply rated power (we use 120V AC unless specified).
   • Watch the “POWER” and “RUN” LEDs.
   • Connect to the front serial port (or Ethernet) using GE’s Enervista software.
   • Verify the relay is recognized and passes its internal diagnostics.
3. Protection Test
   • Inject current via a test set (we use an Omicron CMC 256).
   • Test overcurrent (50/51) at multiple points—verify trip times match the curve.
   • Test voltage protection (27/59) by varying the applied voltage.
   • Test frequency protection (81) by varying the frequency.
4. Digital Input Test
   • Apply 24V DC to each digital input in sequence.
   • Verify the input state changes in the software.
   • Test at minimum and maximum voltage (per spec).
5. Digital Output Test
   • Command each output to operate from the software.
   • Verify the contact changes state (listen for click, measure continuity).
   • Test at rated load (sample basis).
6. Analog Input Test
   • Apply 4, 12, and 20 mA to each analog input.
   • Verify the value reads correctly in the software (±0.5%).
7. Communication Test
   • Connect via Ethernet, verify Modbus TCP communication.
   • Connect via RS485, verify Modbus RTU communication.
   • Test DNP 3.0 if applicable.
8. Isolation Test
   • 500V megger between power supply terminals and ground—>10 MΩ.
   • 500V megger between contact outputs and ground—>10 MΩ.
9. Thermal Soak
   • 4 hours at 60 °C in a thermal chamber, running continuous protection test.
   • Monitor for any faults or communication errors.
10. Firmware Verification
    • Read the firmware version via Enervista.
    • Log it in the test report.
    • If the customer requests a specific version, we verify before shipping.
11. Final QC & Packaging
    • QC sticker with test date and operator initials.
    • Wrap in anti-static bag.
    • Double-box with foam padding.
    • Test report included—protection test results, communication logs.

Field Replacement Pitfalls

I’ve swapped these in substations, power plants, and industrial facilities. Here’s where people go wrong.

❗CT Wiring
The F650 expects the CTs to be wired with correct polarity. If you reverse a phase, the directional protection will operate incorrectly. Check the wiring against the manual.

PT Fusing
The voltage inputs need fusing. If you skip the fuses, a fault in the relay could short the PTs. Always use the specified fuses.

RS485 Termination
RS485 networks need termination resistors at both ends. If you skip them, reflections cause data errors—especially at higher baud rates.

Battery Backup
The F650 has an internal battery for the real-time clock. If the battery is dead, the clock resets on power cycle. Check the battery status in Enervista.

Firmware Compatibility
Different firmware versions have different features. If you’re replacing a relay, make sure the new one has firmware that supports your application.

Nail these five, and your F650 will protect that bay for years.

New Original vs. Refurbished: Why It Matters

“New Original (New Surplus)” means this relay was manufactured by GE, packed in its original box, and never installed. The battery is fresh, the contacts have zero operations, and the firmware is as shipped.

Refurbished risk in plain terms
A refurbished F650 often comes from a decommissioned substation. It may have operated for years—contacts worn, battery dead, capacitors aged. A refurbisher tests it at a few points and calls it good. In the field, it may fail to trip when needed.

Real cost of a refurbished failure
If this relay fails to trip on a fault, the upstream breaker may have to clear it—cascading outages. The cost of one such event dwarfs the price difference.

What we provide as proof

• GE box (or photos).
• Serial number recorded.
• Protection test results.
• Communication logs.
• 12‑month warranty.

Pricing context
We’re priced 30% above the cheapest “pulled” F650s and 20% below GE’s current list price. That pays for the full functional test, the firmware check, and the warranty.

Performance Benchmarks & Test Results

Test conditions: Omicron CMC 256, 120V AC power, ambient 24 °C.

We keep the full test data—ask, and we’ll email the PDF.
