GE EX2100

Description

Product Overview and Description

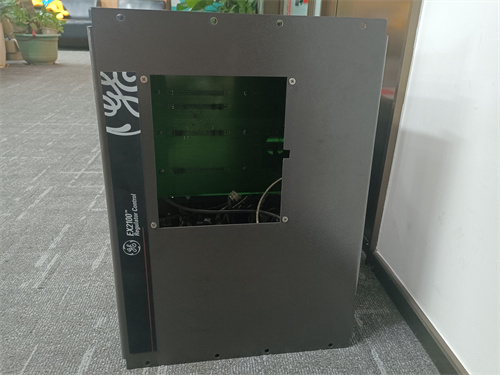

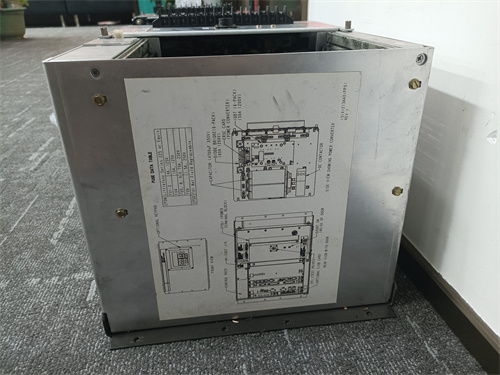

The GE EX2100 is a state-of-the-art excitation control system designed for synchronous generators in power generation applications. This system, part of GE’s extensive portfolio of power generation controls, provides precise regulation of generator voltage and reactive power, ensuring stable and efficient operation of power plants. The GE EX2100 is a critical component for thermal, hydro, and gas turbine generators, as well as industrial synchronous motors, delivering advanced control capabilities, comprehensive protection, and seamless integration with plant distributed control systems (DCS).

The EX2100 system is engineered for the demanding environments of power generation, featuring rugged construction, high reliability, and advanced diagnostic capabilities. It utilizes digital signal processors and high-power thyristor bridges to provide fast and accurate control of generator field current. The use of the GE EX2100 ensures optimal generator performance, compliance with grid codes, and enhanced power system stability, making it an essential component for modern power plants worldwide.

Technical Parameters

Based on the analysis of GE EX2100 documentation, the system possesses the following key characteristics:

• Device Type: Digital Excitation Control System for synchronous generators.
• Generator Types: Suitable for steam turbines, gas turbines, hydro generators, and industrial synchronous motors.
• Control Functions:
  • Automatic Voltage Regulator (AVR) for precise voltage control.
  • Power System Stabilizer (PSS) for damping power oscillations.
  • Reactive power (VAR) control.
  • Power factor control.
  • Field current limiting and protection.

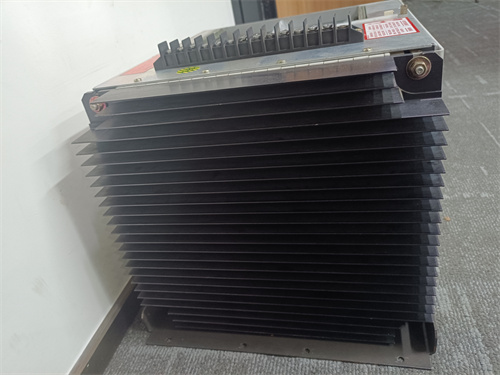

• Power Section: Utilizes high-power thyristor bridges (SCRs) for field current control.
• Redundancy: Available in redundant configurations (e.g., dual automatic channels) for maximum availability.
• Communication Protocols: Supports multiple protocols including Modbus, DNP3, and IEC 61850 for integration with plant DCS and SCADA.
• Protection Functions: Comprehensive generator protection including overexcitation, underexcitation, field ground fault, and loss of sensing.
• Diagnostics: Extensive self-diagnostics with event logging and waveform capture for post-event analysis.
• User Interface: Local operator panel for monitoring and control, plus engineering software for configuration and troubleshooting.
• Compliance: Meets international standards for excitation systems including IEEE 421.5 and relevant grid codes.

Advantages and Key Features

The GE EX2100 offers several critical advantages for power generation:

• Precise Voltage Control: The EX2100 provides accurate and fast voltage regulation, ensuring generator output meets grid requirements and maintains power quality.
• Grid Code Compliance: With advanced power system stabilizer and reactive power control functions, the GE EX2100 helps generators comply with increasingly stringent grid interconnection requirements.
• High Availability: Redundant configurations of the EX2100 ensure continuous operation even if a component fails, maximizing plant availability and preventing costly outages.
• Comprehensive Diagnostics: The system’s extensive diagnostic capabilities help operators identify potential issues before they cause failures, enabling predictive maintenance.
• Seamless Integration: The GE EX2100 integrates easily with plant DCS and SCADA systems through standard communication protocols, providing operators with complete visibility of generator status.

Application Cases in Key Industries

The GE EX2100 is used in a wide variety of power generation applications worldwide:

• Thermal Power Plants: In coal, gas, and nuclear plants, the EX2100 controls excitation for large turbogenerators, ensuring stable operation under varying load conditions.
• Gas Turbine Power Plants: The GE EX2100 provides excitation control for gas turbine generators in simple cycle and combined cycle plants.
• Hydroelectric Plants: In hydro plants, the EX2100 regulates voltage for generators driven by hydraulic turbines, including pumped storage applications.
• Industrial Cogeneration: The system controls excitation for generators in industrial facilities with combined heat and power (CHP) systems.
• Synchronous Motor Drives: The GE EX2100 can also be used for excitation control of large synchronous motors in applications such as compressors and mills.

Comparison with Competitors

In the excitation control system market, GE’s primary competitors are ABB (UNITROL), Siemens (THYRIPOL), and Basler Electric.

• GE EX2100 vs. ABB UNITROL: Both are leading excitation systems. The EX2100 is GE’s flagship product, widely used in GE turbines, while ABB’s UNITROL is common with ABB generators. The choice often depends on the turbine/generator manufacturer and installed base.
• GE EX2100 vs. Siemens THYRIPOL: Siemens offers its own excitation systems. The GE EX2100 is particularly strong in North American markets and in applications with GE turbines.
• GE EX2100 vs. Basler Electric: Basler offers smaller, cost-effective excitation systems. The EX2100 is a full-featured system for large utility-scale generators, offering more advanced functions and higher power ratings.

Selection Recommendations and Precautions

1. Generator Compatibility: The GE EX2100 must be properly sized and configured for your specific generator (power rating, field voltage/current, response time requirements). Consult with GE application engineers.
2. Grid Code Requirements: Ensure the EX2100 configuration includes the specific grid code compliance features required by your local transmission system operator.
3. Redundancy Level: For critical applications where generator availability is paramount, consider redundant EX2100 configurations (dual auto channels) to eliminate single points of failure.
4. Integration Planning: Plan for integration with your plant DCS or SCADA system, ensuring communication protocols match and data mapping is properly configured.
5. Qualified Personnel: Installation, commissioning, and maintenance of the GE EX2100 should only be performed by personnel specifically trained on GE excitation systems, due to the critical nature of the application and the high voltages involved.
