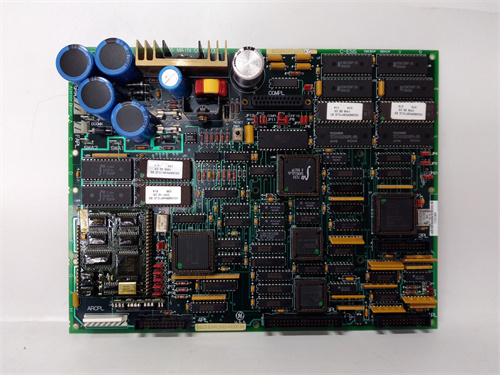

GE DS215DMCBG1AZZ03A | Mark V Main Control Board

Description

Product Core Brief

• Model: DS215DMCBG1AZZ03A
• Brand: GE Speedtronic / General Electric
• Series: Mark V Turbine Control System
• Core Function: Main processor board for Mark V turbine control — executes control algorithms, I/O management, and communication.
• Type: CPU / Main Control Board
• Key Specs: 32‑bit processor, 16 MB memory, multiple communication ports, watchdog timer.
• Condition: New Original (New Surplus) — not refurbished.

Product Introduction

The turbine trips. The alarm log is empty. The operator says the display froze, then the unit shut down. You walk to the rack, see the green LED on the DS215DMCBG1 is dark, and you already know the answer.

This board is the brain of the Mark V. It runs the speed control, the temperature calculations, the fuel valve positioning, and the safety logic. When it goes, the turbine goes with it.

I’ve pulled these out of gas turbines that had been running for 15 years straight. The boards don’t fail often. When they do, it’s usually the onboard power supply—the little DC‑DC converters that feed the processor and memory. They start to brown out, the processor resets, and the turbine trips on a “loss of communication” fault that never actually happened. The fix is a board swap. Thirty minutes, if the spare is on the shelf. If it’s not, you’re down for days.

Key Technical Specifications

Quality Inspection Process (SOP Transparency)

This board gets the full treatment. It’s too expensive to guess.

1. Incoming Verification
   This batch came from a GE service center surplus sale. Original boxes, factory seals. Serial numbers traceable to 2008–2010 production. Unopened anti‑static bags.
2. Visual Inspection
   First: the edge connector. Gold fingers should be bright, no scoring. Next: the electrolytic caps around the power input. Any bulging is a reject—those are the DC‑DC converters. Also check the battery. If it has one (some revisions do), we read the date code. A 2008 battery is dead. We replace it.
3. Live Functional Test
   We test the DS215DMCBG1AZZ03A in a Mark V test rack with a full I/O complement. Procedure:
   • Power‑up: verify all LEDs light, board boots to ready state
   • Firmware read: verify version matches spec, log it
   • Memory test: write/read test on all RAM, verify checksum on flash
   • Communication test: ping Ethernet ports, loopback serial ports
   • I/O loop test: exercise all I/O racks through the VME bus, verify data integrity
   • Soak test: run a full control simulation for 2 hours, monitor for resets or errors
4. Watchdog Test
   We force a processor halt and verify the watchdog timer trips within 100 ms. The board should reset and recover cleanly.
5. Final QC & Packaging
   Passed boards go back in anti‑static bags, then bubble wrap, then a carton with QC sticker showing test date, firmware version, memory test results, and soak test duration.

Field Replacement Pitfalls

The main processor is the heart of the system. Mistakes here cost days.

1. Firmware mismatch.
   The DS215DMCBG1AZZ03A runs specific firmware. If you swap in a board from a different turbine, the control parameters won’t match. The turbine might start—or it might not. I’ve seen a crew swap a board from a 7FA into a 9E and spend the next six hours reloading firmware. Record the existing firmware version before you pull the old board.
2. ❌ Battery failure.
   Some revisions have a lithium battery that backs up the real‑time clock and configuration data. If that battery is dead, the board will run fine—until you power it down. Then it forgets the configuration. We replace batteries during testing. If you get a board from another source, ask if the battery was changed.
3. Backplane slot position.
   The DS215DMCBG1 goes in slot 1 of the Mark V rack. Not slot 2. Not slot 3. Slot 1. I’ve watched a tech insert it into the wrong slot, power up, and wonder why nothing worked. The board booted. It just couldn’t talk to the I/O.
4. ESD in winter.
   This board has CMOS logic. A winter day, a wool sweater, and a tech who skips the wrist strap can kill an input buffer. I’ve seen it happen. The board passes power‑up self‑test but fails the I/O loop test. Wrist strap. Every time.
5. Power supply rails.
   The board runs on +5 V and ±12 V from the backplane. If the backplane power supply is failing, the board will act flaky—random resets, communication dropouts. Don’t swap the board until you’ve verified the backplane voltages. A new board won’t fix a bad power supply.

Get these five right and you’ll cut rework time by 90%.

New Original vs. Refurbished: Why It Matters

“New Original (New Surplus)” means this GE DS215DMCBG1AZZ03A was built by GE, never installed, and never repaired. The battery is new (we replace it if needed). The flash memory hasn’t been written and erased hundreds of times. The electrolytic caps are fresh.

Refurbished Mark V processor boards are risky. The flash memory has a finite write cycle life. A refurb board that was used as a test platform may have had firmware loaded dozens of times. The flash could be near end‑of‑life. The battery is almost certainly dead. The caps have been thermally cycled. I’ve seen refurb boards that worked for six months then lost configuration on a power cycle. That’s a bad day.

What we provide:

• Traceable serial number (matches GE production records)
• Firmware version read and logged
• Full memory test (read/write on RAM, checksum on flash)
• 2‑hour soak test report
• Battery replaced if original date code > 5 years
• Original anti‑static bag (if available) or fresh bag with QC seal
• 12‑month warranty

Pricing context:
Our price sits above the cheapest used listings. It’s also below what a new board would cost if GE still made them. You’re paying for the test, the new battery, the warranty, and the certainty that the flash memory isn’t worn out.

Performance Benchmarks & Test Results

All tests performed on Mark V test rack, 25 °C ambient.

Thermal performance note:
At 60 °C, the processor runs warm—about 55 °C surface temp. That’s within spec. The board has no fan; it relies on cabinet airflow. If your rack is packed tight and the ambient is above 50 °C, consider adding a cooling fan. I’ve seen boards run for years at 65 °C without failure, but I’ve also seen them cook the power supply caps in that environment.

One more thing from the field:
The DS215DMCBG1AZZ03A has a small reset button on the front edge. It’s recessed—you need a paperclip to press it. I’ve seen techs use a screwdriver, slip, and short out a row of pins. Don’t. Use the reset function in the software. That button is for factory use only. If you need to reset the board, cycle the rack power. It’s safer.
