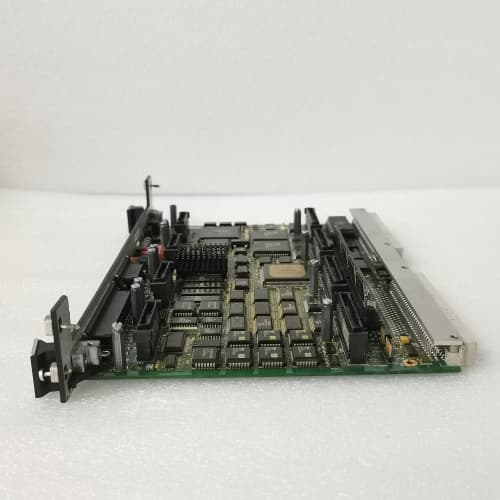

GE DS200VPBLG2A

Description

1. Product Overview

2. Product Parameters

2.1 Core Sensing & Monitoring Specifications

• Vibration Inputs: 8 channels (proximity probes: 3.3V/mm, accelerometers: 0-50g, velocity sensors: 0-50 mm/s)
• Temperature Inputs: 8 channels (RTD: Pt100/Pt1000, thermocouple: J/K/T/E)
• Vibration Measurement Range: 0–200 mils peak-to-peak (proximity probes), 0–50g RMS (accelerometers)
• Temperature Measurement Range: -200°C to +850°C (thermocouple), -200°C to +400°C (RTD)
• Accuracy: ±0.1 mils (vibration), ±0.5°C (temperature)
• Sampling Rate: 10 kHz per channel (vibration), 1 Hz per channel (temperature)

2.2 Electrical & System Parameters

• Power Supply: 5V DC (logic) + 24V DC (sensor power), dual redundant inputs
• Power Consumption: 4W (typical, full load)
• Isolation: 2500V AC sensor inputs to logic; 1500V AC channel-to-channel
• Alarm/Shutdown Outputs: 8 dry contact relays (Form C, 5A @ 250V AC)
• Communication Interfaces: Modbus RTU/TC, PROFINET IRT (for data transmission to DCS/SCADA)
• Diagnostic Features: Sensor fault detection (open/short), signal drift monitoring, self-test capability

2.3 Environmental & Mechanical Parameters

• Operating Temperature: -40°C to +75°C (extended industrial range)
• Storage Temperature: -40°C to +85°C
• Relative Humidity: 5% to 95% (non-condensing)
• Vibration Resistance: 5-500Hz, 5g (IEC 60068-2-6, turbine environment compliant)
• Shock Resistance: 50g (11ms half-sine wave, IEC 60068-2-27)
• Form Factor: Controller chassis-mounted board (Mark V/VI compatible), 170mm × 140mm × 35mm
• Weight: 0.6kg

2.4 Certifications & Compliance

• Industry Certifications: CE, UL/cUL 508, ATEX Zone 2, IECEx
• Safety Ratings: IEC 61508 SIL 2 (for machinery protection)
• Turbine Standards: API 670 (machinery protection systems), ISO 10816 (vibration measurement)
• EMI/EMC Compliance: EN 55032 (Class A), EN 61000-6-2 (industrial immunity)

3. Advantages & Features

1. High-Resolution Vibration & Temperature Monitoring: GE DS200VPBLG2A delivers ±0.1 mils vibration accuracy and ±0.5°C temperature accuracy, enabling early detection of turbine shaft misalignment, bearing wear, or lubrication degradation—critical for preventing costly machinery failures.
2. Multi-Sensor Compatibility: Support for proximity probes, accelerometers, RTDs, and thermocouples allows GE DS200VPBLG2A to monitor all key mechanical parameters of turbine systems with a single board, reducing hardware complexity and installation costs by 30%.
3. Configurable Alarm/Shutdown Logic: GE DS200VPBLG2A features user-programmable alarm thresholds and shutdown triggers (e.g., vibration >50 mils, temperature >150°C), enabling customization to match specific turbine manufacturer requirements and safety protocols.
4. Sensor Fault Detection & Self-Test: Built-in diagnostic capabilities identify open/short sensors or signal drift, while self-test functionality verifies board integrity—ensuring GE DS200VPBLG2A remains reliable and eliminates false alarms caused by faulty sensors.
5. Turbine-Grade Durability: -40°C to +75°C operating temperature range and 5g vibration resistance allow GE DS200VPBLG2A to perform reliably in harsh turbine room conditions, including high humidity, mechanical vibration, and electrical noise.

4. Application Fields & Cases

4.1 Application Fields

• Combined-Cycle Power Plants: Gas/steam turbine vibration monitoring, bearing temperature tracking, rotor imbalance detection
• Fossil Fuel Power Plants: Steam turbine machinery protection, generator bearing monitoring, pump vibration analysis
• Pipeline Compressors: Turbine/compressor surge detection, bearing temperature monitoring, shaft misalignment prevention
• Industrial Turbines: Compressor/pump driver vibration protection, gearbox temperature monitoring, mechanical overspeed detection

4.2 Typical Cases

1. Gas Turbine Bearing Failure Prevention (Europe): A German utility deployed GE DS200VPBLG2A in 20 combined-cycle power plant gas turbines to monitor bearing temperature and vibration. Early detection of a 2°C temperature rise and 5 mils vibration increase enabled proactive bearing replacement, avoiding a $1.2 million turbine overhaul and 2 weeks of unplanned downtime.
2. Steam Turbine Rotor Imbalance Detection (USA): A U.S. coal-fired power plant used GE DS200VPBLG2A in Mark V steam turbines to track rotor vibration. The board detected a gradual increase in vibration from 20 mils to 45 mils, triggering an alarm that led to rotor balancing—preventing a catastrophic rotor failure and $2 million in damages.
3. Pipeline Compressor Surge Protection (Middle East): A Saudi Arabian natural gas pipeline operator integrated GE DS200VPBLG2A into compressor turbine control systems to detect surge-induced vibration. The board triggered an anti-surge valve actuation within 10ms of detecting abnormal vibration, protecting the compressor shaft and avoiding $500,000 in repair costs.

5. Competitive Comparison

6. Selection Suggestions & Precautions

6.1 Selection Suggestions

1. Turbine Machinery Protection Systems: Choose GE DS200VPBLG2A for gas/steam turbines or pipeline compressors requiring SIL 2-certified vibration and temperature monitoring to prevent mechanical failures.
2. Multi-Parameter Monitoring Needs: Opt for GE DS200VPBLG2A to consolidate vibration, temperature, and bearing health monitoring into a single board (eliminating multiple standalone sensors/cards).
3. Harsh Environment Installations: Select GE DS200VPBLG2A for turbine systems in extreme temperatures (-40°C to +75°C) or high-vibration environments (e.g., desert pipeline compressors, arctic power plants).

6.2 Precautions

1. Installation Guidelines:
   • Install GE DS200VPBLG2A only in compatible Mark V/VI controller chassis; route sensor cables away from high-voltage wiring (≥480V) and use shielded cables to minimize EMI interference.
   • Calibrate vibration/temperature sensors with the board using GE-approved calibration tools before commissioning to ensure ±0.1 mils/±0.5°C accuracy.
2. Configuration Notes:
   • Set alarm/shutdown thresholds in accordance with turbine manufacturer specifications (do not exceed recommended limits) to avoid unnecessary shutdowns or equipment damage.
   • Enable sensor fault detection in the controller software to receive alerts for open/short sensors—replace faulty sensors immediately to maintain protection coverage.
3. Troubleshooting:
   • For erratic vibration readings: Check sensor alignment (proximity probes) or cable shielding (accelerometers); inspect for loose sensor mounting hardware (common in high-vibration environments).
   • For temperature drift: Verify RTD/thermocouple wiring (correct polarity for thermocouples) and replace sensors if calibration errors persist.
4. Maintenance:
   • Recalibrate sensors and the board annually (per API 670 standards) to maintain accuracy; replace sensor cables every 5 years to prevent signal degradation.
   • Inspect relay outputs quarterly (test alarm/shutdown triggers) to ensure they activate correctly during abnormal conditions.
