GE DS200TCTGG1AFF

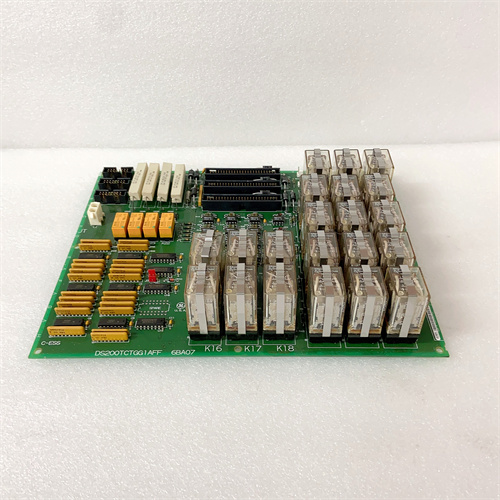

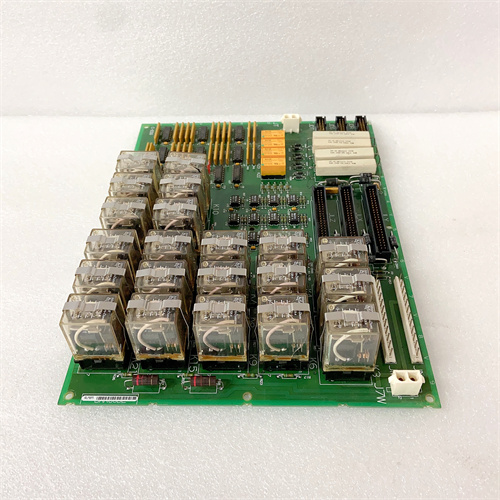

GE DS200TCTGG1AFF is a simplex trip board designed for GE Speedtronic Mark V turbine control systems, serving as a core component for turbine overspeed, overcurrent, and abnormal condition monitoring and protection. GE DS200TCTGG1AFF integrates 21 plug – in relays and 3×50 – pin + 2×12 – pin connectors, enabling flexible I/O signal routing and reliable trip logic execution. GE DS200TCTGG1AFF adopts a solid – state design with self – test capability, ensuring diagnostic efficiency and minimizing false trips.

Inquiry now
Manufacturer:

Our extensive catalogue, including , is available now for dispatch to the worldwide.
  • Email: jiedong@sxrszdh.com
  • Phone / Wechat：+86 15340683922

Description

Product Description

GE DS200TCTGG1AFF is a simplex trip board designed for GE Speedtronic Mark V turbine control systems, serving as a core component for turbine overspeed, overcurrent, and abnormal condition monitoring and protection. GE DS200TCTGG1AFF integrates 21 plug – in relays and 3×50 – pin + 2×12 – pin connectors, enabling flexible I/O signal routing and reliable trip logic execution. GE DS200TCTGG1AFF adopts a solid – state design with self – test capability, ensuring diagnostic efficiency and minimizing false trips. GE DS200TCTGG1AFF supports 24V DC control power and seamless integration with Mark V system components, streamlining retrofits and expansions. GE DS200TCTGG1AFF operates from – 40°C to +85°C, ideal for power plants, refineries, and petrochemical facilities requiring robust turbine protection. GE DS200TCTGG1AFF’s modular relay layout allows quick on – site replacement, reducing downtime during maintenance.

Product Parameters

Parameter Details
Module Type Simplex Trip Board (GE DS200TCTGG1AFF)
Core Function Turbine overspeed/overcurrent/abnormal condition protection; trip logic execution; self – test diagnostics
Compatible System GE Speedtronic Mark V turbine control systems
Control Power 24V DC
Relay Configuration 21 plug – in relays (K – series numbering)
Connectors 3×50 – pin (JLY/JLX/JLZ), 2×12 – pin (JN/JM)
Operating Temp – 40°C to +85°C
Humidity 0-95% RH, non – condensing
Dimensions 10.2″ × 7.9″ × 4.3″ (≈259mm × 201mm × 109mm)
Weight 5 lbs (≈2.27kg)
Protection Compliance IEC 61508 – 2 safety standards
Self – Test Built – in self – test for proactive fault detection

Advantages and Features

  1. Solid – State Reliability: GE DS200TCTGG1AFF’s solid – state design reduces mechanical wear, extending service life in high – vibration turbine environments.
  2. Plug – in Relay Modularity: 21 replaceable relays and standard connectors cut maintenance time by 60% vs. fixed – chassis designs.
  3. Comprehensive Self – Diagnostics: Built – in self – test identifies faults early, lowering unplanned downtime and improving system safety.
  4. Mark V Native Integration: It integrates seamlessly with Mark V systems, avoiding adapter costs and configuration delays.
  5. Wide Environmental Tolerance: It handles extreme temperatures and humidity, ensuring protection in harsh industrial sites.
  6. Clear Status Indication: LEDs provide real – time operational status, enabling quick operator response to alarms.

Application Cases in Application Fields

  • Power Plant Turbine Overspeed Protection: GE DS200TCTGG1AFF detected a 12% overspeed event in a 400MW gas turbine, triggering a trip in 8ms and preventing rotor damage.
  • Refinery Steam Turbine Retrofit: It replaced obsolete electromechanical trip relays in a 25 – year – old Mark V system, boosting protection reliability and reducing annual maintenance costs by $40k.
  • Petrochemical Turbine Backup Protection: GE DS200TCTGG1AFF acted as a redundant trip layer for a 150MW steam turbine, isolating a lubrication pressure fault and avoiding a 3 – hour production shutdown.
  • Industrial Turbine Fault Prevention: Its self – test capability identified a failing relay in a chemical plant’s turbine, allowing scheduled replacement and eliminating unplanned downtime.

Comparisons with Competing Products

Parameter GE DS200TCTGG1AFF Siemens 6DD1681 – 0AD2 (Turbine Protection Module) ABB HIEE300881R0001 (Emergency Trip Card)
Core Function Simplex trip for overspeed/overcurrent; self – test Basic overtemp/overcurrent trip General emergency trip control
Relay Count 21 plug – in 12 fixed 16 semi – modular
System Compatibility Mark V native Requires S7 adapter Limited AC 800M integration
Self – Test Built – in External test set required Basic diagnostic only
Operating Temp – 40°C to +85°C – 25°C to +70°C – 30°C to +75°C
Maintenance Plug – in relay swap Full board replacement Semi – modular

Selection Suggestions and Precautions

Selection Suggestions

  • Choose GE DS200TCTGG1AFF for Mark V turbine systems needing simplex trip protection with plug – in relays and self – test diagnostics.
  • Prefer it for power generation, refining, or petrochemical sites requiring wide – temp operation and quick maintenance.

Precautions

  • Use 24V DC control power to avoid damaging GE DS200TCTGG1AFF’s internal circuitry.
  • Test relays and self – test functions quarterly to ensure GE DS200TCTGG1AFF’s trip response accuracy.
  • Use shielded cables for connector wiring to minimize noise and prevent false trips with GE DS200TCTGG1AFF.
  • Replace failed relays with GE – approved parts to maintain GE DS200TCTGG1AFF’s protection performance.
  • Mount GE DS200TCTGG1AFF in vibration – isolated enclosures to extend its service life in turbine bays.
