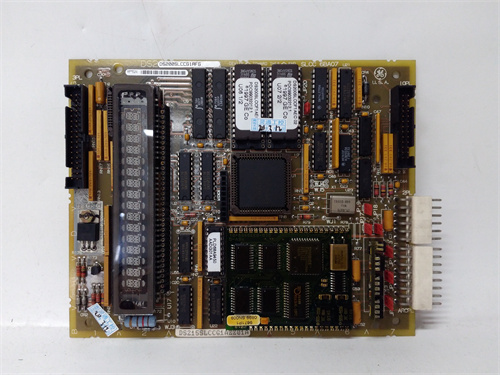

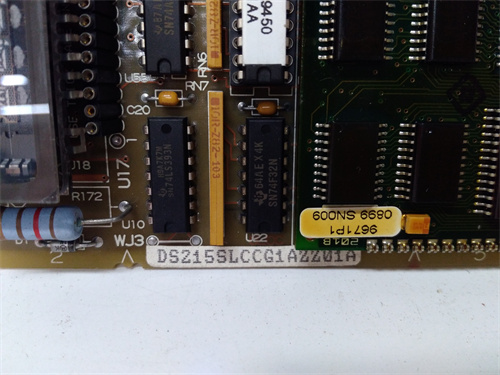

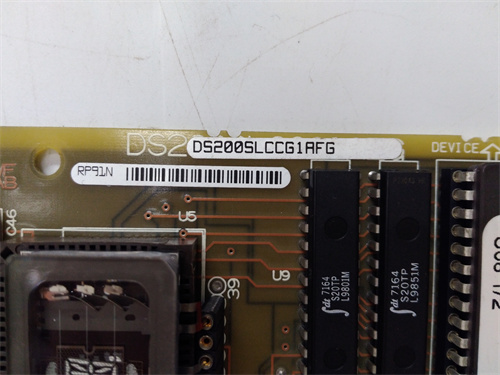

GE DS200SLCCG1AFG DS215SLCCG1AZZ01A

Product Description

The GE DS200SLCCG1AFG and its closely related variant, the DS215SLCCG1AZZ01A, are critical Slave Control and Communication modules within the GE Mark VI and Mark Vie gas/steam turbine control systems. These modules act as the primary I/O and processing hubs for individual turbine control racks, managing the local field device inputs (sensors, switches) and outputs (actuators, solenoids) while communicating with the central controller over a high-speed network. The GE DS200SLCCG1AFG is integral to the distributed architecture of the system, offloading I/O processing tasks and ensuring deterministic control at the rack level. For detailed technical specifications, installation manuals, and network configuration guides, the essential resource is the official GE Vernova support portal for the GE DS200SLCCG1AFG. The reliable operation of a turbine’s safety and sequencing controls depends heavily on the flawless performance of these SLCC modules. Correct configuration and health of the DS215SLCCG1AZZ01A are paramount for maintaining overall turbine availability and safety.

Product Parameters

• Manufacturer / Brand: GE (General Electric).
• Series: Mark VI / Mark Vie Turbine Control System.
• Models: DS200SLCCG1AFG, DS215SLCCG1AZZ01A (enhanced or later revision).
• Function: Slave Control and Communication Controller (SLCC) – a local I/O processor.
• Processor: Features a dedicated microprocessor for managing I/O scanning and executing local control logic.
• Communication: Connects to the central Turbine Control Unit (TCU) via a high-speed, deterministic network (e.g., UDH, Ethernet for Mark Vie).
• I/O Management: Interfaces with and controls all other I/O modules (DIDO, AIAO, TCIO) within its local VME rack, handling data concentration.
• Memory: Contains firmware and SRAM for logic execution and data storage.
• Diagnostics: Extensive self-diagnostics and status LEDs for module health, communication status, and I/O faults.
• Redundancy Support: Can be configured in redundant pairs (typically with another SLCC) for high-availability applications.
• Form Factor: A large VME-format card designed for installation in a Mark VI/Vie system rack.

Advantages and Features

• Distributed Processing: Offloads I/O scanning and simple control tasks from the main controller, improving overall system performance and scan rates.
• Deterministic Communication: Uses a real-time network protocol to ensure timely and reliable data exchange with the TCU, which is critical for turbine protection.
• High Reliability & Availability: Designed for continuous operation in power plant environments and supports redundant configurations to eliminate single points of failure at the rack level.
• Local Control Capability: Can execute simple logic (e.g., latching, timers) locally, allowing for faster response to critical conditions even if network communication is temporarily interrupted.
• Comprehensive Diagnostics: Provides detailed fault information at both the module and I/O channel level, enabling rapid pinpointing of field device or wiring issues.

Application Cases in Industry

• Gas Turbine Control Rack: A GE DS200SLCCG1AFG module serves as the master of the “Protection” rack, managing critical shutdown inputs (vibration, overspeed, flame detection) and outputs to trip solenoids.
• Steam Turbine Control Rack: In a combined-cycle plant, a DS215SLCCG1AZZ01A manages the I/O for the steam turbine’s valve control, lubrication system, and cooling systems.
• Compressor Control (Mechanical Drive): In an offshore platform or pipeline application, the SLCC module controls the I/O for a GE turbine-driven compressor, managing anti-surge and performance controls.
• Turbine Auxiliary Systems: Controls dedicated racks for turbine auxiliary systems like the lube oil console or hydraulic power unit.

Comparison with Competing Products

As with other Mark VI components, the GE DS200SLCCG1AFG and DS215SLCCG1AZZ01A are proprietary. They compete at the system architecture level with other turbine control systems. The closest functional analogues would be the remote I/O processors or distributed controller modules in systems from Siemens (T3000 Teleperm XP with SIMADYN D or ET 200SP remote I/O) or Woodward (NetCon with its control nodes). The key advantage of the GE SLCC modules is their seamless, tested, and certified integration within the entire Mark VI/Vie toolset (ToolboxST), including unified configuration, diagnostics, and historian data collection. Third-party alternatives do not exist for direct replacement.

Selection Suggestions and Precautions

• Selection Suggestions:
  1. These modules are specific spare parts for existing systems. Selection is determined by the exact model in the failed slot, as revisions (e.g., G1AFG vs. G1AZZ01A) may indicate firmware, hardware, or compatibility differences.
  2. Always verify the module’s part number from the existing hardware or the turbine’s Bill of Materials (BOM). The suffix is critical.
  3. Confirm the required firmware version with the system’s overall software revision to ensure compatibility and proper network communication.
• Precautions:
  1. Critical System Component: The SLCC is the brain of its local rack. Its failure can cause the loss of all I/O in that rack, potentially leading to a turbine trip. Handle and install with extreme care.
  2. ESD Sensitivity: It is highly sensitive to electrostatic discharge. Use proper ESD grounding procedures during handling.
  3. Configuration Required: A new or replacement DS215SLCCG1AZZ01A module is typically blank and must have its firmware and configuration (the “SIL” file) downloaded from the ToolboxST engineering station. Installation is not plug-and-play.
  4. Redundancy Settings: If replacing a module in a redundant pair, the slot position (primary vs. backup) and related configuration must be correctly restored.
  5. Authorized Sourcing: Due to the criticality and complexity, source only from GE or certified refurbishment partners. Non-OEM modules may have incorrect firmware, failed components, or cause compatibility issues that are difficult to diagnose. Always maintain a backup of the module’s configuration file.
