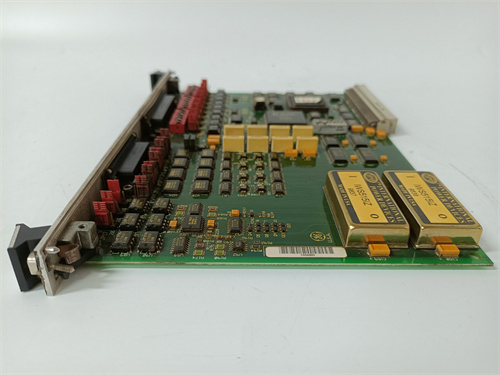

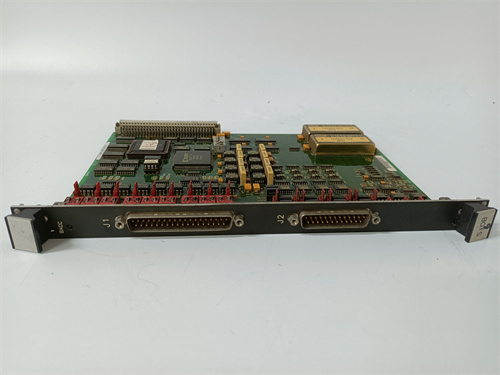

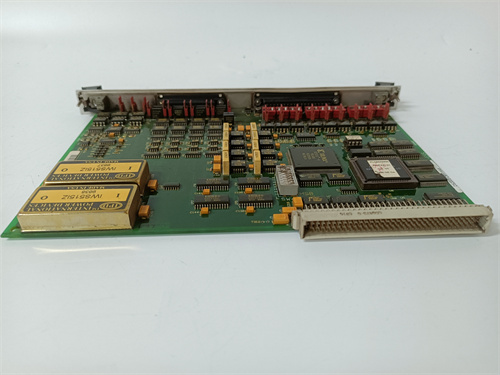

GE DS200SIOBH1ABA

Description

1. Product Overview

2. Product Parameters

2.1 Core Serial Communication Specifications

• Supported Protocols: Modbus RTU/ASCII/TCP, RS-232, RS-422, RS-485, DF1, BACnet MS/TP, Ethernet/IP (serial-to-Ethernet bridging)
• Communication Ports: 12 (6×RS-232/422/485, 4×fiber-optic serial, 2×Ethernet for protocol bridging; all optically isolated)
• Baud Rate: 300 bps to 921.6 kbps (configurable per port; 10/100 Mbps for Ethernet bridging)
• Data Bits: 7/8 bits (configurable); Parity: None/Even/Odd (configurable); Stop Bits: 1/2 bits (configurable)
• Maximum Cable Length: 15m (RS-232), 4000m (RS-485/422 with repeaters), 20km (fiber-optic serial)

2.2 Electrical & System Parameters

• Power Supply: 5V DC (logic) + 24V DC (auxiliary) from turbine controller backplane, dual redundant inputs (hot-swappable)
• Power Consumption: 3.5W (typical, full load)
• Isolation: 3000V AC per port (communication to logic), 2000V AC port-to-port
• Diagnostic Features: Port-level fault detection (overvoltage, short circuit, link loss), real-time error logging, remote diagnostics via Ethernet
• Redundancy: 1:1 hot standby for all critical ports (automatic switchover <50ms); dual power inputs with seamless failover

2.3 Environmental & Mechanical Parameters

• Operating Temperature: -40°C to +85°C (extended extreme range)
• Storage Temperature: -40°C to +90°C
• Relative Humidity: 5% to 95% (non-condensing, 0–50°C)
• Vibration Resistance: 5-500Hz, 5g (IEC 60068-2-6, turbine environment compliant)
• Shock Resistance: 50g (11ms half-sine wave, IEC 60068-2-27)
• Form Factor: Controller chassis-mounted board (Mark V/VI compatible), 160mm × 130mm × 35mm
• Weight: 0.5kg

2.4 Certifications & Compliance

• Industry Certifications: CE, UL/cUL 508, ATEX Zone 2, IECEx, ISO 13485 (for critical safety applications)
• Turbine Standards: API 612 (steam turbines), API 670 (machinery protection), ISO 14001 (environmental compliance)
• EMI/EMC Compliance: EN 55032 (Class A), EN 61000-6-2 (industrial immunity), EN 61000-4-8 (magnetic field immunity)

3. Advantages & Features

1. Enhanced Multi-Protocol & Connectivity: Support for Modbus TCP, fiber-optic serial, and Ethernet bridging allows GE DS200SIOBH1ABA to integrate with legacy and smart field devices, cloud platforms, and long-distance SCADA systems—eliminating the need for external gateways and reducing system complexity by 40%.
2. Ultra-Robust Isolation & Protection: 3000V AC port isolation and ±4kV surge protection shield GE DS200SIOBH1ABA and the main turbine controller from electrical transients and lightning-induced surges, critical for protecting sensitive control electronics in remote pipeline compressor stations or coastal power plants.
3. Seamless Redundancy: 1:1 hot standby for all ports and dual power inputs ensure GE DS200SIOBH1ABA maintains communication even during port, cable, or power failures, delivering 99.999% uptime for safety-critical turbine-to-device links (e.g., anti-surge valve control).
4. Extended Environmental Resilience: -40°C to +85°C operating temperature range and 5g vibration resistance enable GE DS200SIOBH1ABA to perform reliably in extreme environments—from arctic steam turbine facilities to desert pipeline compressor stations.
5. Native GE Controller Integration & Smart Diagnostics: GE DS200SIOBH1ABA is pre-configured for Mark V/VI turbine systems, with plug-and-play compatibility and remote diagnostic capabilities that reduce commissioning time by 30% and troubleshooting time by 50%.

4. Application Fields & Cases

4.1 Application Fields

• Combined-Cycle Power Plants: Gas/steam turbine communication with smart sensors, cloud monitoring platforms, and generator control systems
• Fossil Fuel Power Plants: Steam turbine data exchange with remote I/O racks, predictive maintenance tools, and grid synchronization systems
• Pipeline Compressors: Turbine serial communication with smart anti-surge valve controllers, long-distance SCADA systems, and IoT-enabled pipeline sensors
• Industrial Turbines: Compressor/pump driver turbine data transmission to cloud-based condition monitoring platforms and third-party diagnostic systems

4.2 Typical Cases

1. Gas Turbine Cloud Monitoring (Europe): A German utility deployed GE DS200SIOBH1ABA in 25 combined-cycle power plant turbine controllers to transmit real-time operational data (vibration, temperature, fuel consumption) to a cloud-based predictive maintenance platform via Modbus TCP. Fiber-optic serial ports ensured reliable communication over 10km, reducing unplanned downtime by 25% through early fault detection.
2. Steam Turbine Arctic Operation (Canada): A Canadian power plant used GE DS200SIOBH1ABA in Mark VI steam turbine controllers at an arctic facility, leveraging its -40°C operating range to maintain communication with remote I/O racks and grid synchronization systems. Redundant power inputs prevented communication loss during extreme weather-related power fluctuations.
3. Pipeline Compressor Smart Valve Control (Middle East): A Saudi Arabian natural gas pipeline operator integrated GE DS200SIOBH1ABA into compressor turbine control systems to communicate with smart anti-surge valve controllers via RS-485 and transmit data to a central SCADA system over 20km fiber-optic links. The board’s +85°C temperature resilience withstood desert heat, delivering 99.99% communication reliability over 5 years.

5. Competitive Comparison

6. Selection Suggestions & Precautions

6.1 Selection Suggestions

1. Smart Turbine Control Systems: Choose GE DS200SIOBH1ABA for turbine installations requiring integration with IoT sensors, cloud platforms, or fiber-optic SCADA systems (e.g., remote pipeline compressors, arctic power plants).
2. Extreme Environment Operation: Opt for GE DS200SIOBH1ABA for facilities in harsh climates (-40°C to +85°C) or high-vibration environments (e.g., desert compressor stations, coastal power plants).
3. Mission-Critical Redundancy Needs: Select GE DS200SIOBH1ABA for safety-critical communication links (anti-surge valve control, grid synchronization) requiring 1:1 hot standby ports and 99.999% uptime.

6.2 Precautions

1. Installation Guidelines:
   • Install GE DS200SIOBH1ABA only in compatible Mark V/VI controller chassis; ensure fiber-optic ports are connected with GE-approved LC/SC connectors to avoid signal loss.
   • Ground the board’s isolation shield to the controller cabinet ground (per GE recommendations) to maximize surge protection effectiveness.
2. Configuration Notes:
   • Configure Ethernet bridging settings (Modbus TCP/IP) via the turbine controller’s diagnostic software to match cloud platform requirements; enable redundant port failover for critical links.
   • Verify fiber-optic link loss thresholds (configurable) to trigger alerts before complete communication failure.
3. Troubleshooting:
   • For fiber-optic communication errors: Check connector cleanliness (use fiber optic cleaning kits) and verify link loss with a power meter; replace damaged cables/SFP modules with GE OEM parts.
   • For protocol bridging failures: Inspect Modbus TCP/IP settings and confirm compatibility with third-party devices (e.g., cloud gateways).
4. Maintenance:
   • Clean fiber-optic connectors quarterly (or after any disconnection) to prevent dust-induced signal loss; inspect RS-485/422 termination resistors (120Ω) annually.
   • Replace the board every 10 years (per GE’s service life recommendations) to avoid premature failure in extreme environment applications.
