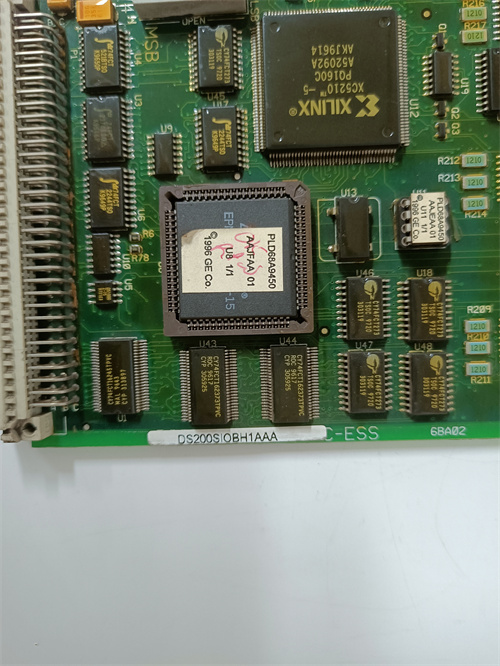

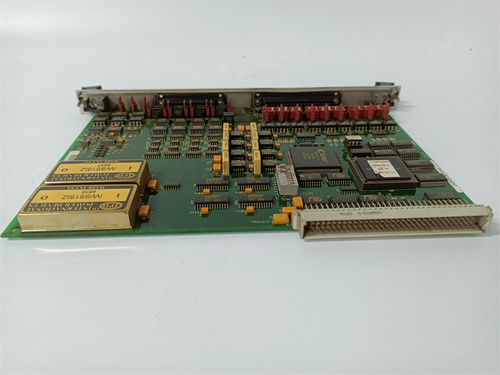

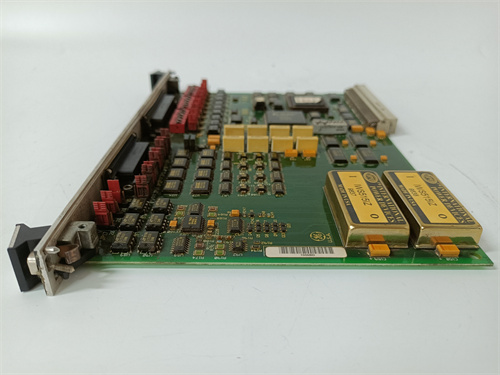

GE DS200SIOBH1AAA

Description

Product Description

Product Parameters

• Brand/Model: GE DS200SIOBH1AAA
• Core Serial Interface Parameters
  • Serial Ports: 1 configurable port (RS-232/RS-422/RS-485)
  • Supported Protocols: Modbus RTU, ASCII, DF1, GE SRTP, Custom serial protocols
  • Baud Rate: 1200, 2400, 4800, 9600, 19200, 38400, 57600, 115200 bps (software-configurable)
  • Data Bits: 7/8 bits | Parity: None/Even/Odd/Mark/Space | Stop Bits: 1/2 bits
  • Isolation: 2500V AC optical isolation (port-to-ground)
  • Surge Protection: 6kV ESD (per IEC 61000-4-2)
• System & Integration Parameters
  • Compatible Systems: GE Mark V/VI Turbine Control Systems, DS200SBCAG1A bus controller, CIMPLICITY HMI/SCADA
  • Host Interface: GE Genius Bus (1 Mbps, half-duplex)
  • Diagnostic Features: Port status LEDs (Tx/Rx/Error), serial error logging, remote diagnostics via GE ToolboxST
  • Configuration: GE CIMPLICITY Machine Edition (software) + DIP switches (port termination)
• Environmental & Physical Parameters
  • Operating Temperature: -40°C ~ +85°C
  • Storage Temperature: -55°C ~ +125°C
  • Vibration Resistance: 10g (5-2000Hz, IEC 60068-2-6)
  • Shock Resistance: 50g (11ms half-sine wave, IEC 60068-2-27)
  • Protection Grade: IP20 (rack-mount)
  • Dimensions: 80mm (W) × 150mm (H) × 50mm (D) (Mark V/VI chassis-compatible)
  • Power Supply: 24V DC (18-30V range, redundant input support)

Advantages & Features

1. Multi-Protocol Serial Compatibility: GE DS200SIOBH1AAA supports industry-standard serial protocols and configurable port modes, enabling integration of legacy RS-232/422/485 devices (e.g., old pressure transducers, serial modems) with GE’s Mark V/VI turbine control systems.
2. Optical Isolation & Surge Protection: 2500V AC isolation and 6kV ESD protection shield the module and connected equipment from electrical noise and voltage spikes, ensuring stable communication in harsh turbine environments.
3. Genius Bus Connectivity: Seamless integration with the GE Genius Bus allows serial device data to be centralized and shared across the turbine control system, eliminating siloed legacy device monitoring.
4. Simplified Configuration: Software-based protocol setup and DIP switch termination reduce installation complexity, enabling quick matching of serial device requirements (baud rate, parity) without specialized tools.

Application Fields & Cases

1. Gas Turbine Legacy Modem Integration: A combined-cycle power plant deployed GE DS200SIOBH1AAA to connect RS-232 satellite modems to Mark VI turbine controllers, enabling remote firmware updates and diagnostic access from onshore control centers. The module’s isolation prevented signal interference from turbine generators, ensuring reliable long-distance communication.
2. Offshore Compressor Serial Sensor Connectivity: An offshore oil platform used GE DS200SIOBH1AAA to link RS-485 vibration sensors (installed in 2010) to a Mark V control system. The module’s Modbus RTU support allowed sensor data to be displayed on the platform’s HMI, enabling predictive maintenance of turbine bearings.
3. Industrial Steam Turbine Serial Logger Connection: A pulp mill integrated GE DS200SIOBH1AAA into its Mark V system to connect RS-232 event loggers, automatically recording turbine start/stop sequences and alarm data. The module’s configurable baud rate matched the logger’s requirements, eliminating manual data entry and improving maintenance record accuracy.

Competitor Comparison

Selection Suggestions & Precautions

1. Selection Suggestions: GE DS200SIOBH1AAA is ideal for GE Mark V/VI users needing single-port serial integration of legacy devices (e.g., power generation, offshore oil & gas). For dual-port applications, choose the GE DS200SI0BH1ABA; for non-GE systems, select Siemens CP 340 or Allen-Bradley 1761-NET-AIC.
2. Precautions:
   • Configure port mode (RS-232/422/485) and termination via DIP switches before powering on—incorrect settings may damage serial devices or cause communication failures.
   • Use shielded twisted-pair cables for RS-422/485 multi-drop networks and terminate the last device in the chain to prevent signal reflection.
   • Ground the module’s isolation shield to comply with safety standards (IEC 61010) and reduce electromagnetic interference from turbine equipment.
   • Match baud rate, data bits, and parity between the module and connected serial devices (via GE ToolboxST) to avoid data corruption or lost communication.
   • Test serial connectivity post-installation using diagnostic LEDs and error logs to verify Tx/Rx functionality and resolve protocol mismatches.
