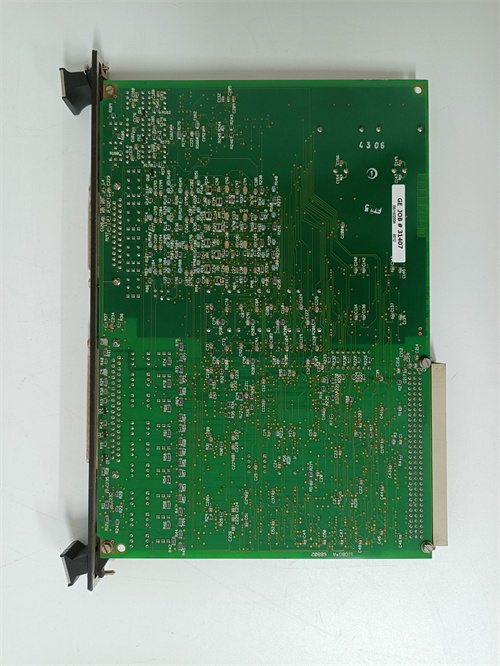

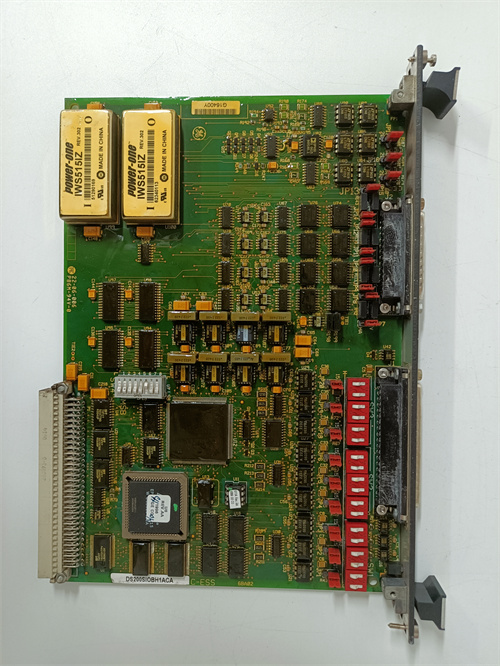

GE DS200SIOBH1A

Description

1. Product Overview

2. Product Parameters

2.1 Core Serial Communication Specifications

• Supported Protocols: Modbus RTU/ASCII, RS-232, RS-422, RS-485, DF1, ASCII, BACnet MS/TP
• Communication Ports: 8 (4×RS-232, 2×RS-422, 2×RS-485; all optically isolated)
• Baud Rate: 300 bps to 115.2 kbps (configurable per port)
• Data Bits: 7/8 bits (configurable)
• Parity: None/Even/Odd (configurable)
• Stop Bits: 1/2 bits (configurable)
• Maximum Cable Length: 15m (RS-232), 1200m (RS-485/422)

2.2 Electrical & System Parameters

• Power Supply: 5V DC (logic) + 24V DC (auxiliary) from turbine controller backplane, dual redundant inputs
• Power Consumption: 2.5W (typical, full load)
• Isolation: 2500V AC per port (communication to logic), 1500V AC port-to-port
• Diagnostic Features: Port-level fault detection (overvoltage, short circuit), communication link status monitoring, error logging
• Redundancy: 1:1 hot standby for critical RS-485/422 ports (automatic switchover <100ms)

2.3 Environmental & Mechanical Parameters

• Operating Temperature: -40°C to +70°C (extended industrial range)
• Storage Temperature: -40°C to +85°C
• Relative Humidity: 5% to 95% (non-condensing)
• Vibration Resistance: 5-500Hz, 3g (IEC 60068-2-6, turbine environment compliant)
• Shock Resistance: 30g (11ms half-sine wave, IEC 60068-2-27)
• Form Factor: Controller chassis-mounted board (Mark V/VI compatible), 140mm × 120mm × 30mm
• Weight: 0.4kg

2.4 Certifications & Compliance

• Industry Certifications: CE, UL/cUL 508, ATEX Zone 2, IECEx
• Turbine Standards: API 612 (steam turbines), API 670 (machinery protection)
• EMI/EMC Compliance: EN 55032 (Class A), EN 61000-6-2 (industrial immunity)

3. Advantages & Features

1. Multi-Protocol Flexibility: Support for Modbus, RS-232/422/485, and other industrial protocols allows GE DS200SIOBH1A to integrate with virtually all serial-based field devices and third-party systems, eliminating the need for external protocol converters and reducing system complexity.
2. Optical Isolation & Surge Protection: 2500V AC port isolation and built-in surge protection shield GE DS200SIOBH1A and the main turbine controller from electrical transients (common in turbine rooms), preventing communication failures and protecting sensitive control electronics.
3. Redundant Communication Paths: 1:1 hot standby for critical ports ensures GE DS200SIOBH1A maintains data transmission even if a port or cable fails, critical for uninterrupted communication with safety-critical devices (e.g., anti-surge valve controllers).
4. Turbine-Grade Durability: -40°C to +70°C operating temperature range, 3g vibration resistance, and rugged construction enable GE DS200SIOBH1A to perform reliably in harsh turbine room conditions, including high humidity, mechanical vibration, and electrical noise.
5. Native GE Controller Integration: GE DS200SIOBH1A is pre-configured for Mark V/VI turbine control systems, with plug-and-play compatibility that eliminates custom programming and reduces commissioning time by up to 30%.

4. Application Fields & Cases

4.1 Application Fields

• Combined-Cycle Power Plants: Turbine controller communication with flow meters, vibration analyzers, and SCADA systems
• Fossil Fuel Power Plants: Steam turbine data exchange with auxiliary PLCs, temperature controllers, and remote I/O racks
• Pipeline Compressors: Turbine serial communication with anti-surge valve controllers, pressure transmitters, and pipeline monitoring systems
• Industrial Turbines: Compressor/pump driver turbine data transmission to maintenance terminals and third-party condition monitoring systems

4.2 Typical Cases

1. Gas Turbine SCADA Communication (Europe): A French utility deployed GE DS200SIOBH1A in 30 combined-cycle power plant turbine controllers to transmit operational data (temperature, pressure, speed) to a central SCADA system via Modbus RTU. Redundant RS-485 ports prevented data loss during a cable failure, ensuring continuous monitoring and avoiding $200,000 in regulatory penalties.
2. Steam Turbine Auxiliary PLC Integration (USA): A U.S. coal-fired power plant used GE DS200SIOBH1A to synchronize Mark V turbine controllers with auxiliary PLCs via RS-422. Optical isolation protected the turbine controller from a PLC-side electrical transient, maintaining communication and preventing a turbine shutdown.
3. Pipeline Compressor Anti-Surge Valve Communication (Middle East): A Kuwaiti natural gas pipeline operator integrated GE DS200SIOBH1A into compressor turbine control systems to exchange anti-surge valve status data with remote I/O racks. The board’s -40°C to +70°C operating range withstood desert temperature extremes, delivering 99.99% communication reliability over 5 years.

5. Competitive Comparison

6. Selection Suggestions & Precautions

6.1 Selection Suggestions

1. Multi-Protocol Serial Communication Needs: Choose GE DS200SIOBH1A for turbine systems requiring integration with diverse serial devices (Modbus flow meters, RS-485 vibration analyzers, etc.) and third-party systems.
2. Mark V/VI Turbine Control Systems: Opt for GE DS200SIOBH1A to leverage native compatibility with GE’s flagship turbine controllers, eliminating protocol converters and reducing installation time.
3. Redundant Communication Requirements: Select GE DS200SIOBH1A for safety-critical applications (e.g., anti-surge valve communication) needing 1:1 hot standby ports to avoid data loss or communication failures.

6.2 Precautions

1. Installation Guidelines:
   • Install GE DS200SIOBH1A only in compatible Mark V/VI controller chassis; ensure proper alignment with the backplane to avoid communication errors or electrical damage.
   • Use shielded twisted-pair cables for RS-485/422 ports and terminate bus lines with 120Ω resistors (per GE recommendations) to minimize signal reflection.
2. Configuration Notes:
   • Configure baud rate, data bits, parity, and stop bits per field device specifications (mismatched settings will cause communication failure); enable port isolation in the controller software for maximum protection.
   • Test redundant port switchover during commissioning to confirm <100ms failover and verify data continuity.
3. Troubleshooting:
   • For communication dropouts: Check cable termination, inspect for EMI interference (relocate cables away from high-voltage wiring), and verify port fault indicators (overvoltage/short circuit).
   • For protocol errors: Confirm protocol configuration (Modbus RTU vs. ASCII) matches field devices and check error logs for frame errors or timeouts.
4. Maintenance:
   • Inspect serial port connectors quarterly (vibration can cause loosening) and clean contacts with approved electrical contact cleaner to prevent corrosion.
   • Replace cables every 5 years (or sooner if damaged) to maintain signal integrity—use only GE-recommended shielded cables for RS-485/422 ports.
