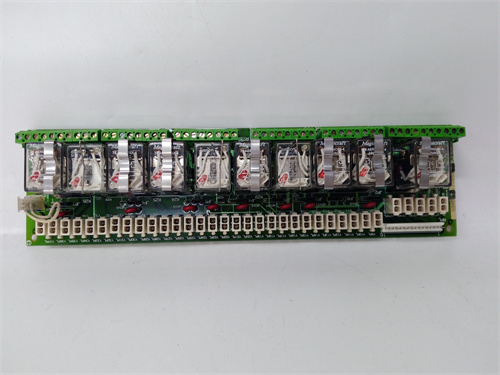

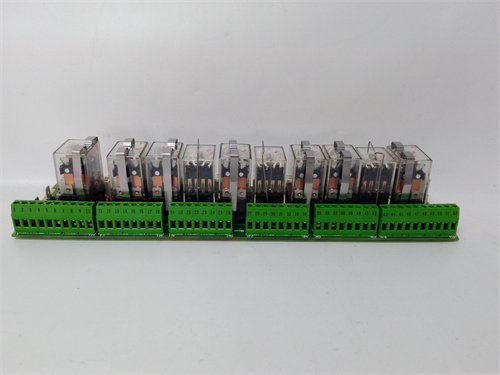

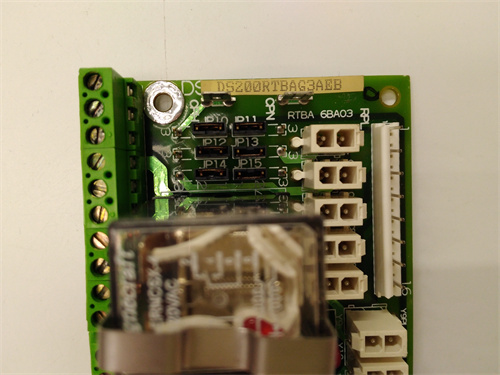

GE DS200RTBAG2AHC

Description

1. Product Overview

2. Product Parameters

2.1 Core Relay & Signal Specifications

• Relay Channels: 16 (Form C double-pole double-throw/DPDT relays)
• Relay Rating: 10A @ 250V AC / 30V DC (resistive load); 5A @ 250V AC / 30V DC (inductive load)
• Control Inputs: 24V DC (from turbine controller I/O modules), optically isolated
• Switching Time: <10ms (make/break)
• Mechanical Life: 10 million operations; Electrical Life: 100,000 operations (full load)

2.2 Electrical & Protection Features

• Power Supply: 24V DC (control circuit) + field voltage (120/240V AC / 24/48V DC for load circuits)
• Isolation: 4000V AC control circuit to load circuit; 2500V AC channel-to-channel
• Protection Mechanisms: Overcurrent protection (fused per channel), surge protection (±2kV IEC 61000-4-5), short-circuit resistant relay contacts
• LED Indicators: Relay status (red = energized), power (green), fault (amber = overcurrent)
• Terminal Block Rating: 20A @ 600V AC/DC (screw-type, AWG 14-10)

2.3 Environmental & Mechanical Parameters

• Operating Temperature: -40°C to +70°C (extended industrial range)
• Storage Temperature: -40°C to +85°C
• Relative Humidity: 5% to 95% (non-condensing)
• Vibration Resistance: 5-500Hz, 5g (IEC 60068-2-6, turbine environment compliant)
• Shock Resistance: 50g (11ms half-sine wave, IEC 60068-2-27)
• Form Factor: Rack-mount (19” compatible), 250mm × 200mm × 50mm (fits Mark V/VI controller cabinets)
• Weight: 1.5kg

2.4 Certifications & Compliance

• Industry Certifications: CE, UL/cUL 508 (Industrial Control Equipment), ATEX Zone 2, IECEx
• Turbine Standards: API 612 (steam turbines), API 670 (machinery protection)
• EMI/EMC Compliance: EN 55032 (Class A), EN 61000-6-2 (industrial immunity)

3. Advantages & Features

1. High-Power Discrete Control: GE DS200RTBAG2AHC’s 10A relay rating and fused overcurrent protection enable safe switching of high-power turbine auxiliary equipment (e.g., fuel pumps, cooling fans), eliminating the need for external relay modules and reducing cabinet complexity.
2. Optical Isolation & Surge Protection: 4000V AC isolation between control and load circuits, plus ±2kV surge protection, shields GE DS200RTBAG2AHC and the main turbine controller from voltage spikes and transients—critical for protecting sensitive control electronics from high-power field devices.
3. Turbine-Grade Durability: -40°C to +70°C operating temperature range, 5g vibration resistance, and rugged construction ensure GE DS200RTBAG2AHC performs reliably in harsh turbine room conditions, including high humidity, mechanical vibration from rotating equipment, and electrical noise.
4. Simplified Fault Diagnosis: LED status indicators for each relay and overcurrent fault alerts allow operators to quickly identify failed channels or overload conditions, reducing troubleshooting time and minimizing unplanned turbine downtime.
5. Native GE Controller Integration: GE DS200RTBAG2AHC is pre-wired for compatibility with Mark V/VI turbine controller I/O modules, enabling plug-and-play installation and eliminating custom wiring—saving up to 40% on commissioning time.

4. Application Fields & Cases

4.1 Application Fields

• Combined-Cycle Power Plants: Gas/steam turbine auxiliary equipment control (fuel pumps, cooling fans, ignition systems)
• Fossil Fuel Power Plants: Steam turbine condenser water valve control, lubrication system pump switching, boiler feed pump relays
• Pipeline Compressors: Turbine anti-surge valve actuator control, emergency shutdown relays, compressor lube oil pump switching
• Industrial Turbines: Compressor/pump driver turbine cooling system control, starter motor relays, exhaust damper actuation

4.2 Typical Cases

1. Gas Turbine Fuel Pump Control (North America): A U.S. power plant deployed GE DS200RTBAG2AHC in 18 Mark VI gas turbine controllers to switch power to main and backup fuel pumps. Fused overcurrent protection prevented a fire during a pump motor short circuit, avoiding catastrophic turbine damage and $2 million in repair costs.
2. Steam Turbine Lubrication Pump Control (Europe): A German utility used GE DS200RTBAG2AHC to control lubrication system pumps in Mark V steam turbines. Optical isolation protected the main controller from a 480V AC transient, maintaining pump operation and preventing turbine bearing failure.
3. Pipeline Compressor Anti-Surge Valve Control (Middle East): A UAE natural gas pipeline operator integrated GE DS200RTBAG2AHC into compressor turbine control systems to actuate anti-surge valves. The board’s 5g vibration resistance withstood compressor-induced mechanical stress, delivering 99.99% reliability over 5 years of continuous operation.

5. Competitive Comparison

6. Selection Suggestions & Precautions

6.1 Selection Suggestions

1. High-Power Turbine Auxiliary Control: Choose GE DS200RTBAG2AHC for fuel pumps, cooling fans, or valve actuators requiring 5-10A switching capacity and integrated overcurrent protection.
2. Mark V/VI Turbine Control Systems: Opt for GE DS200RTBAG2AHC to leverage native compatibility with GE’s flagship turbine controllers, eliminating external relay modules and reducing cabinet complexity.
3. Harsh Environment Operation: Select GE DS200RTBAG2AHC for turbine installations in high-vibration (compressor stations) or extreme temperature (desert/arctic) environments.

6.2 Precautions

1. Installation Guidelines:
   • Mount GE DS200RTBAG2AHC in a grounded section of the turbine control cabinet, with a minimum 150mm clearance from high-voltage (≥480V) components to minimize EMI interference.
   • Torque load circuit terminal blocks to GE-recommended specifications (1.2 N·m) to prevent loose connections—critical for high-current applications to avoid overheating.
2. Configuration Notes:
   • Match relay channel ratings to field device load requirements (never exceed 10A resistive/5A inductive); replace fuses with GE-approved components only (do not bypass fuses).
   • Connect control circuit (24V DC) to the turbine controller’s discrete output modules—verify optical isolation is enabled in the controller software.
3. Troubleshooting:
   • For failed relay operation: Check LED status (amber = overcurrent/fuse blown), inspect load circuit for shorts, and replace fuses or relays as needed (use GE OEM parts).
   • For control circuit faults: Verify 24V DC power to the board, inspect optical isolation modules, and check wiring to the turbine controller I/O.
4. Maintenance:
   • Inspect relay contacts annually for wear (replace relays after 100,000 operations or if arcing is visible); clean terminal blocks with a dry brush to remove dust and corrosion.
   • Test overcurrent protection quarterly by simulating a load short (follow GE safety procedures) to ensure fuses and fault detection work correctly.
