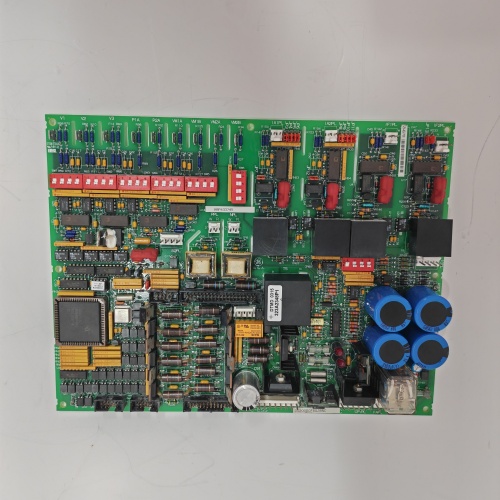

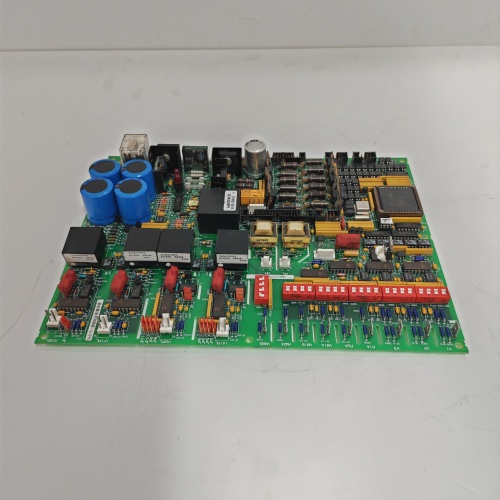

GE DS200PTBAG1A

Description

Product Description

Product Parameters

• Brand/Model: GE DS200PTBAG1A
• Core Terminal Board Parameters
  • Terminal Count: 16 screw terminals (8 RTD/thermocouple inputs, 8 4-20mA analog inputs)
  • Terminal Type: Phoenix-style screw terminals (2.5mm² wire capacity)
  • Signal Compatibility: Pt100/Pt1000 RTDs, Type J/K/T thermocouples, 4-20mA DC, 0-10V DC
  • Protection Features: 6kV ESD surge protection, isolation barriers (1500V AC channel-to-ground)
  • Labeling: Color-coded (purple = RTD/thermocouple, blue = 4-20mA) + engraved signal identifiers
• System & Mechanical Parameters
  • Compatible Systems: GE Mark V/VI Turbine Control Systems, DS200 series analog I/O modules
  • Mounting: Rack-mount (GE Mark V/VI chassis-compatible) + DIN rail adapter (35mm)
  • Connection Interface: 37-pin D-sub cable to DS200 analog I/O modules
  • Wire Gauge Support: 22-12 AWG (solid/stranded copper)
• Environmental & Physical Parameters
  • Operating Temperature: -40°C ~ +85°C
  • Storage Temperature: -55°C ~ +125°C
  • Vibration Resistance: 10g (5-2000Hz, IEC 60068-2-6)
  • Shock Resistance: 50g (11ms half-sine wave, IEC 60068-2-27)
  • Protection Grade: IP20 (rack-mount)
  • Dimensions: 100mm (W) × 150mm (H) × 50mm (D)
  • Material: Flame-retardant ABS housing + stainless steel terminal blocks, UL94 V-0 rated

Advantages & Features

1. Specialized Analog Signal Handling: GE DS200PTBAG1A is optimized for RTD, thermocouple, and 4-20mA signals—critical for turbine pressure/temperature monitoring—with isolation barriers that eliminate ground loops and signal interference.
2. Integrated Surge Protection: 6kV ESD protection safeguards sensitive analog inputs from voltage spikes caused by lightning or equipment switching, reducing downtime from signal damage in harsh industrial environments.
3. Error-Proof Wiring: Color-coded, engraved terminals prevent mix-ups between RTD/thermocouple and 4-20mA signals, cutting installation errors by up to 40% and speeding up troubleshooting during maintenance.
4. Vibration-Resistant Design: Locking terminal screws and a rugged ABS housing ensure secure connections in high-vibration turbine enclosures, avoiding signal dropout or intermittent connectivity issues.

Application Fields & Cases

1. Gas Turbine Temperature/Pressure Monitoring: A combined-cycle power plant deployed GE DS200PTBAG1A terminal boards to connect RTDs (turbine bearing temperature) and 4-20mA pressure transducers (combustion chamber pressure) to DS200ADMAH1ABB I/O modules. Isolation barriers eliminated ground loops, ensuring accurate temperature readings for critical turbine components.
2. Offshore Compressor Turbine Sensing: An offshore oil platform used GE DS200PTBAG1A to wire Type K thermocouples (exhaust manifold temperature) and 4-20mA flow sensors to Mark VI control modules. Surge protection prevented damage from lightning-induced voltage spikes, while vibration-resistant terminals maintained connections in rough seas.
3. Industrial Steam Turbine Process Signals: A pulp mill integrated GE DS200PTBAG1A into its Mark V system to manage steam pressure (4-20mA) and stator temperature (Pt100 RTD) signals. Color-coded terminals simplified wiring during a system upgrade, reducing installation time by 25%.

Competitor Comparison

Selection Suggestions & Precautions

1. Selection Suggestions: GE DS200PTBAG1A is ideal for GE Mark V/VI turbine control system users needing specialized analog signal wiring with protection (e.g., power generation, oil & gas). For high-density analog applications, choose the GE DS200PTBAG2A (32 terminals); for general industrial use, select Phoenix Contact UK16 or Allen-Bradley 1492-J16.
2. Precautions:
   • Use twisted-pair shielded cables for RTD/thermocouple wiring and ground shields at the module end only to eliminate ground loops and signal noise.
   • Tighten terminal screws to 0.8 Nm torque (per GE specifications) to prevent loose connections in high-vibration turbine environments.
   • Match terminal assignments to signal types (e.g., RTDs to purple terminals) to avoid damaging sensitive I/O modules or sensors.
   • Replace surge protection components every 5 years (per GE maintenance guidelines) to maintain protection against voltage spikes.
   • Label all field device wires with matching terminal identifiers to simplify troubleshooting and sensor replacement.
