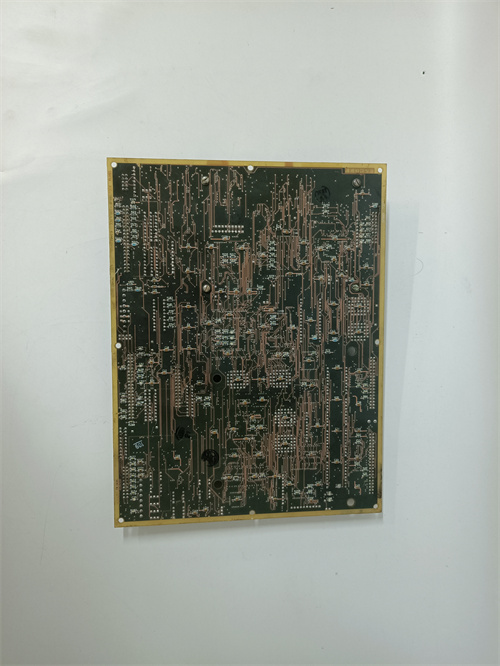

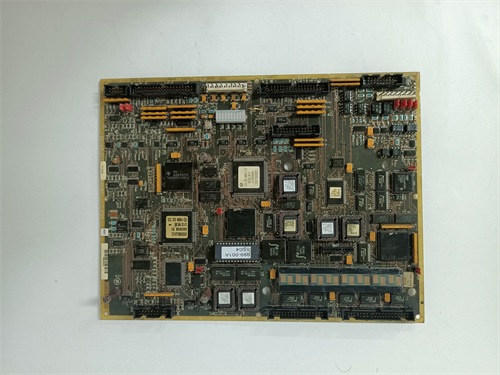

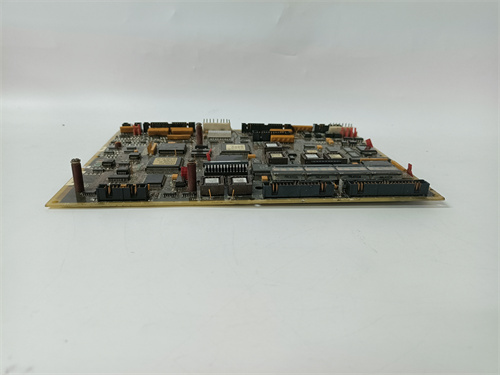

GE DS200LDCCH1ANA

Description

1. Product Overview

2. Product Parameters

2.1 Core Analog I/O Specifications

Analog Inputs (16 Channels)

• Supported Signal Types: 4-20mA DC, 0-10V DC, thermocouples (J/K/T/E/R/S), RTDs (Pt100/Pt1000)
• Resolution: 24-bit (thermocouple/RTD), 16-bit (current/voltage)
• Accuracy: ±0.01% of full scale (current/voltage), ±0.05°C (thermocouple), ±0.02°C (RTD)
• Input Impedance: 250Ω (4-20mA), >10MΩ (voltage), 100Ω (RTD)
• Sampling Rate: 1kSPS per channel (simultaneous sampling for synchronized data)

Analog Outputs (8 Channels)

• Supported Signal Types: 4-20mA DC, 0-10V DC (configurable per channel)
• Resolution: 16-bit
• Accuracy: ±0.02% of full scale
• Output Load Capacity: 600Ω (4-20mA), 10kΩ (0-10V)
• Update Rate: 500Hz per channel (fast response for closed-loop control)

2.2 Electrical & System Parameters

• Power Supply: 5V DC (logic) + 24V DC (outputs) from turbine controller backplane, dual redundant inputs
• Power Consumption: 4W (typical, full load)
• Communication Interface: Serial Peripheral Interface (SPI) + Turbine Control Bus (TCB) to main controller
• Diagnostic Features: Channel-level fault detection (open/short circuit, overrange), sensor break detection (thermocouple/RTD), output drift monitoring
• Redundancy: 1:1 hot standby support (for critical control loops)

2.3 Environmental & Mechanical Parameters

• Operating Temperature: -40°C to +75°C (extended extreme range)
• Storage Temperature: -40°C to +85°C
• Relative Humidity: 5% to 95% (non-condensing)
• Vibration Resistance: 5-500Hz, 3g (IEC 60068-2-6, turbine environment compliant)
• Shock Resistance: 50g (11ms half-sine wave, IEC 60068-2-27)
• Form Factor: Controller chassis-mounted board (Mark V/VI compatible), 160mm × 130mm × 35mm
• Weight: 0.5kg

2.4 Certifications & Compliance

• Industry Certifications: CE, UL/cUL 508, ATEX Zone 2, IECEx
• Safety Ratings: IEC 61508 SIL 2 (for analog control loops)
• Turbine Standards: API 612 (steam turbines), API 670 (machinery protection), ISO 13849-1
• EMI/EMC Compliance: EN 55032 (Class A), EN 61000-6-2 (industrial immunity), EN 61000-4-3 (radiated immunity)

3. Advantages & Features

1. Ultra-High Precision Signal Processing: 24-bit resolution for temperature measurements and ±0.01% accuracy for current/voltage signals enable GE DS200LDCCH1ANA to deliver industry-leading precision for critical turbine control loops (e.g., fuel metering, EGT monitoring), directly improving turbine efficiency and reliability.
2. Synchronized Sampling: 1kSPS simultaneous sampling across all analog inputs ensures GE DS200LDCCH1ANA captures correlated data (e.g., multi-point temperature/pressure measurements) without timing errors, critical for advanced turbine health monitoring and diagnostics.
3. Redundant & Fault-Tolerant Design: Dual power inputs and 1:1 hot standby support make GE DS200LDCCH1ANA resilient to hardware failures, ensuring uninterrupted operation of critical analog control loops in 24/7 power generation applications.
4. Turbine-Grade Environmental Hardening: -40°C to +75°C operating temperature range, 3g vibration resistance, and enhanced EMI immunity allow GE DS200LDCCH1ANA to perform reliably in the harshest turbine room conditions, including extreme temperatures, mechanical vibration, and electrical noise.
5. Comprehensive Diagnostics: Real-time alerts for sensor breaks, overrange conditions, and output drift provide proactive visibility into GE DS200LDCCH1ANA performance, enabling operators to address issues before they impact turbine operation and reducing unplanned downtime.

4. Application Fields & Cases

4.1 Application Fields

• Combined-Cycle Power Plants: Gas turbine exhaust gas temperature (EGT) monitoring, fuel metering valve control, compressor discharge pressure regulation
• Fossil Fuel Power Plants: Steam turbine steam pressure/temperature monitoring, governor control, feedwater flow regulation
• Pipeline Compressors: Turbine anti-surge valve position control, inlet guide vane (IGV) actuation, discharge pressure monitoring
• Industrial Turbines: Compressor/pump driver turbine speed control, lubrication oil temperature/pressure monitoring, load balancing

4.2 Typical Cases

1. Gas Turbine EGT Monitoring (North America): A U.S. utility deployed GE DS200LDCCH1ANA in 25 Mark VI gas turbine controllers to monitor exhaust gas temperature via thermocouple inputs. 24-bit resolution and ±0.05°C accuracy enabled precise temperature profiling, reducing hot-section component wear by 15% and extending turbine maintenance intervals by 6 months.
2. Steam Turbine Governor Control (Europe): A German power plant used GE DS200LDCCH1ANA to adjust steam turbine governor position via 4-20mA outputs, with ±0.02% accuracy ensuring stable speed control (±0.5 RPM) even under variable load conditions. This compliance with grid frequency regulations eliminated $100,000 in annual penalty fees.
3. Pipeline Compressor Anti-Surge Control (Middle East): A UAE natural gas pipeline operator integrated GE DS200LDCCH1ANA into compressor turbine control systems to manage anti-surge valve actuation. The board’s -40°C to +75°C operating range withstood desert temperature extremes, maintaining 99.99% control loop reliability and preventing costly compressor surge events over 4 years.

5. Competitive Comparison

6. Selection Suggestions & Precautions

6.1 Selection Suggestions

1. High-Precision Turbine Control Loops: Choose GE DS200LDCCH1ANA for exhaust gas temperature monitoring, fuel metering, or governor control applications requiring 24-bit resolution and ±0.01% accuracy.
2. Mark V/VI Turbine Control Systems: Opt for GE DS200LDCCH1ANA to leverage native compatibility with GE’s flagship turbine controllers, eliminating integration issues and reducing commissioning time.
3. Extreme Environment Operation: Select GE DS200LDCCH1ANA for turbine installations in harsh climates (deserts, arctic regions) or high-vibration environments (compressor stations, industrial turbine facilities).

6.2 Precautions

1. Installation Guidelines:
   • Install GE DS200LDCCH1ANA only in compatible Mark V/VI controller chassis; ensure proper alignment with the backplane to avoid electrical shorts or communication errors.
   • Use twisted-pair shielded wiring for analog signals and ground shields at the board end to minimize EMI interference from turbine electrical systems (critical for maintaining precision).
2. Configuration Notes:
   • Calibrate analog channels using GE’s Diagnostic Tool before commissioning (factory calibration may drift during shipping/storage); verify sensor type settings (thermocouple/RTD/current) for each input channel.
   • Enable redundant power inputs for critical control loops to ensure uninterrupted operation during a single power source failure.
3. Troubleshooting:
   • For drift in analog outputs: Check for EMI interference (relocate wiring if needed) or sensor calibration issues; use the board’s diagnostic features to identify channel-level faults.
   • For communication failures: Inspect SPI/TCB backplane connections and verify firmware compatibility with the main turbine controller.
4. Maintenance:
   • Recalibrate analog channels annually using a certified calibrator to maintain ±0.01% accuracy (critical for temperature/pressure control loops).
   • Replace the board every 10 years (per GE’s service life recommendations) to avoid premature failure in mission-critical turbine applications.
