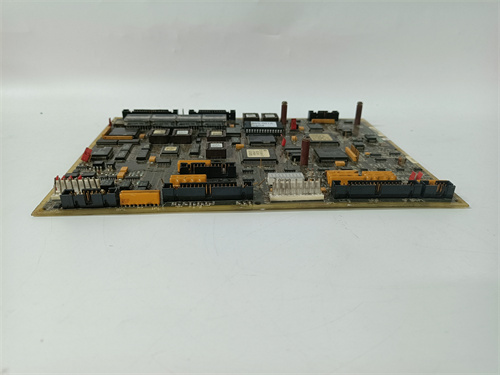

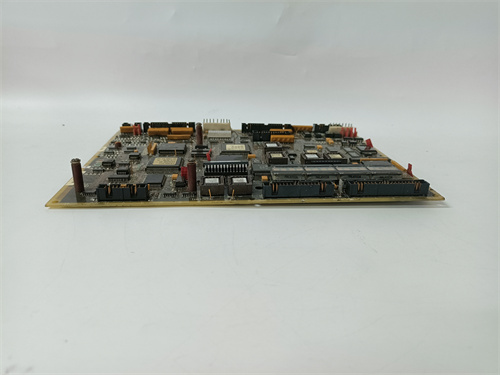

GE DS200LDCCH1A

Description

1. Product Overview

2. Product Parameters

2.1 Core Digital I/O Specifications

Digital Inputs (32 Channels)

• Input Type: 24V DC wet contacts (sink/source configurable)
• Input Voltage Range: 18-30V DC
• Response Time: <100µs (high-speed inputs for critical safety signals)
• Isolation: 2500V AC channel-to-channel, 3000V AC channel-to-ground
• Input Current: <2mA per channel

Digital Outputs (16 Channels)

• Output Type: Solid-state relays (SSR) with Form A contacts
• Output Rating: 2A @ 24V DC (resistive load), 1A @ 24V DC (inductive load)
• Switching Time: <50µs (turn-on/off)
• Isolation: 2500V AC channel-to-channel, 3000V AC channel-to-ground
• Overload Protection: 3A current limiting per channel

2.2 Electrical & System Parameters

• Power Supply: 5V DC (logic) + 24V DC (outputs) from turbine controller backplane
• Power Consumption: 3W (typical, full load)
• Communication Interface: Serial Peripheral Interface (SPI) + Turbine Control Bus (TCB) to main controller
• Diagnostic Features: Channel-level fault detection (open/short circuit), over-temperature monitoring, output overload alerts
• Redundancy: 2-out-of-3 voting for critical safety inputs (configurable)

2.3 Environmental & Mechanical Parameters

• Operating Temperature: -40°C to +70°C (extended industrial range)
• Storage Temperature: -40°C to +85°C
• Relative Humidity: 5% to 95% (non-condensing)
• Vibration Resistance: 5-500Hz, 3g (IEC 60068-2-6, turbine environment compliant)
• Shock Resistance: 50g (11ms half-sine wave, IEC 60068-2-27)
• Form Factor: Controller chassis-mounted board (Mark V/VI compatible), 150mm × 120mm × 30mm
• Weight: 0.4kg

2.4 Certifications & Compliance

• Industry Certifications: CE, UL/cUL 508, ATEX Zone 2, IECEx
• Safety Ratings: IEC 61508 SIL 2 (for safety-related inputs/outputs)
• Turbine Standards: API 612 (steam turbines), API 670 (machinery protection)
• EMI/EMC Compliance: EN 55032 (Class A), EN 61000-6-2 (industrial immunity)

3. Advantages & Features

1. High-Speed Signal Processing: <100µs input response time and <50µs output switching enable GE DS200LDCCH1A to handle critical safety signals (e.g., emergency shutdown) with deterministic performance, meeting the strict latency requirements of turbine control systems.
2. Redundant Safety Design: 2-out-of-3 voting for critical inputs and channel-level fault detection make GE DS200LDCCH1A suitable for safety-related applications, reducing the risk of false trips or missed fault conditions in turbine operations.
3. Turbine-Grade Durability: -40°C to +70°C operating temperature range and 3g vibration resistance ensure GE DS200LDCCH1A performs reliably in extreme turbine room environments, including high temperatures, mechanical vibration, and electrical noise.
4. Integrated Diagnostics: Real-time alerts for open/short circuits, overloads, and over-temperature conditions allow operators to monitor GE DS200LDCCH1A health proactively, minimizing unplanned downtime and simplifying troubleshooting.
5. Seamless Controller Integration: SPI + TCB communication with Mark V/VI main controllers enables plug-and-play installation, allowing GE DS200LDCCH1A to synchronize with turbine control logic without custom programming or configuration.

4. Application Fields & Cases

4.1 Application Fields

• Combined-Cycle Power Plants: Gas/steam turbine safety interlock control, flame detection signal processing, fuel valve actuation
• Fossil Fuel Power Plants: Steam turbine bearing protection, cooling system control, emergency shutdown sequencing
• Pipeline Compressors: Turbine anti-surge valve control, pressure switch monitoring, auxiliary pump actuation
• Industrial Turbines: Compressor/pump driver turbine start/stop control, safety system monitoring, load management

4.2 Typical Cases

1. Gas Turbine Safety Interlock Control (North America): A U.S. power plant deployed GE DS200LDCCH1A boards in 18 Mark VI gas turbine controllers to manage emergency shutdown interlocks (flame loss, overspeed, low oil pressure). The board’s <100µs response time reduced emergency shutdown latency by 50%, preventing potential turbine damage during fault conditions.
2. Steam Turbine Bearing Protection (Europe): A German utility used GE DS200LDCCH1A to monitor bearing temperature switch inputs and control cooling fan relays in Mark V steam turbines. Channel-level fault detection identified a shorted input channel before it caused a false trip, saving $150,000 in unplanned downtime.
3. Pipeline Compressor Anti-Surge Control (Middle East): A Saudi Arabian natural gas pipeline operator integrated GE DS200LDCCH1A into compressor turbine control systems to manage anti-surge valve position feedback and actuation. The board’s 3g vibration resistance withstood compressor-induced vibration, maintaining 99.99% signal reliability over 5 years.

5. Competitive Comparison

6. Selection Suggestions & Precautions

6.1 Selection Suggestions

1. Safety-Critical Turbine Applications: Choose GE DS200LDCCH1A for emergency shutdown, flame detection, or anti-surge control systems requiring SIL 2 compliance and high-speed signal processing.
2. Mark V/VI Turbine Control Systems: Opt for GE DS200LDCCH1A to leverage native compatibility with GE’s flagship turbine controllers, eliminating integration issues and reducing commissioning time.
3. Extreme Environment Operation: Select GE DS200LDCCH1A for turbine installations in high-vibration (e.g., compressor stations) or wide-temperature-range (e.g., desert/arctic) environments.

6.2 Precautions

1. Installation Guidelines:
   • Install GE DS200LDCCH1A only in compatible Mark V/VI controller chassis; ensure proper alignment with the backplane to avoid electrical shorts or communication errors.
   • Use twisted-pair shielded wiring for digital inputs/outputs and ground shields at the board end to minimize EMI interference from turbine electrical systems.
2. Configuration Notes:
   • Configure input sink/source polarity via the turbine controller software to match field device wiring—incorrect polarity will cause signal failure or board damage.
   • Enable 2-out-of-3 voting for critical safety inputs (e.g., emergency shutdown) to reduce false trip risks, per GE’s recommended safety practices.
3. Troubleshooting:
   • For unresponsive inputs/outputs: Check LED fault indicators, verify power supply voltages (5V/24V), and inspect backplane connections for corrosion or loosening.
   • For overload alerts: Reduce load on the affected output channel (ensure it does not exceed 2A resistive/1A inductive) or replace the SSR if damaged.
4. Maintenance:
   • Inspect the board’s electrical connections quarterly (vibration can cause backplane connector loosening) and clean contacts with approved electrical contact cleaner.
   • Replace the board every 10 years (per GE’s service life recommendations) to avoid premature failure in mission-critical turbine applications.
