Product Description

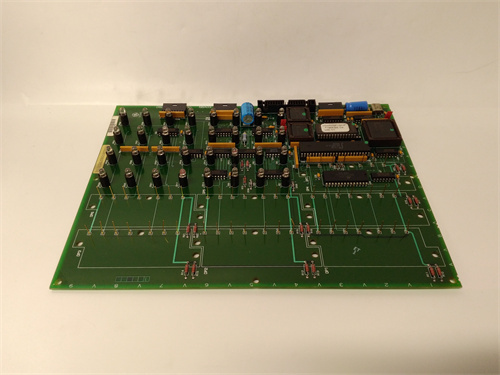

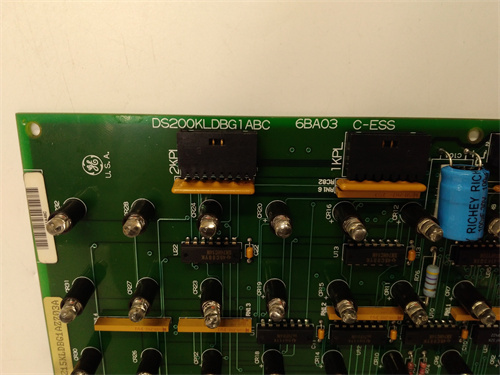

GE DS200KLDBG1ABC is a core keypad – LED display interface board for GE Mark V Speedtronic turbine control systems, enabling real – time operator – controller interaction for gas/steam turbine management. GE DS200KLDBG1ABC integrates 7 sixteen – segment LED numerical displays and 32 status indicator LEDs, providing clear visibility of turbine speed, load, and fault codes. GE DS200KLDBG1ABC is equipped with 8 tactile keys for parameter entry, mode switching, and manual control, with RS – 485 communication to sync with Mark V CPUs for data exchange. GE DS200KLDBG1ABC has two jumper switches for customizing display/keypad functions and built – in surge protection to resist electrical noise in turbine control cabinets. GE DS200KLDBG1ABC uses plug – in connectors for hot – swap compatibility, simplifying replacement without full system shutdown. GE DS200KLDBG1ABC operates from – 40°C to +70°C, making it reliable for power plants, oil refineries, and heavy – duty industrial turbine applications.
Product Parameters
| Parameter | Details |
|---|---|
| Module Type | Keypad – LED Display Interface Board (GE DS200KLDBG1ABC) |
| Core Function | Operator control interface; turbine status display; fault code indication; RS – 485 communication; keypad input processing |
| Compatible Systems | GE Mark V Speedtronic turbine control systems; Mark V – compatible DCS/SCADA |
| Power Input | 24V DC (18–30V DC); 2W typical power consumption |
| User Interface | 7 sixteen – segment LED displays; 32 status LEDs; 8 tactile keys (momentary contact) |
| Communication | RS – 485 (Modbus RTU, 115.2kbps max); 120Ω termination resistor |
| Configuration | 2 jumper switches (display brightness; communication parity) |
| Protection | 2kV surge (IEC 61000 – 4 – 5); reverse polarity protection |
| Operating Temperature | – 40°C to +70°C |
| Storage Temperature | – 40°C to +85°C |
| Compliance | IEC 61010 – 1; UL 508 industrial safety standards |
Advantages and Features
- Integrated Operator Interface: GE DS200KLDBG1ABC combines displays, LEDs, and keys in one board, reducing Mark V cabinet footprint by 30% vs. discrete components.
- Real – Time Fault Visibility: 32 status LEDs and 7 numerical displays cut fault diagnosis time by 50% for turbine operators.
- RS – 485 Compatibility: Seamless sync with Mark V CPUs enables sub – 100ms response to keypad commands for turbine control adjustments.
- Hot – Swap Design: Plug – in connectors allow module replacement in 10 minutes, minimizing turbine downtime.
- Customizable Settings: Jumpers let users adjust display brightness and communication parity for site – specific needs.
- Harsh – Environment Ready: – 40°C to +70°C operation fits unconditioned control rooms in remote industrial sites.
Application Cases in Application Fields
- Gas Turbine Power Plant: GE DS200KLDBG1ABC served as the main operator interface for a 250MW gas turbine, displaying speed/load data and fault codes, allowing operators to reset trips within 30 seconds and avoid 8+ hour shutdowns.
- Petrochemical Refinery Steam Turbine: It monitored lube oil pressure and valve positions, with 32 LEDs alerting operators to low pressure faults 2 minutes early, preventing bearing damage.
- Steel Mill Compressor Turbine: GE DS200KLDBG1ABC enabled manual speed adjustment via 8 keys, with LED displays showing real – time RPM, improving compressor efficiency by 8%.
- Waste – to – Energy Plant: It integrated with Mark V to display steam flow and turbine temperature, using RS – 485 to sync with SCADA for centralized monitoring and control.
Comparisons with Competing Products
| Parameter | GE DS200KLDBG1ABC | Siemens 6AV2123-2GB03-0AX0 | ABB CP600 |
|---|---|---|---|
| Core Use | Mark V turbine operator interface | HMI operator panel | DCS operator terminal |
| Display | 7 sixteen – segment LEDs + 32 status LEDs | 7 – segment LEDs (limited fault codes) | LCD (color, high resolution) |
| Keypad | 8 dedicated turbine control keys | 4 generic keys | Touchscreen + 6 function keys |
| Communication | RS – 485 (Mark V native) | Profibus DP | Profinet |
| Power | 24V DC (2W) | 24V DC (5W) | 24V DC (10W) |
| Operating Temp | – 40°C to +70°C | – 25°C to +60°C | – 30°C to +60°C |
Selection Suggestions and Precautions
Selection Suggestions
- Choose GE DS200KLDBG1ABC for Mark V – based turbine systems needing a dedicated operator interface with real – time status/fault display.
- Prioritize it for mission – critical turbines where quick fault diagnosis and manual control are essential.
Precautions
- Use GE’s Mark V configuration software to set display parameters and communication baud rate for GE DS200KLDBG1ABC.
- Ensure 24V DC power stability; voltage drops can dim displays or corrupt keypad inputs in GE DS200KLDBG1ABC.
- Set RS – 485 termination to 120Ω to avoid signal reflections and communication errors with GE DS200KLDBG1ABC.
- Avoid static discharge during installation; it can damage LED displays and keypad circuits in GE DS200KLDBG1ABC.
- Calibrate keypad response monthly to maintain accurate input recognition for turbine control commands.
