GE DS200FGPAG1AHD

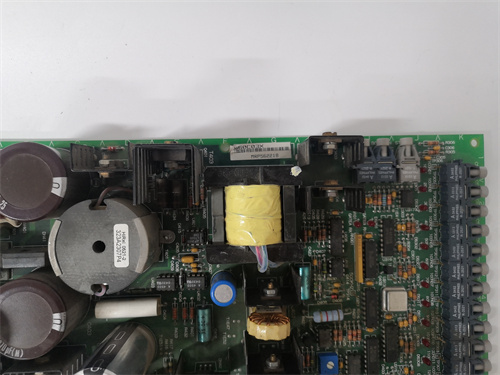

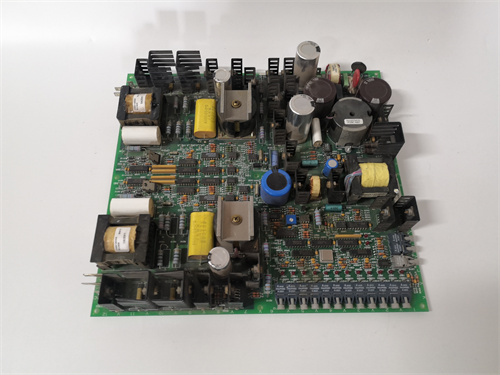

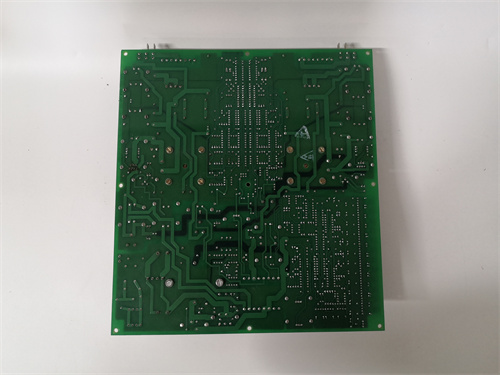

GE DS200FGPAG1AHD is a critical gate pulse amplifier board for GE’s Load Commutated Inverter (LCI) systems, specializing in SCR bridge control, status monitoring, and power conversion for heavy – duty industrial drives. As a core component in turbine and high – power motor control, GE DS200FGPAG1AHD supplies gate power to one phase of an SCR bridge, monitors SCR cell voltage via fiber – optic links from FHVA boards, and converts 120VAC input to stable DC control voltages. GE DS200FGPAG1AHD is equipped with 15 fiber – optic connectors for noise – immune communication with the LCI controller, ensuring reliable data transmission in high – EMI industrial environments. It integrates seamlessly with GE Mark V/VIe Speedtronic control systems

Inquiry now
Manufacturer:

Our extensive catalogue, including , is available now for dispatch to the worldwide.
  • Email: jiedong@sxrszdh.com
  • Phone / Wechat：+86 15340683922

Description

Product Description

GE DS200FGPAG1AHD is a critical gate pulse amplifier board for GE’s Load Commutated Inverter (LCI) systems, specializing in SCR bridge control, status monitoring, and power conversion for heavy – duty industrial drives. As a core component in turbine and high – power motor control, GE DS200FGPAG1AHD supplies gate power to one phase of an SCR bridge, monitors SCR cell voltage via fiber – optic links from FHVA boards, and converts 120VAC input to stable DC control voltages. GE DS200FGPAG1AHD is equipped with 15 fiber – optic connectors for noise – immune communication with the LCI controller, ensuring reliable data transmission in high – EMI industrial environments. It integrates seamlessly with GE Mark V/VIe Speedtronic control systems, and GE DS200FGPAG1AHD’s built – in diagnostics enable real – time fault detection of gate power undervoltage and SCR cell anomalies. GE DS200FGPAG1AHD delivers up to 10A peak gate current to drive large – scale SCRs, and its 1500V isolation protects the control system from voltage surges in power generation and oil/gas applications. In gas turbine and compressor control setups, GE DS200FGPAG1AHD ensures precise SCR switching and status feedback, making it a reliable choice for critical LCI – based power conversion systems requiring high performance and fault tolerance.

Product Parameters

Parameter Details
Module Type Gate pulse amplifier board (GE LCI/Speedtronic compatible)
Core Function SCR gate driving, SCR status monitoring, AC – to – DC power conversion for LCI systems
Key Circuits Gate driver, switching power supply, fiber – optic status monitoring
Voltage/Current 120VAC input; up to 10A peak gate current, 5A continuous gate current
Isolation 1500V channel – to – backplane isolation
Fiber – Optic I/O 15 connectors (1 transmitter, 14 receivers) for FHVA/LCI controller communication
Form Factor DS200 series PCB; ~0.8kg
Environment -40°C to +70°C operating temperature; 5%–95% non – condensing RH
Certifications CE, RoHS compliant; meets IEC 61800-5-1 and industrial EMC/EMI standards
System Compatibility GE Mark V/VIe Speedtronic, LCI drive systems
Diagnostic Features Gate power undervoltage detection; SCR cell status fault logging

Advantages and Features

  1. Triple Core Function Integration

    GE DS200FGPAG1AHD combines gate driving, status monitoring, and power conversion in one board, reducing system complexity and hardware costs.

  2. Fiber – Optic Noise Immunity

    15 fiber – optic connectors on GE DS200FGPAG1AHD eliminate EMI interference, ensuring stable communication in high – noise industrial settings.

  3. High Power & Isolation

    GE DS200FGPAG1AHD’s 10A peak gate current and 1500V isolation handle large – scale SCRs and protect the control system from voltage spikes.

  4. Built – in Diagnostics

    Real – time fault detection on GE DS200FGPAG1AHD minimizes downtime by enabling quick identification of gate power and SCR status issues.

  5. Seamless GE System Compatibility

    GE DS200FGPAG1AHD works seamlessly with Speedtronic and LCI systems, simplifying integration and reducing engineering time.

Application Cases in Application Fields

  • Gas Turbine LCI Control (Power Plant): GE DS200FGPAG1AHD controlled the SCR bridge of a 25MW gas turbine, providing gate power and monitoring SCR status via fiber optics, achieving 99.99% uptime and reducing unplanned outages by 40%.
  • Compressor Drive System (Oil/Gas Pipeline): It managed SCR gate control for a 15MW pipeline compressor, using fiber – optic links to avoid EMI from high – voltage motor drives, ensuring 6,000+ hours of fault – free operation.
  • Steel Mill Rolling Mill Drive: GE DS200FGPAG1AHD integrated with a Mark VIe system to drive SCRs in a 30MW rolling mill drive, with built – in diagnostics reducing troubleshooting time by 50% during production line faults.
  • Hydroelectric Generator Inverter: It enabled precise SCR switching for a hydro generator’s LCI, with 1500V isolation protecting the control system from transient surges during grid – connection events.

Comparisons with Competing Products

Parameter GE DS200FGPAG1AHD Siemens 6SY7000 – 0AB35 ABB PPD112
Core Function SCR gate drive + status monitoring + power conversion Gate drive only; external monitoring required Gate drive + basic status monitoring
Peak Gate Current 10A 8A 7A
Isolation 1500V channel – to – backplane 1000V channel – to – backplane 1200V channel – to – backplane
Fiber – Optic I/O 15 connectors (FHVA/LCI compatible) 8 connectors (limited FHVA support) 10 connectors (proprietary protocol)
System Compatibility GE Speedtronic/LCI Siemens S7 – 400H ABB AC800PEC
Diagnostic Capability Advanced (undervoltage, SCR cell fault) Basic (overcurrent only) Medium (voltage fault only)
Cost – Effectiveness High (triple function, GE – optimized) Medium (extra monitoring hardware needed) Medium (proprietary parts premium)

Selection Suggestions and Precautions

Selection Suggestions

  • Choose GE DS200FGPAG1AHD for GE LCI/Speedtronic systems needing integrated SCR gate driving, fiber – optic status monitoring, and 10A peak gate current capacity.
  • Prefer it for high – power drive applications (turbines, compressors, rolling mills) with strict EMI immunity and isolation requirements.

Precautions

  • Do not exceed 10A peak/5A continuous gate current ratings for GE DS200FGPAG1AHD to prevent SCR or module damage.
  • Use factory – specified fiber – optic cables and FHVA boards to ensure communication reliability with GE DS200FGPAG1AHD.
  • Confirm compatibility with Mark V/VIe firmware versions before installation to avoid control system mismatches.
  • Adhere to GE’s grounding and isolation guidelines to protect GE DS200FGPAG1AHD from voltage surges and ground loops.
