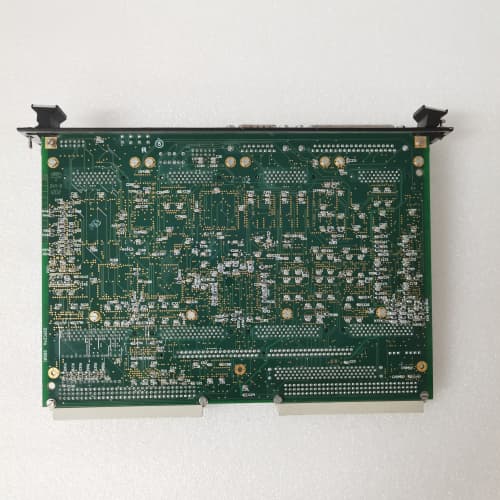

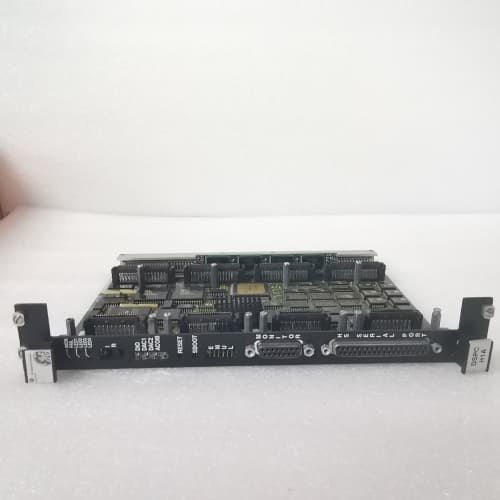

GE DS200DSPCH1ADA

Product Overview and Description

The GE DS200DSPCH1ADA is a high-performance servo drive control board designed for the Mark V and Mark VI series gas/steam turbine control systems. This critical component is part of the larger DS200 drive platform and functions as the intelligent control core for managing auxiliary servo motors and actuators within the turbine system. It processes control signals from the main turbine controller and executes precise positioning or velocity commands. The GE DS200DSPCH1ADA board integrates a Digital Signal Processor (DSP) for high-speed computation, feedback interfaces, and power stage control logic. Its role is essential for functions like fuel valve modulation, inlet guide vane (IGV) control, and bleed valve actuation, which directly impact turbine efficiency, load response, and safety.

Product Parameters

• Board Type: Servo Drive Control Board (DSP-based).
• Compatibility: GE Mark V, Mark VI Turbine Control Systems (part of the DS200 drive family).
• Core Processor: Dedicated Digital Signal Processor (DSP).
• Control Modes: Supports position, velocity, and torque control modes for servo applications.
• Feedback Interfaces: Typically designed to accept inputs from resolvers, encoders, or LVDTs for closed-loop control.
• Communication Interface: Integral part of the drive’s backplane, communicating with the turbine’s <I>O</I> and control modules via high-speed serial links.
• I/O Signals: Includes analog command inputs, digital enable/disable signals, and status/fault output contacts.
• Power Stage Interface: Generates PWM (Pulse Width Modulation) signals to control the associated DS200 power output modules (IGBTs).
• Environmental Rating: Designed for industrial/utility environments.

Advantages and Key Features

1. High-Speed Precision Control: The dedicated DSP on the GE DS200DSPCH1ADA provides the computational power necessary for fast, accurate, and deterministic control of servo loops, which is critical for dynamic turbine response.
2. System Integration: It is natively engineered for seamless integration within the Mark V/VI architecture, ensuring reliable communication with the turbine controller (TMR, etc.) and simplifying system configuration and diagnostics.
3. Robust Feedback Handling: The board is designed to interface directly with rugged feedback devices like resolvers, which are preferred in high-vibration, high-temperature turbine environments for their reliability over optical encoders.
4. Comprehensive Diagnostics: The GE DS200DSPCH1ADA continuously monitors its own status, feedback integrity, and command following, reporting faults back to the main controller for immediate annunciation and protective action.
5. Proven Reliability: As a core component in critical turbomachinery controls worldwide, this board is built to demanding industrial standards for long-term, fail-safe operation.

Application Cases in Various Fields

• Power Generation (Gas Turbines): Precisely controlling fuel gas control valves (GCVs) or liquid fuel valves to regulate energy input and maintain stable combustion under varying load demands.
• Power Generation (Steam Turbines): Actuating main steam stop valves, governor valves, or extraction valves to control steam flow and turbine speed/power output.
• Industrial Turbomachinery: Managing inlet guide vanes (IGVs) on compressors or mechanical drive turbines to optimize efficiency and prevent surge conditions.
• Aeroderivative Turbines: Controlling critical fuel metering and actuator systems in mobile or peaking power plants that use aircraft engine-derived technology, where the GE DS200DSPCH1ADA provides the necessary precision.

Comparison with Competing Products

The GE DS200DSPCH1ADA is a proprietary component within GE’s turbine ecosystem. Direct competitors would be servo control cards from other major turbine OEMs like Siemens (Tri-Sen, T3000 system components) or Woodward (NetCon, Micronet). Compared to a generic, standalone industrial servo drive, the DS200DSPCH1ADA is not a stand-alone unit; it is deeply integrated into the turbine’s protective control logic and safety systems (triple modular redundancy, etc.). Its primary advantage is this certified, vendor-supported integration, which is non-negotiable for critical turbine control. Its “competition” often arises during turbine upgrades or retrofits, where entire control systems may be replaced with modern PLC-based solutions. For spare parts and like-for-like replacement in existing GE turbines, the GE DS200DSPCH1ADA is the specified and necessary component.

Selection Suggestions and Precautions

• Selection Advice:
  • Exact Replacement: This board should only be selected as a direct replacement for a failed unit in an existing GE Mark V or Mark VI turbine control system. Verify the exact drive assembly and firmware revision compatibility.
  • Drive Assembly Context: Identify the specific DS200 drive chassis (e.g., DS200DCFBG1A, DS200SDCCG1A) from which the board was removed, as configuration may be tied to the assembly.
  • Firmware Considerations: New/replacement GE DS200DSPCH1ADA boards may require firmware to be loaded or configured to match the existing turbine control application.
• Important Precautions:
  • Critical Safety System: Turbine control is a safety-critical application. Work must be performed by qualified personnel following strict site safety and lockout/tagout (LOTO) procedures.
  • Electrostatic Discharge (ESD): This is a sensitive electronic board. Handle using proper ESD precautions (wrist strap, anti-static bag, grounded workstation).
  • Configuration Backup: Before removing a faulty board, ensure all possible drive parameters and configuration settings from the turbine controller are documented or backed up.
  • Functional Testing: After installation, the servo loop and its associated actuator must be functionally tested according to the turbine’s commissioning procedures before returning the system to service.
  • Obsolescence Management: As part of a legacy platform, ensure long-term support plans are in place. Sourcing authentic, unused or certified refurbished boards like the GE DS200DSPCH1ADA from reputable suppliers is crucial.
